16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output

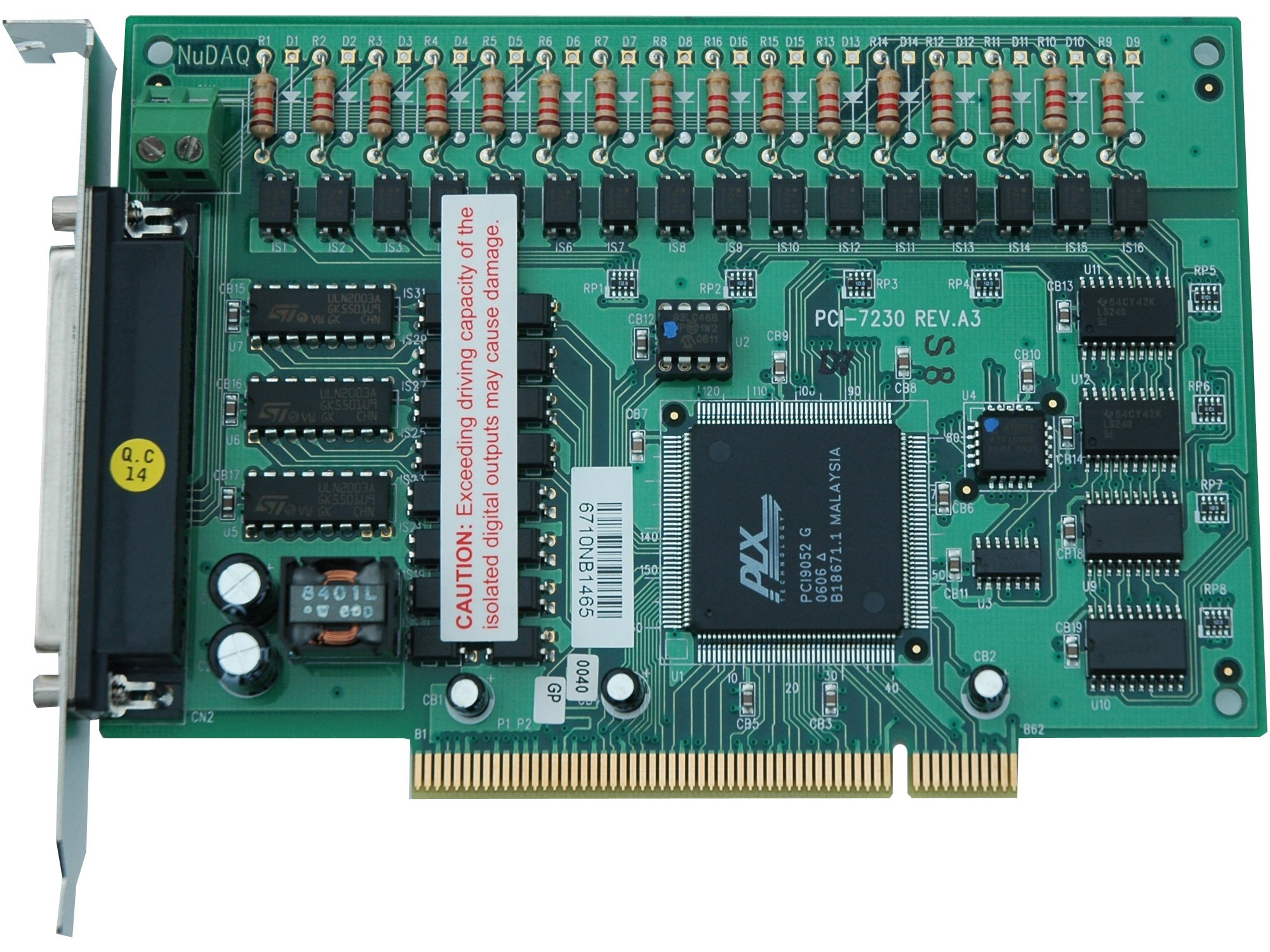

OPTO16I16PCI (ADLINK"s PCI-7230) is a 32-CH isolated input and/or output cards which provide a 2,500 V optical isolation protection. The wide input range of the OPTO16I16PCI makes it easy to sense the status of external devices. The non-polarity characteristic is suitable for a wide variety of industry applications. The OPTO16I16PCI device also feature a wide output range from 5 to 35 V, which is suitable for relay driving and industrial automation applications. The OPTO16I16PCI also provide two interrupt sources on digital input chanenels.
Plintkort med skruvplintar
DB37 hane / hanekabel på 1,8 m ingår.
För DIN-skena montering
103 x 85 x 50 mm (B x L)
med tillståndsdetektor på alla 32 ingångar
Optoisulerade ingångar - 2,5 kV - Gemensam ram
Logik: Låg 0-3,2VDC, High: 3.5 - 24VDC
Support a 32-bit 3.3 V or 5 V PCI bus
32-CH TTL digital inputs and 32-CH TTL digital outputs
Up to 12 MB/s transfer rate
Bus mastering DMA for both digital inputs and outputs
On-board programmable timer pacer clock
Supports hanedshaking digital I/O transfer mode
Multiple programmable interrupt sources
Compact, low-profile PCI size PCB
Slav kort till REL8OPT8PCI
Slave kort til REL8OPT8PCI
Supports a 32-bit 5 V PCI bus
8-CH relay outputs on PCI-7250
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI
Reläerna behålla sin ställning trots att strömmen till kortet är bortkopplad.
Supports a 32-bit 3.3 V or 5 V PCI bus
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchaneged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Chanege-of-status (COS) interrupt
Board ID
