PCI

100 Mbit PCI fibernetkort med SC - kontakt

Slau försäljing

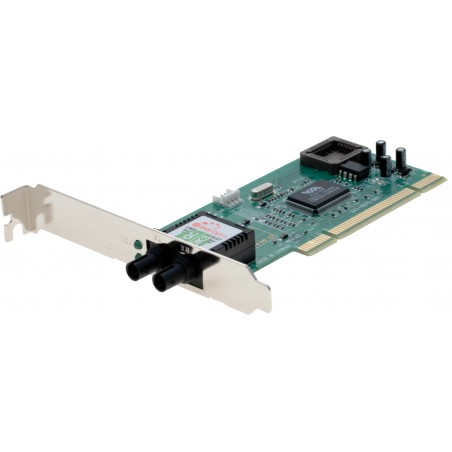

100 Mbit / s Net Card för fiber
Med St Connectors
PCI 3.3 / 5 V
32BIT

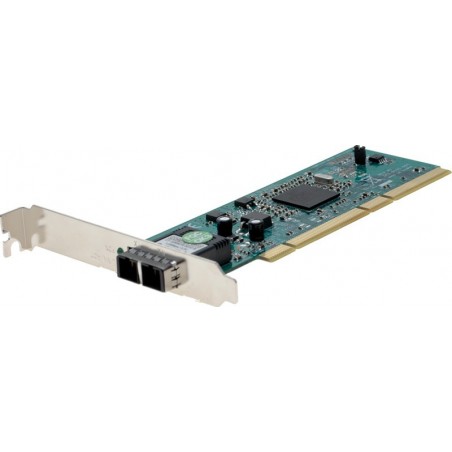

1000 Mbit / s nätverkskort för fiberoptiska m. SC-kontakt 3,3 V PCI, 64-bitars

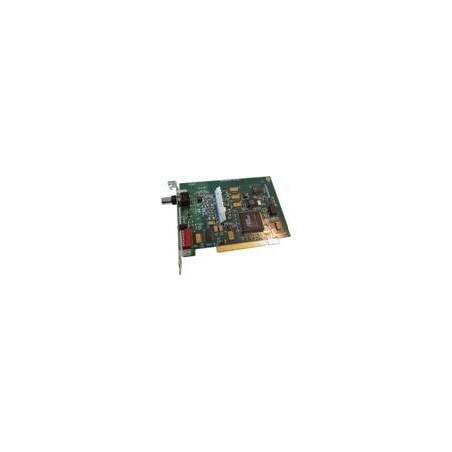

Interfaces ARCNET with PCI
Utilizes COM20022 ARCNET controller
Enhaneced software capabilities over earlier generation ARCNET controllers
Set one of 255 possible station addresses with node address switch or application software
Automatic configuration of I/O and interrupt
High-speed I/O access to the COM20022
Supports coaxial and twisted-pair cabling including EIA-485
Variable data rates up to 10 Mbps utilizing the various EIA-485 transceiver options
Suitable with all Contemporary Controls MOD HUB and AI Series active hubs
CE Mark

Integrated 10/100/1000 transceiver
Auto-Negotiation with Next Page capability
Supports PCI rev.2.3, 32-bit, 33/66MHz
Supports pair swap/polarity/skew correction
Crossover Detection & Auto-Correction
Wake-on-LAN and remote wake-up support
Microsoft® NDIS5 Checksum Offload (IP, TCP, UDP) and largesend offload support
Supports Full Duplex flow control (IEEE 802.3x)
Fully compatible with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Supports IEEE 802.1P Layer 2 Priority Encoding
Supports IEEE 802.1Q VLAN tagging
Serial EEPROM
3.3/1.8/1.5V signaling, 5V PCI I/O tolerant
0.15µm CMOS process
Transmit/Receive FIFO (8K/64K) support
Supports power down/link down power saving
Supports PCI Message Signaled Interrupt (MSI)
