Fiber - RS232/422/485

Fiber - RS232/422/485

Det finns 8 produkter.

Visar 1-8 av 8 objekt
  • RS232 til optisk fiber...

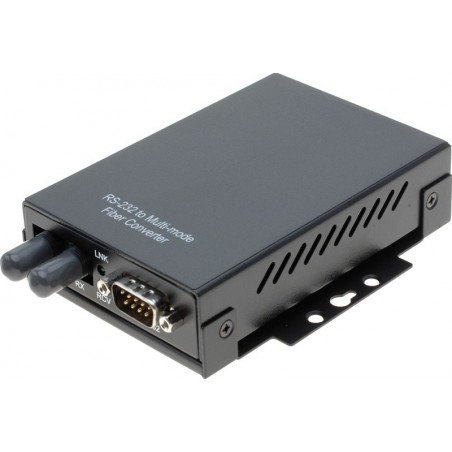

    RS232 til optisk fiber MM,DB9 han Max. 1.7Km /62,5um multimode, 820nm

    max. data transfer rate 115kb/s
    56kb/s for signal RI
    max. line length 1 700m / 62,5um
    Fiber Optic line multimode, 820nm
    full RS232 - RxD, TxD, DTR, DSR, RTS, CTS, DCD, RI or 5x RxD, TxD
    RS232 signal connection DCE/DTE
    transfer mode time multiplex, full duplex
    connector RS232 screw + DB9M
    connector fiber optic ST, option SMA, SC, FC
    overvoltage (soft) protection - supply 600W/1ms
    polarity inversion protection - supply diode bridge
    optical indication (LED) red - PWR
    yellow - INPUT signals
    green - OUTPUT signals
    power supply 10-30V DC
    9 - 24V AC
    power consumption max. 2W
    dimension 76 x 55 x 115 mm

    Pris 728 SEK
    Artikelnummer CNV232FIBER-DB9
    Status
