PC104

PC104
50-PIN
Stack Trought PC/104

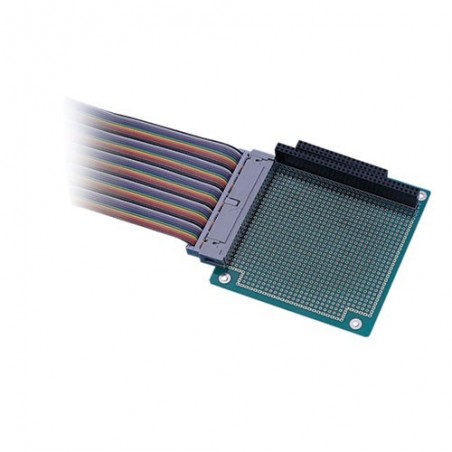

Universal Expansion Modul

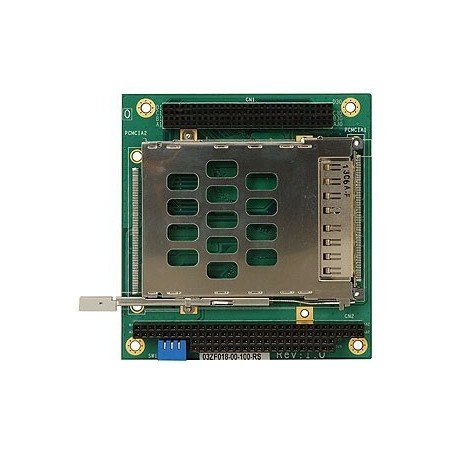

PCI-104 Card Bus PCMCIA-modul, PM-1054L

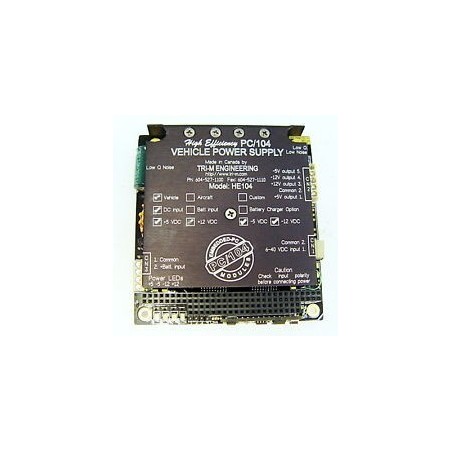

25W modul med 5V/12V/-5V/-12V, TRI-M V-104-512-16​25 Watt output power
2 standard models: +5V only, +5V & +12V
Optional -5V & -12V outputs
5000W transient protection
Low quiescent current
RoHS version available
Low cost​Part Number Description
V104-5-16 25 Watt, +5V@5A, (0 to +70C)
V104-512-16 25 Watt, +5V@5A, +12V@1A, (0 to +70C)

ICOP-0071

Dubbel RS422/485-modul, Axiom AX20445B

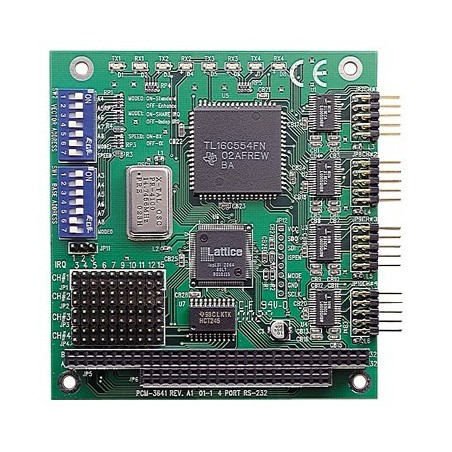

4-port RS232 til PC104 High-SpeedModule

Transmission speeds up to 460 kbps
Shared IRQ settings for each of 4 RS-232 ports
Standard PC ports: COM1, COM2, COM3, COM4 compatible
Supports Windows 98/2000/XP
Supports WinCE 3.0, 4.2
Powerful and easy-to-use utility

Utilizes COM20020 ARCNET® controller
Interfaces ARCNET with PC/104™ bus computers
I/O-only mapping reduces bus contention problems
No requirement for wait-state arbitration
Enhaneeeced software capabilities over earlier generation ARCNET controllers
Node address switch selects one of 255 possible station addresses
Variable data rates up to 5 Mbps
Supports coaxial, fiber optic and twisted-pair cabling including EIA-485
Suitable with all Contemporary Controls MOD HUB and AI Series active hubs
CMOS design for low-power consumption

Intel Atom D510 1.66GHz
2GB RAM onboard
2x ethernet
254x59x152mm
6x USB 2.0 (not all cabled out)
8x RS232 (not all cabled out)

Input Voltage DC: 9 ... 36 V, 16 W
OS Support:  Windows CE 6.0, Windows XP, Windows 7, Windows Embedded Standard 7, Windows Embedded Standard 2009, Linux OS, QNX, WIN10 iot
