Slav kort till REL8OPT8PCI
Slave kort til REL8OPT8PCI
Supports a 32-bit 5 V PCI bus
8-CH relay outputs on PCI-7250
8-CH isolated DI
On-board LED indicators for relay status
On-board relay driving circuits
Relay output stats read back
On-board low-pass filtering for DI

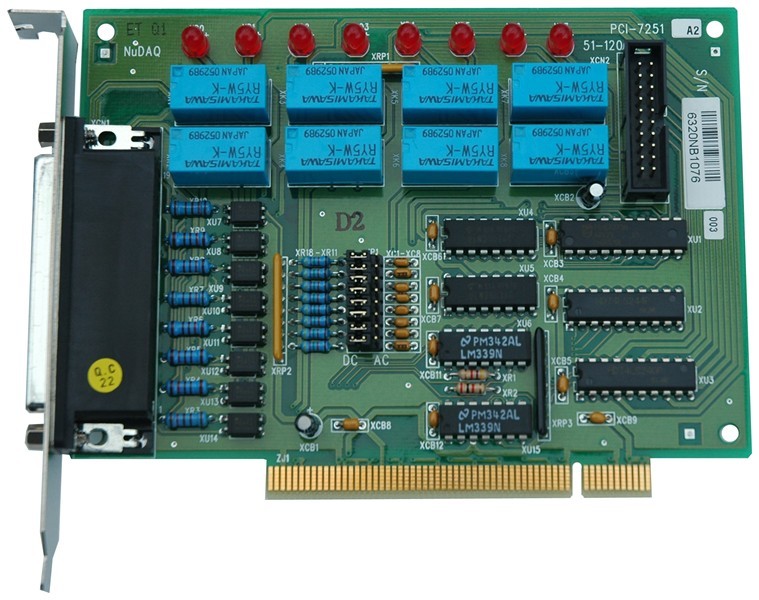

REL8OPT8E-PCI (ADLINK's PCI-7251) provide 4-CH SPDT (Form C) & 4-CH SPST (Form A) relay outputs and 8-CH isolated digital inputs. The status of each relay output is represented by an onboard LED. When the relay is in SET condition, its corresponding LED will turn ON, and on the contrary, it is OFF. All digital input chanenels are nonpolarity, optically isolated, and may be set to use RC filter or not. The devices are suitable for collecting digital inputs in noisy environments. The REL8OPT8E-PCI is an 8-CH relay outputs and 8-CH isolated DI extension card of the PCI-7250. All the I/O functions of REL8OPT8E-PCI are the same as those of the PCI-7250. The REL8OPT8E-PCI has to be connected with PCI-7250 and the bus interface is controlled by the PCI-7250. Up to three REL8OPT8E-PCI cards can be connected to one PCI-7250, therefore, expanding the PCI-7250's DIO from 8 DIO to maximum 32 DIO.
Plintkort med skruvplintar
DB37 hane / hanekabel på 1,8 m ingår.
För DIN-skena montering
103 x 85 x 50 mm (B x L)
8 av de digitala utgångarna kan dra upp till 500 mA per. kanal
32-CH optical-isolated digital input
32-CH optical-isolated digital output
Isolation Voltage: 3750 Vrms (Using external power)
Card ID: Jumper setting for multi-board identification
Open Collector: 8-chanenel - 500mA, Current Sinking, NPN
Open Collector: 24-chanenel - 100mA, Current Sinking, NPN
Reläerna behålla sin ställning trots att strömmen till kortet är bortkopplad.
Supports a 32-bit 3.3 V or 5 V PCI bus
16-CH latching SPDT relay outputs
Power saving on relay actuation
Output status unchaneged when power-off
On-board LED indicators for relay status
16-CH isolated DI
Chanege-of-status (COS) interrupt
Board ID
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI bus
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
PCI 10 kanal 16 - bitars räkna kort
Supports a 32-bit 5 V PCI bus
On-board four 82C54 programmable timer/counter chips
10-CH independent 16-bit down counters
1-CH 32-bit cascaded timer
Four programmable clock sources for each timer/counter
Programmable de-bounce filter for external clock & external interrupt inputs
8-CH TTL DI & 8-CH TTL DO
