USB till 1 x RS232-adapter - galvaniskt isolerad. Sänder TxD, RxD och GND. Baudhastighet 300 - 921 kbps
Få en COM-port på datorn via USB-porten
USB till RS232, galvanisk isolering
Sänder endast TxD, RxD och GND
Stöder Win10
USB till RS485-omvandlare, isolerad

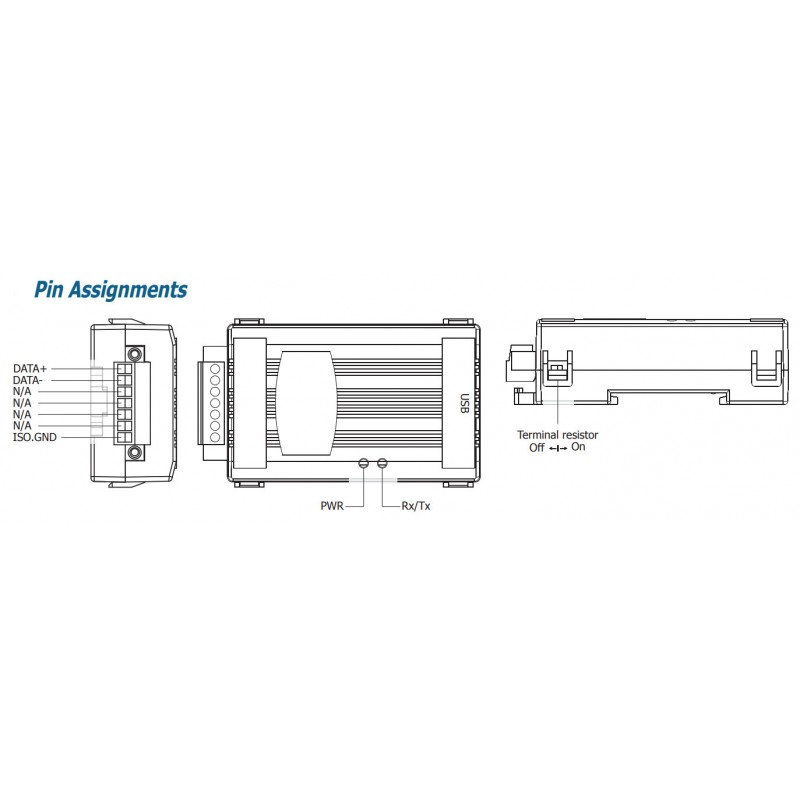

1 x RS485 7-polig terminalblock
1 x USB-B
Hastighet: 300 ~ 115200 bps
För USB 1.1 / 2.0 (High Speed)
2500 VDC-isolering på RS485
till DIN-skena montering
Ingen extern strömförsörjning krävs
Input +5 VDC från USB-port
OS-stöd WIN 98 / ME / 2000 / XP (32 / 64- bit) / Vista (32/64-bitars) / 7 (32/64-bitars) / 8 (32/64-bitars) / 10 / Linux
Driftstemperatur. -25 ° C ~ +75 ° C
USB-kabel (1,8m) ingår

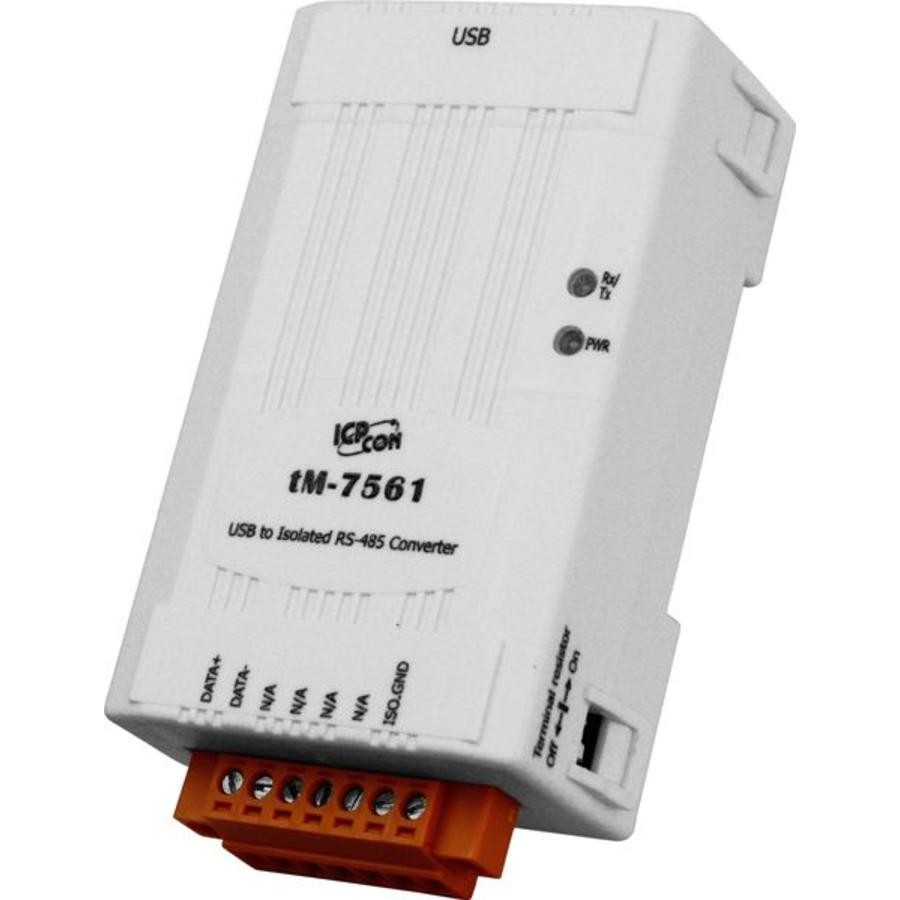

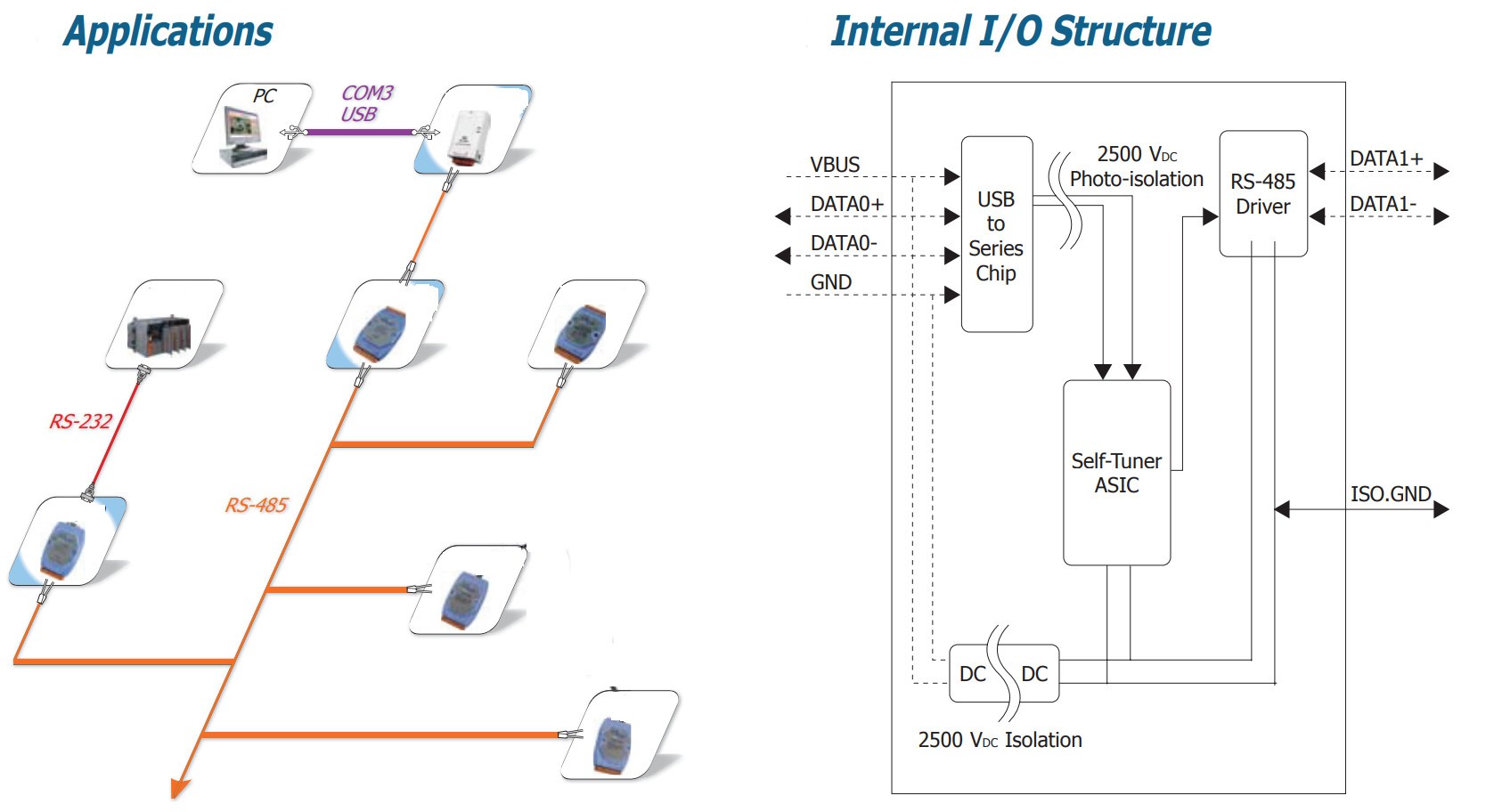

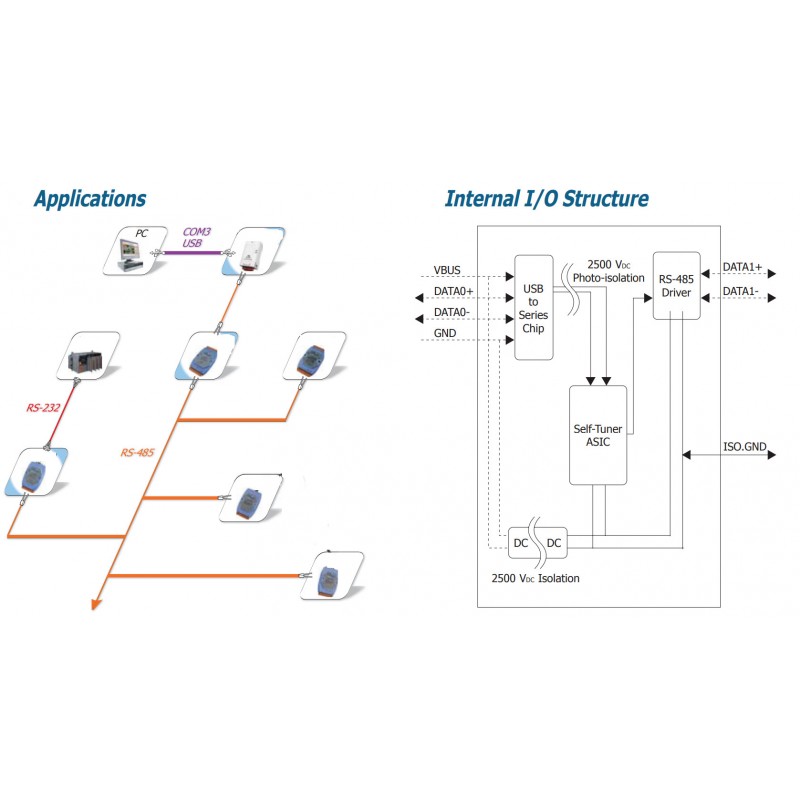

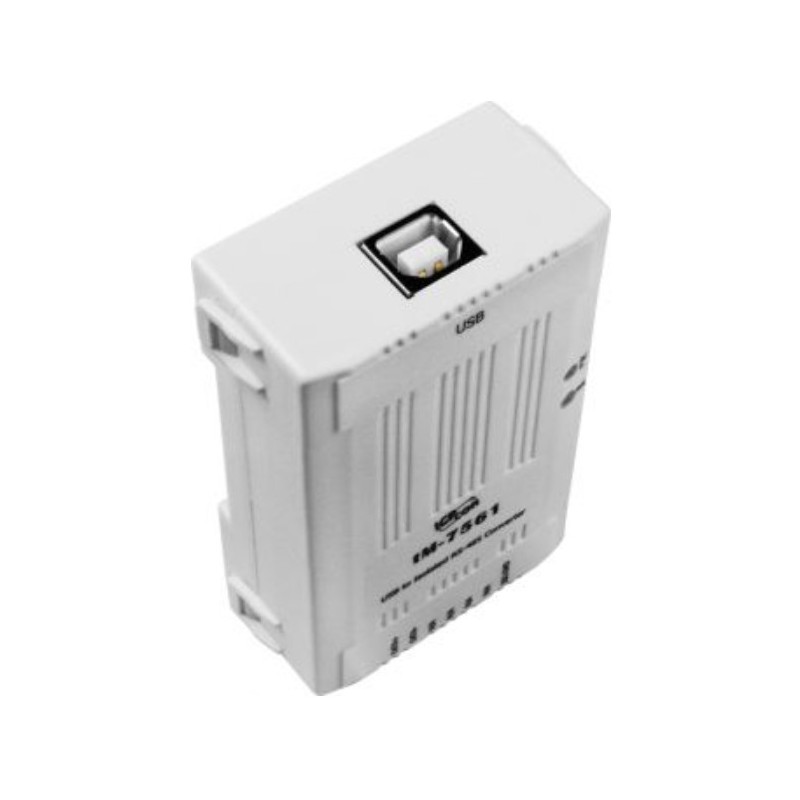

The tM-7561 is a cost-effective USB to RS-485 converter. Connecting the tM-7561 to a PC, you get one RS-485 port that allows you to access RS-485 devices through the USB interface. Like the I-7520, the tM-7561 contains "Self-Tuner" chip auto-tunes the baud rate and data format to the RS-485 network. The tM-7561 module derives its power from the USB port and doesn't need external power adapter.
Få en COM-port på datorn via USB-porten
USB till RS232, galvanisk isolering
Sänder endast TxD, RxD och GND
Stöder Win10
4-Port RS-232/422/485 USB till seriell adapter, metallkapsling med förlängningskabel . För DIN-skena.
Plug & Play
DB37 förlängningskabel till 4 DB9 seriella portar
Metallskåp .
4 x RS232 / 422/485 portar
Hög hastighet serieport överföringshastighet upp till 921.6K bps
128 byte sändnings-FIFO och 384 byte FIFO modtage
Connect RS232/RS422/RS485 equipment to USB port
Baudrate up to 921,6 kbit/s
Select type of port by DIL switch
Supports Win7/8/10, MAC
USB till 1 x RS422 / RS485, med skruvterminal
Maxhastighet upp till 921,6 Kbit/s - RS422 / 485 port
Välj typ av port från DIL-switch och bygel
Standardinställd på RS422
Stöder Win7, 8/8.1, 10, 11, Server 2008 R2, Server 2012 R2, 2022
(WHQL-certifierad)
