21.5" Medical Premium Windows Touch Panel PC Celeron,I3,I5,I7,16:9, PCAP touch, Medical Certificate

CPU support Celeron, i3, i5, i7 Gen.8
Max. 32GB RAM
21.5” True-Flat
16:9 Ratio
1920x1080 pixel
PCAP touch USB
Wifi
BT
2 x RJ45
4 x USB3.0
1 x RS232, 1xRS232(5v/12v support)/422/485
1 x HDMI, 1 x DVI-D
Ultra Slim 49.9mm with 3 Pieces Design
Fanless & Front Panel IP65
Simple Installation & Easy Assembly
Industrial Quality & Chic Appearance
Support TPM and Intel vPro (Optional)

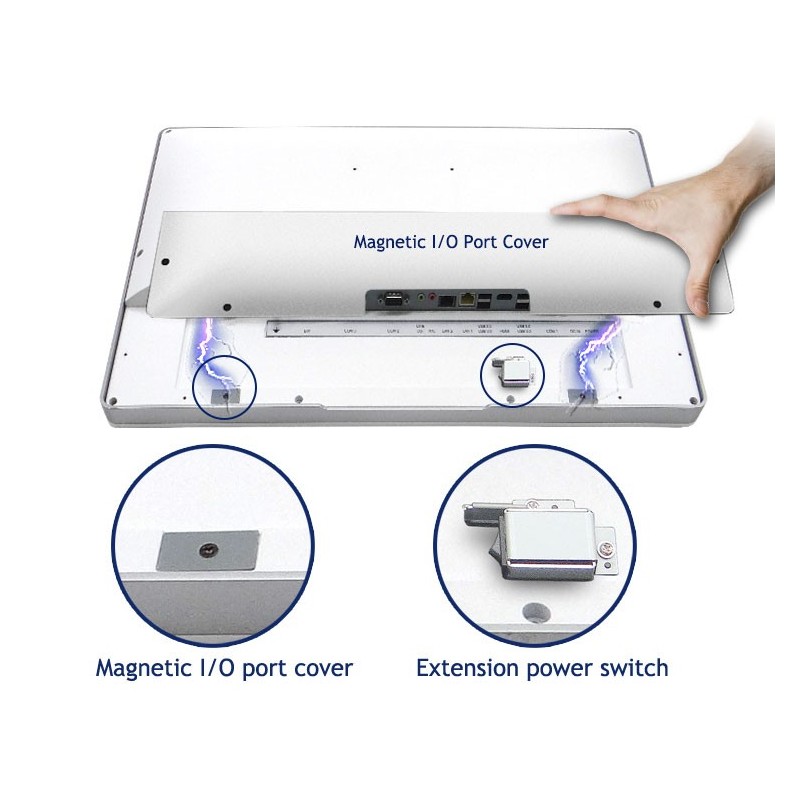

Magnetic I/O Port Cover For Easy Maintaining ( Optional)
Extensional Power Button (Optional)
TPM
9~36Vdc
543x334x49.9 mm
OS support: Win10, Win 11, Linux

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number IPP21.5MEDIC
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Core i5 Processor: i5-8365UE vPro Intel Core i7 Processor: i7-8665UE vPro (optional) Intel Core i3 Processor: i3-8145UE (optional) Intel Celeron Processor : 4305UE (optional)
USB 4 x USB3.0
Farve Black, Silver, Black / White, Silver, White, need to be specified when ordering
Approval FCC Class B, CE Mark, CB, ICE60601
Ethernet 2x RJ45, Intel I219LM (Phy); Intel I211 (PCIe)
Forsyning support 9-36V DC-in, Power adapter 90W/19V, 3-pin
Grafik Intel UHD
Hukommelse 2 x S.O.DIMM, DDR4 2400MHz, 8GB (Up to 32GB)
IP-Tæthed IP65 on the front
Kamera 2M WebCam (HD webcam, USB interface)
Luftfugtighed Operating 20% - 80% RH non-condensing
Lyd Realtek ALC662VDO-GR
Mål og vægt 7.6-8 kg (net weight)
Opløsning 1920 x 1080 ; 16:9
OS SUPPORT Windows 10, Windows 11, Linux

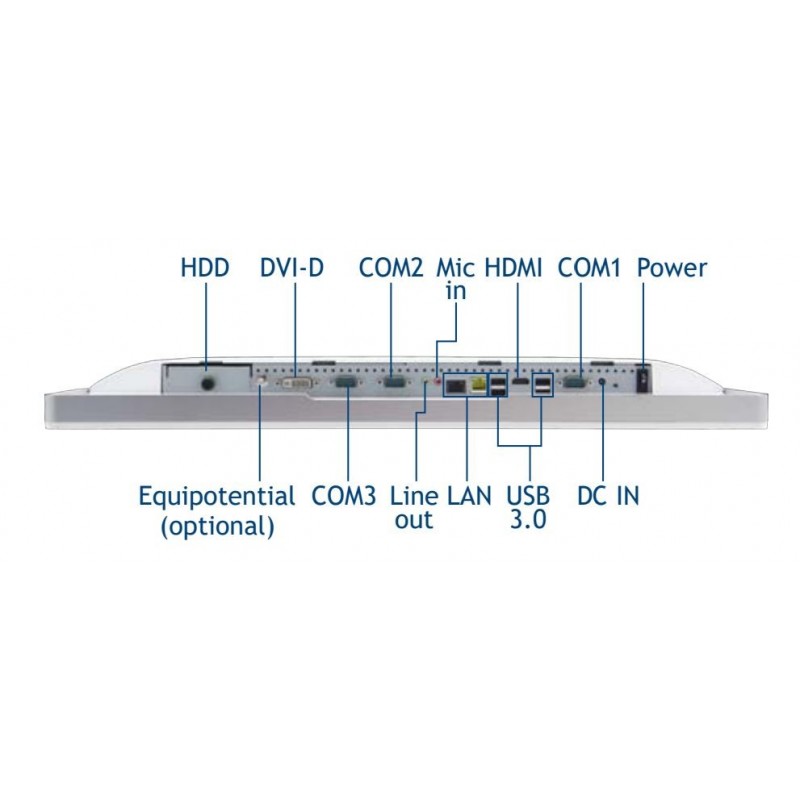

Porte 1 x DB9 (RS232), 2 x DB9 (RS232/422/485)-(RS232 support 5V/12V)
Skærm 21.5" LVDS I/F
Touch True-Flat PCAP touch, USB I/F
Udgange 1xHDMI, 1xDVI-D
VESA standard Vesa mount 100x100
Dimensioner 543 x 334 x 49.9 mm

Smart Healthcare Solution
Bringing diagnostics, health records to the digital world offers a chance to improve efficiency and satisfaction.

21.5” Medical Grade Touch All In One System Panel PC
Intel® Whiskey Lake i5-8365UE vPro
-Medical Anti-Bacterial Materials
-Medical Power Adapter
-Electrostatic Discharge Protection
-Medical Certificate
