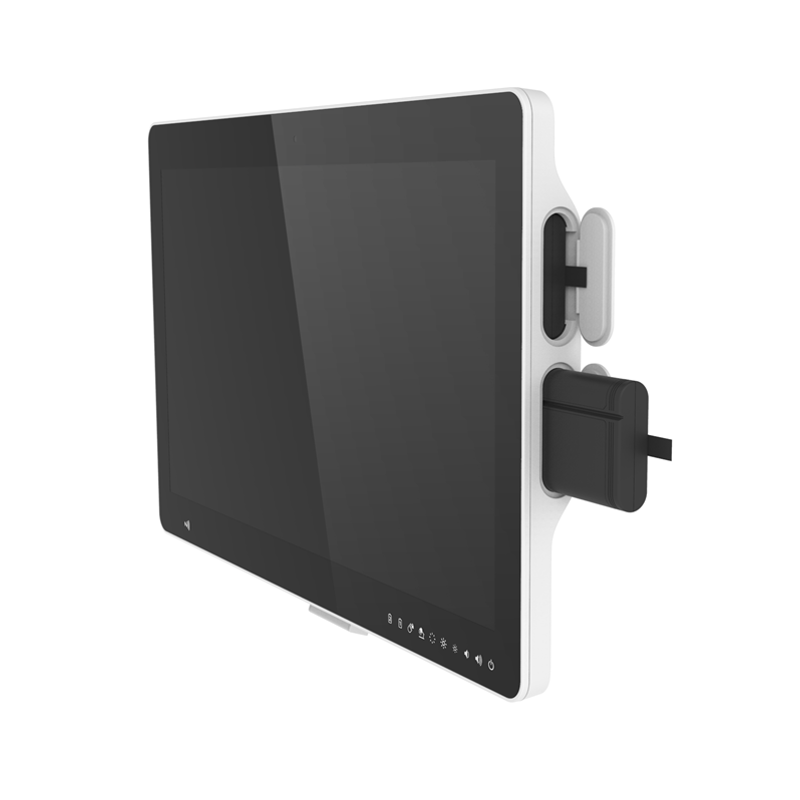

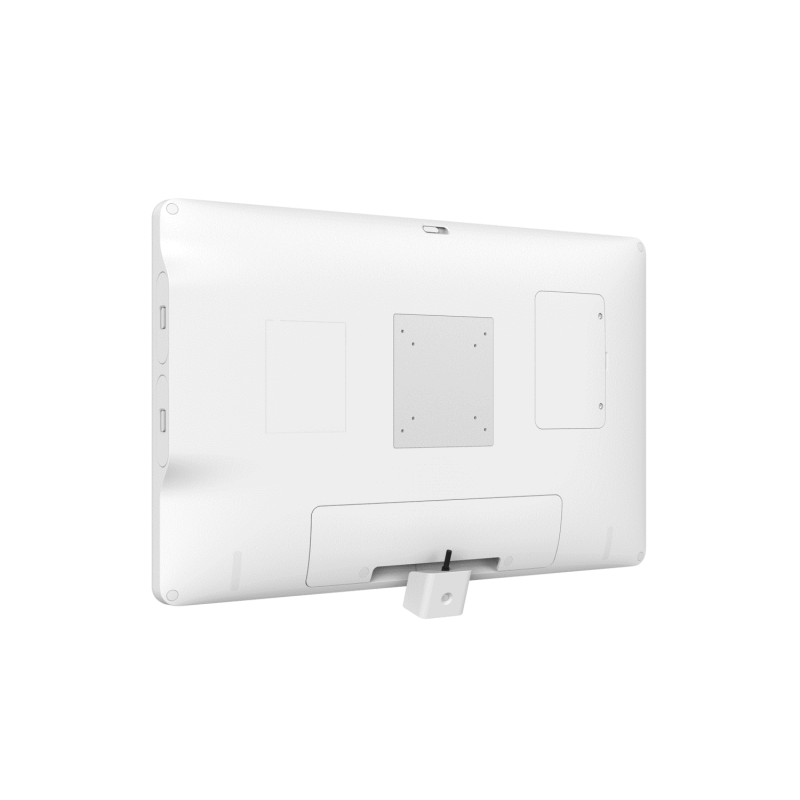

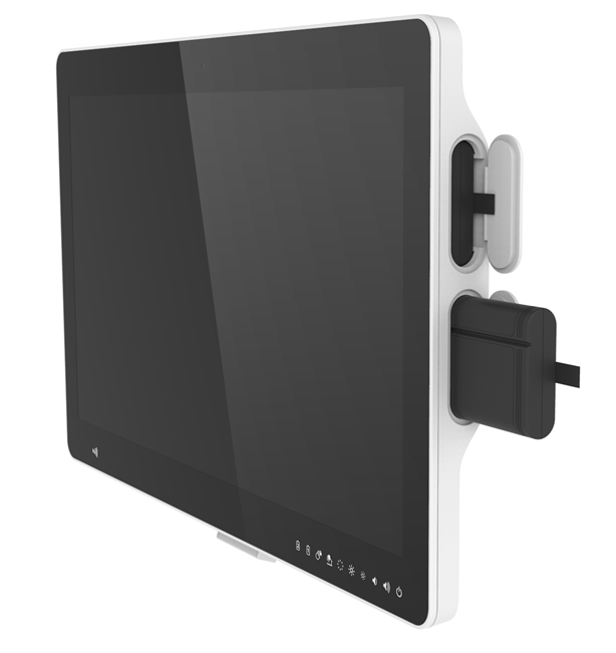

24 "pcap multi-touch fanless panel PC, 7th Generation Intel® Core Kaby Lake i5-7300U Processor
Chipset integrated in the processor (SOC)
Full HD
1920 x 1080 resolution
Pixel: 274,5x274,5
Contrast: 3000
Nits: 250
Front IP65 < br> 2 x 260pin SODIMM socket
up to 32GB per slot (DDR4 SDRAM 2400) Pattern 2 | 1 x 2230 1 x
mPCIe with SATA or mSATA PCIE x1 | 1 x 2.5 "Drive Bay (storage) to 4 x USB 3.0
1 x SATA III
1 x HDMI Kabel 1 x DisplayPort (DP)
2 x RJ45
Audio chipset: Realtek ALC892
10 / 100/1000 Base-Tx GbE Compliant
Supply Voltage: DC + 19-24V
Operating temperature: 0-40 degrees
Weight: 6.9 kg (without battery and adapter)
Dimensions: 538.6 x 342.6 x 45.2 mm | OS support: Win 10 64 bit / Linux
Call +45 56 66 20 20 for price
Quantity
close
Specifications
| Chipset | integrated in Processor (SOC) |
|---|---|
| Operating Temp. | 0°C ~ 40°C |
| Batteri | Optional Smart Battery Pack 14.4V 6900mAh, 99.4Wh |
| Chok/Vibration | With SSD/mSATA : 1.5Grms, IEC 60068-2-64, Random, 5 ~ 500Hz, 30min/axis, With CF/SSD : 10Grms, IEC 60068-2-27, Half Sine, 11ms |
| Controller | touch controller: EETI EXC84H5680 |
| Ethernet | Chipset: 1 x Intel® I211AT, 1 x Intel® I219LM |
| Forsyning | DC in +19V~24V |
| Hukommelse | 2 x 260pin SODIMM socket up to 32GB Per Slot DDR4 2400 SDRAM |
| I/O | 4 x USB 3.0, 1 x SATA III, 1 x HDMI, 1 x Display port, 1 x RJ45 |
| Kamera | 5.0M CMOS with auto-focus |
| Kontrast | 250 cd/m², 3000 |
| LCD | Full HD |
| Luftfugtighed | 0% ~ 90% Relative Humidity, Non-condensing |
| Lyd | Chipset: Realtek ALC892 |
| Lyskilde | LED backlight |
| Læser | Vinkel 89(U), 89(D), 89(L), 89(R) |
| Montering | Optional Mounting Kit (VESA 75 x 75, 100 x 100) |
| Netværk | 10/100/1000 Base-Tx GbE compatible |
| Pixels | 274.5×274.5 |
| Skærm | Monitoring System Temperature & Voltage |
| Touch | Projective Capacitive |
| Udvidelser | 1 x M.2 2230 1 x mPCIe with SATA or PCIE x1 mSATA |
| Watchdog | H/W Reset, 1sec. ~ 65535sec. and 1sec./step |
| WiFi/WLAN | Optional WiFi 1T1R 802.11b/g/n/ac/ BT4.0 |
| Weight | 6.9kg (Uden batteri og adapter) |
| Dimensioner | 539.6 x 342.6 x 45.2 mm |
This Medico approved panel PC can support two hot swappable batteries for real mobility. The system has advantage of Intel® Kaby Lake platform to provide a balance of performance and features. Specially designed for the transport means is IPP24MEDICA able to help with daily tasks in health institutions for use by professional health workers. With built-in hot swappable batteries and four slots charging tray, you can be sure of a stable panel PC.
Can be bought:
Optional Barcode Scanner
Optional Built-in privacy screen
Optional 5.0M auto-focus camera with cover
Opitonal 2 x 6900mAh Hot swappable batteries
Optional 4 Slots Charging Bay
