10.1" Panel PC full IP66/IP69K celeron 2930 4GB RAM, 32GB MLC SSD

10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number IPP10.1IP65F2
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Celeron N2930 2M chache, 1.83GHz
USB 1 x M12 8 pin USB 2.0 waterproff cover and chain
Operating Temp. 0~50oC
Antal farver 16.7M
Approval CE/FCC class A
Ethernet 1 x M12 8 pin for LAN with waterproff cover and chain
Forsyning 9~36Vdc , power consuption 18Watt
Hukommelse Onboards 4GB DDR3L SDRAM, Max 8GB(option)
LCD 10.1"TFT 1280x800
Montering VESA mount 75x75, Option Yoke Mount
OS SUPPORT Windows embedded 7, 8.1 and windows 10 IoT ENT LTSB
Porte 1 x M12 8 pin COM1, RS232/422/485 default RS232 with waterproff cover and Chain
RFID Optional on front
Synsfelt 170(H)x170(V)
Touch Resistive Touch USB, light transmission 80%. Option GLASS and Projected touch

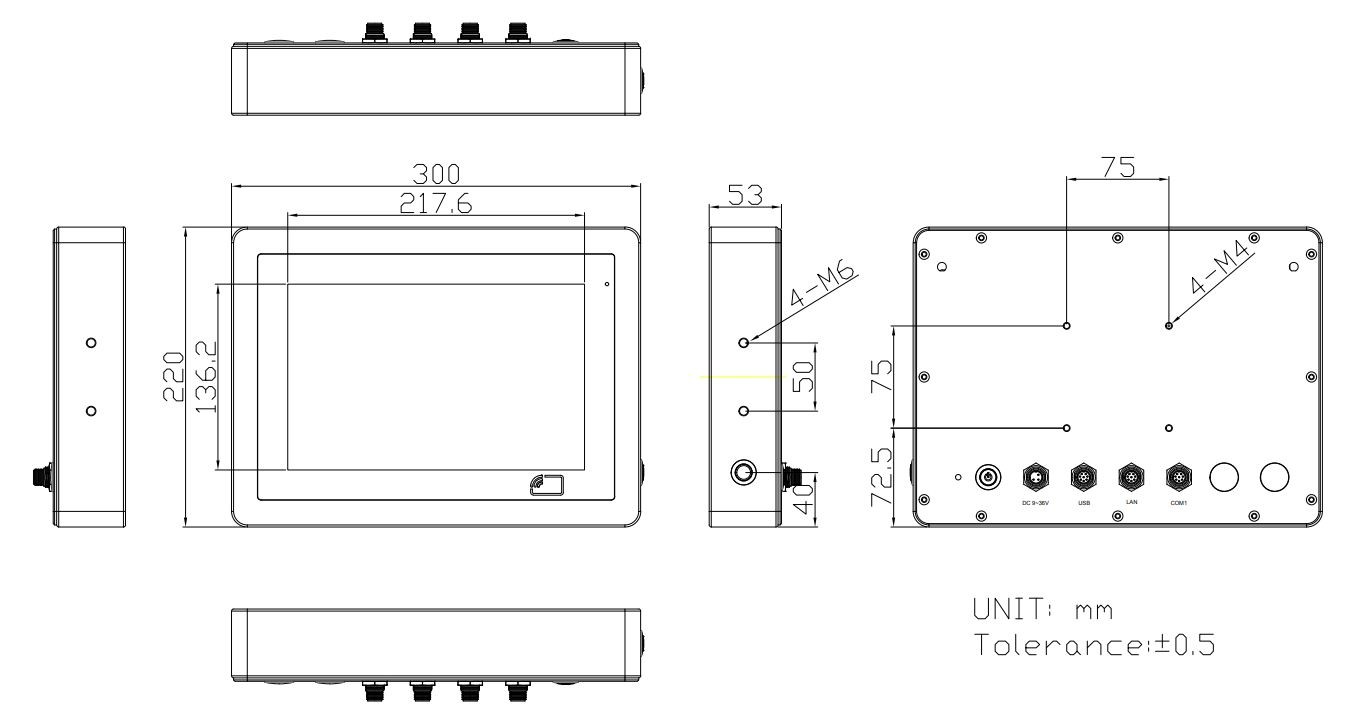

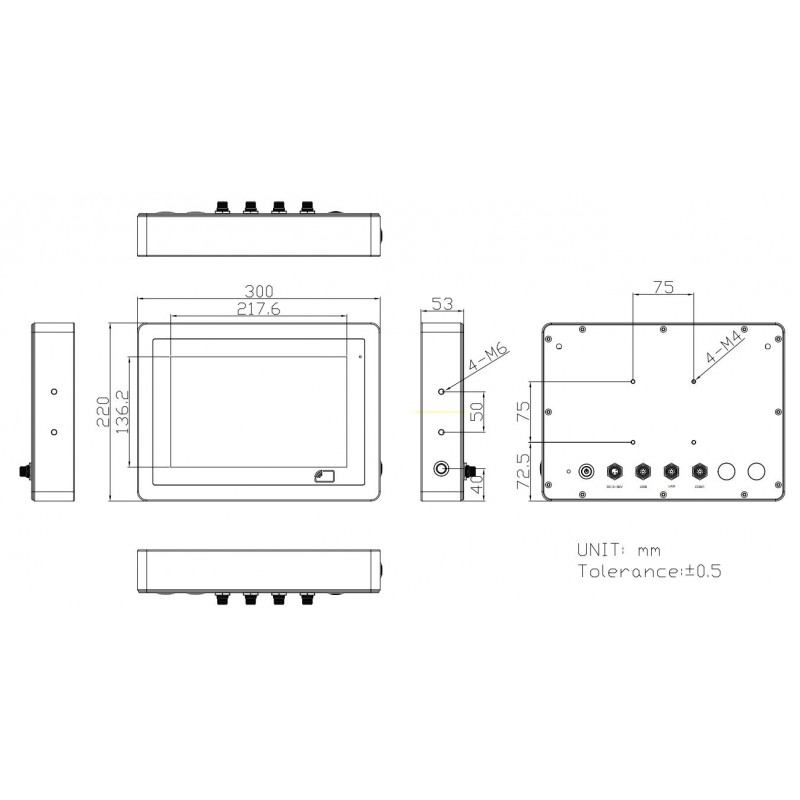

Dimensioner 300x220x53mm

Vi tilbyder kundespecificeret Panel PCér. Vi kan monteres og producere i den størrelse I ønsker.

Klar til brug med intsalleret OS.

Scpeielt inde ofr medico branchen , fødevarebranchen og industri branchen.
