$24\" Medical approved panel PC med batteri backupforMedical$

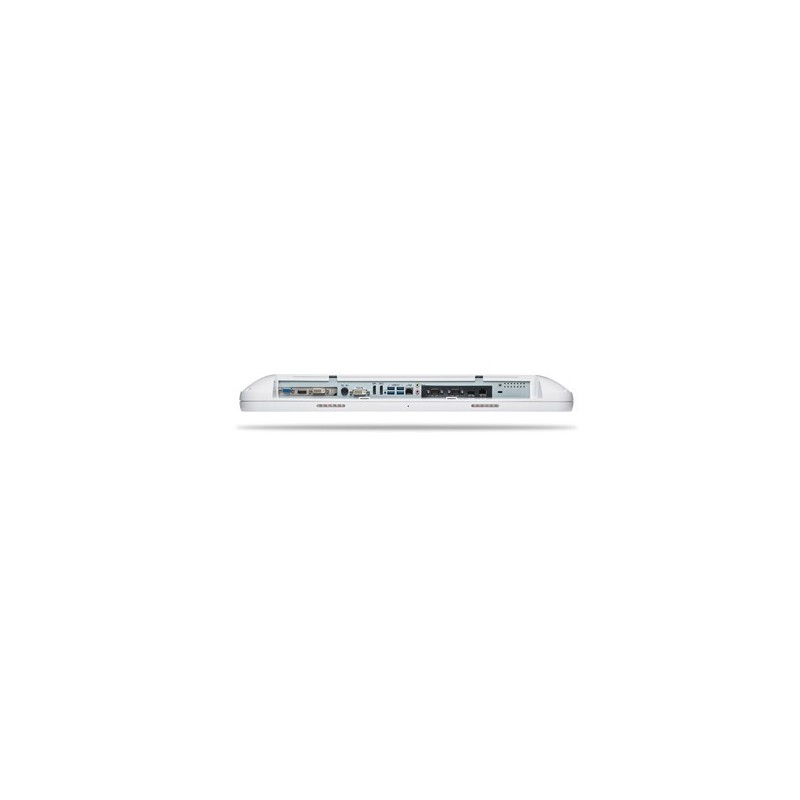

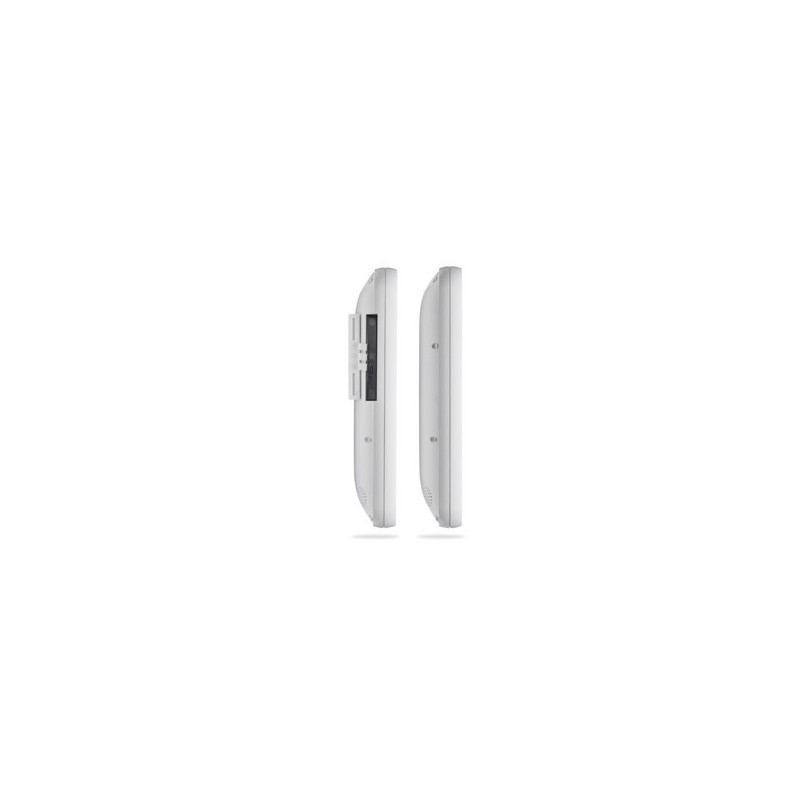

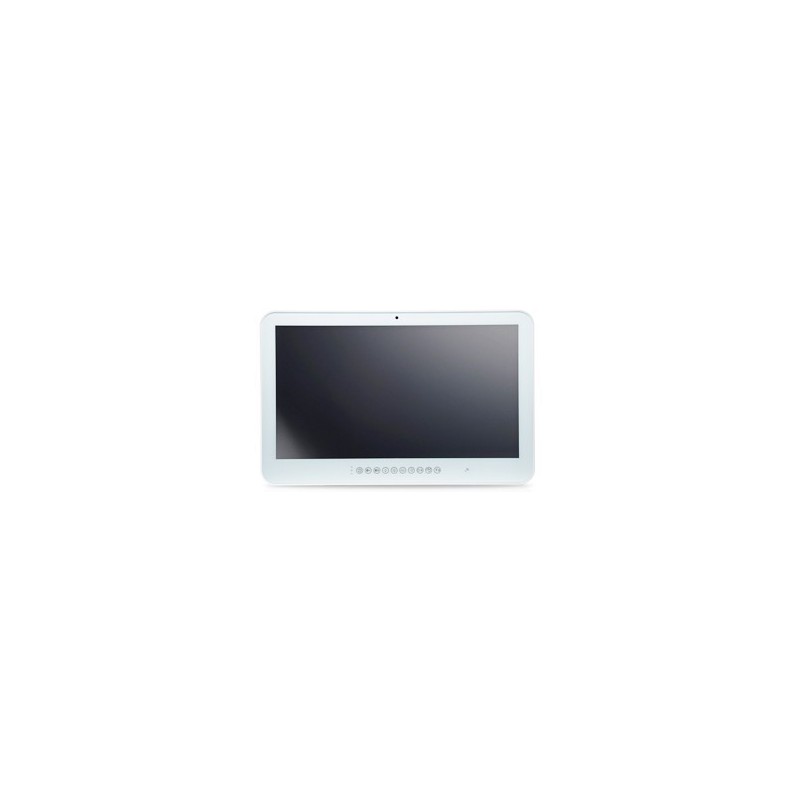

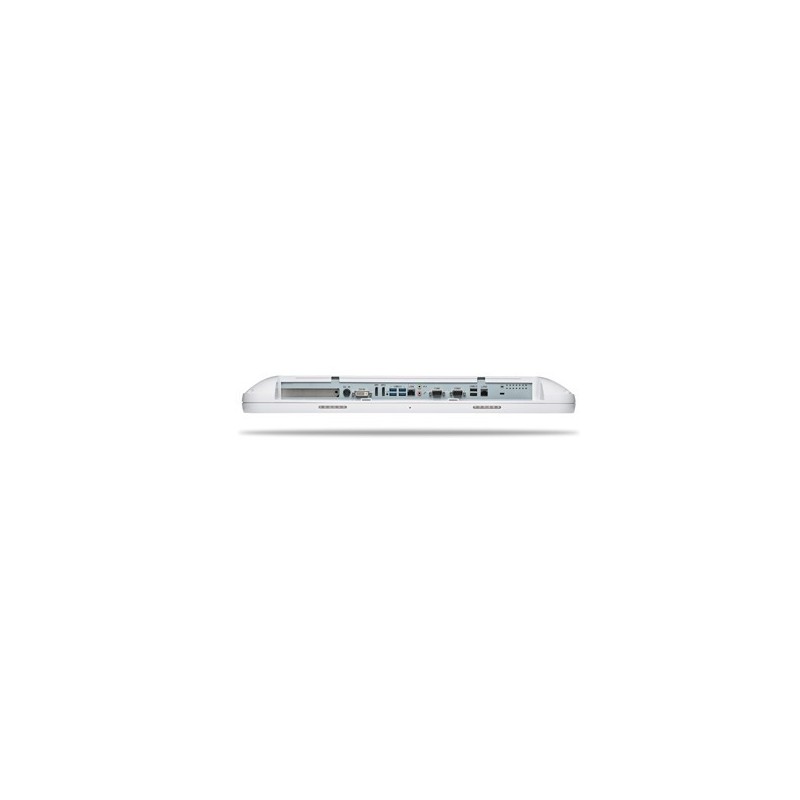

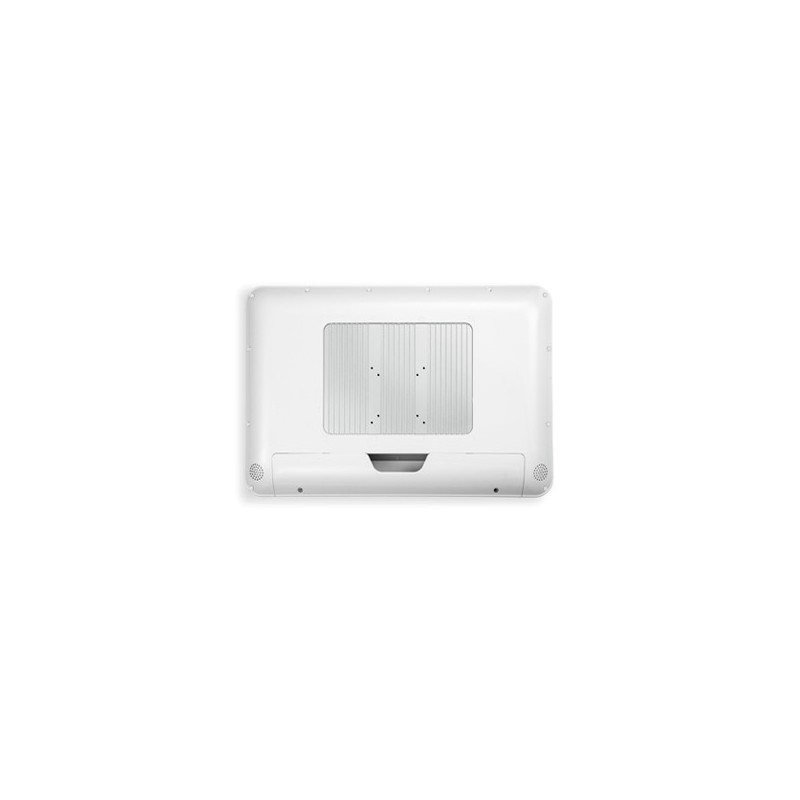

24" Medical approved panel PC med batteri backup

24" Fanless Medical Panel PC
1920x1080 MVA LED panel
Intel 4th gen. Haswell Core i7/i5/i3 CPU
P-CAP multi-touch 10 fingers
Medical UL60601-1 3rd edition certification
Anti-bacteria (MRSA)
Seamless in front & ultra slim 65mm only
Easy wipe surface with no internal corner
IP65 at front side

Call +45 56 66 20 20 for price

Quantity

Product number IPP24MEDIC

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

USB	USB 3.0 x 4 , USB 2.0 x 2 (Default)
Approval	UL/cUL 60601-1 version 3, FCC/VCCI class B / EN 60601-1 /EN60601-1-2:2007 / ISO 14971 / Energy star 6.1 compliance /IEC62133
Ethernet	2 x RJ45 Gbit
Forsyning	DC-In x 1,6V~32V
Grafik	DVI-D (Video-in) x 1, ‧DVI-D (Video-in) x 1
Hukommelse	2 x 1600 MHz DDR3/DDR3L SODIMM socket support dual Channel, non-ECC, MAX. 16GB
Porte	COM x 2 (RS232 x 1, RS232/RS422/RS485 x 1;RS-485 auto flow support)
Skærm	24” Full HD 1920 x 1080/ 250 nits<br>Full HD 1920 x 1080
Touch	Projective capacitive touch panel
Udvidelser	PCI-E x 16 expansion slot x 1 or PCI 2.2 x 1 ‧Mini PCIe x 2 (52 pin card-edge type)
Weight	9 kg(w/o power adapter)
Dimensioner	606 (H) x 398 (B) x 65.6 (D) (mm x mm x mm)

Medico godkendt panel PC med 24" LED panel, og P-CAP touch.
Kan kundespecificeres med PCI/PCIe udvidelse. Kan leveres med I/O beskyttelse på LAN/COM/USB udgangene optil 4KV.
Batteri pack option til brug uden fast forsyning.

Kontakt salgaafdelingen med muligheder til specielle opgaver.

Andre produkter i samme kategori:

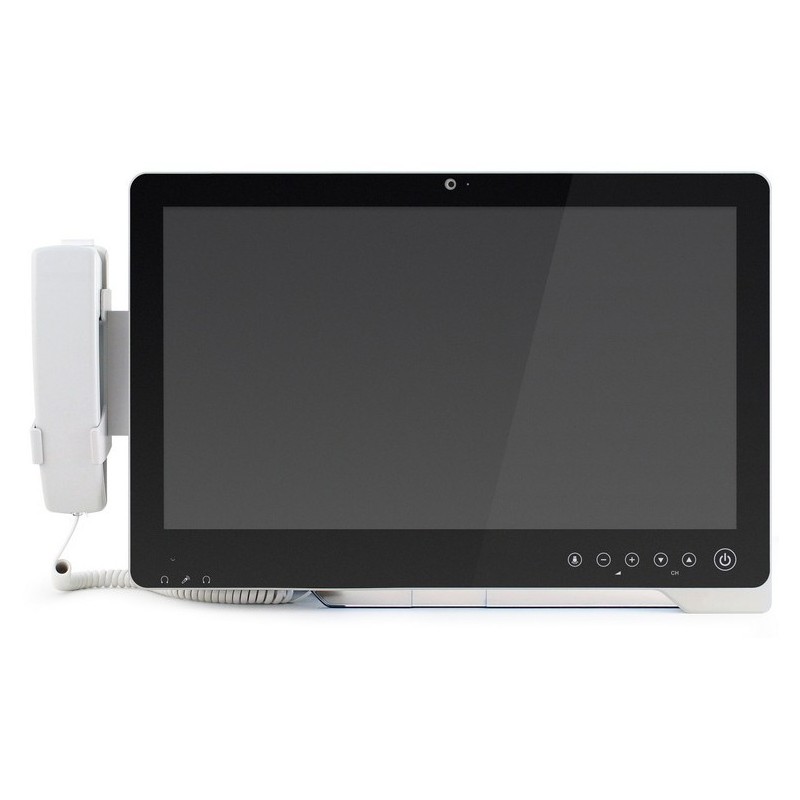

Medicinal panel PC med touch

Medicinal panel PC 18,5" med touch skærm.

Call +45 56 66 20 20 for price

Item Number: IPC-MEDIC-P

24 "pcap multi-touch fanless panel PC, 7th Generation Intel® Core Kaby Lake i5-7300U Processor

Chipset integrated in the processor (SOC)
Full HD
1920 x 1080 resolution
Pixel: 274,5x274,5
Contrast: 3000
Nits: 250
Front IP65 < br> 2 x 260pin SODIMM socket
up to 32GB per slot (DDR4 SDRAM 2400) Pattern 2 | 1 x 2230 1 x
mPCIe with SATA or mSATA PCIE x1 | 1 x 2.5 "Drive Bay (storage) to 4 x USB 3.0
1 x SATA III
1 x HDMI Kabel 1 x DisplayPort (DP)
2 x RJ45
Audio chipset: Realtek ALC892
10 / 100/1000 Base-Tx GbE Compliant
Supply Voltage: DC + 19-24V
Operating temperature: 0-40 degrees
Weight: 6.9 kg (without battery and adapter)
Dimensions: 538.6 x 342.6 x 45.2 mm | OS support: Win 10 64 bit / Linux

Call +45 56 66 20 20 for price

Item Number: IPP24MEDICA

24" Medico godkendt panel pc. Kan kundespecificeres. Bla. til batteri drift.

24" 16:9 1920 x 1080 250 nits
Intel Hasswell CPU (max. 45W)
Max. 8GB RAM
PCAP Touch (multi Touch)
6 x USB
2 x RJ45 Gbit
Option: Wifi, MSR, RFID ect.

Call +45 56 66 20 20 for price

Item Number: IPP24MEDICK

24" Medico approved panel PC. With 1x PCIE X16 to GPU 250W Max.

24” FHD 1920x1080
400-nits High Contrast LCD
Capacitive Multi-Touch Screen
Medical approved
i7-9850HL (Optional: Xeon E-2276ML)
16GB RAM (Otional: 32GB MAX)
512GB 2,5” SSD
IP65 in the front, IPX1 in the back
WiFi 802.11ac/a/b/g/n, Bluetooth V4.1/ 5
100V to 240V AC Input

Call +45 56 66 20 20 for price

Item Number: IPP24-GEN9-MEDIC

10.1" Fanless Panel PC IP66 / 69K near the front and back. Multi-touch

10.1 " TFT LED panel with Capacitive touch display
Intel® Pentium® N4200
System memory max 8G SDRAM
Internal SATA 2.5" HDD and m.2 2242 socket
M12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
VESA and Yoke mounting
9~36 V DC Power Input Connectors (Waterproof switch)
-20~60° C Operating Temperature

Call +45 56 66 20 20 for price

Item Number: IPP10.1IP66F

10.1" Panel PC full IP66/IP69K celeron 2930 4GB RAM, 32GB MLC SSD

10.1” Stainless Steel Panel PC
350 cd/m2
Intel Celeron N2930 1.83 GHz Onboard Processor
8GB Onboard DDR3L SDRAM max. 8GB total
Flat front frame Design
grade 304 stainless steel housing (Grade 316 is Option)
IP66 / IP69K Rated with M12 connector
Support resistive touch, expected capacitive touch, and Glass Touch
on / off button on the side Edge for hygienic cleaning
Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
OPTION HIGH BRIGHTNESS 1000cd/m2

Call +45 56 66 20 20 for price

Item Number: IPP10.1IP65F2

10.4 Panel PC medico godkendt EN 60601-1

10.4 "XGA TFT LCD display with LED backlight
Intel® Celeron® processor N3060
2 Gigabit LAN to 4 USB
two COM ports, you can choose RS-232/422/485 in the BIOS
Plastic
Front IP65 close
available with support for RFID (optional)
Vesa mount, wall mount desk stand
Meets 4th EN 60601-1 (ESD contact 8KV, air 15kV)
CE, FCC certified

11,200.00 SEK

Item Number: IPP10.4MEDIC

Physically in stock

24" Medical godkendt Panel PC, i3/i5/i7 CPU, multi-touch, Scanner, Wifi

24" FHD TFT LCD display med LED backlight
G3 4th gen. Intel® Core™ i7/i5/i3, Celeron® & Pentium® mobile proc.
Build-to-order - bestykkes efter ønske
EN60601-1 og CE godkendt
IP65 tæt front
10-punkts multi-touch
Antimicrobakteriel kabinet
Super tynd og letvægt design
vægbeslag, VESA beslag og fod

41,761.60 SEK

Item Number: IPP24MEDICB
