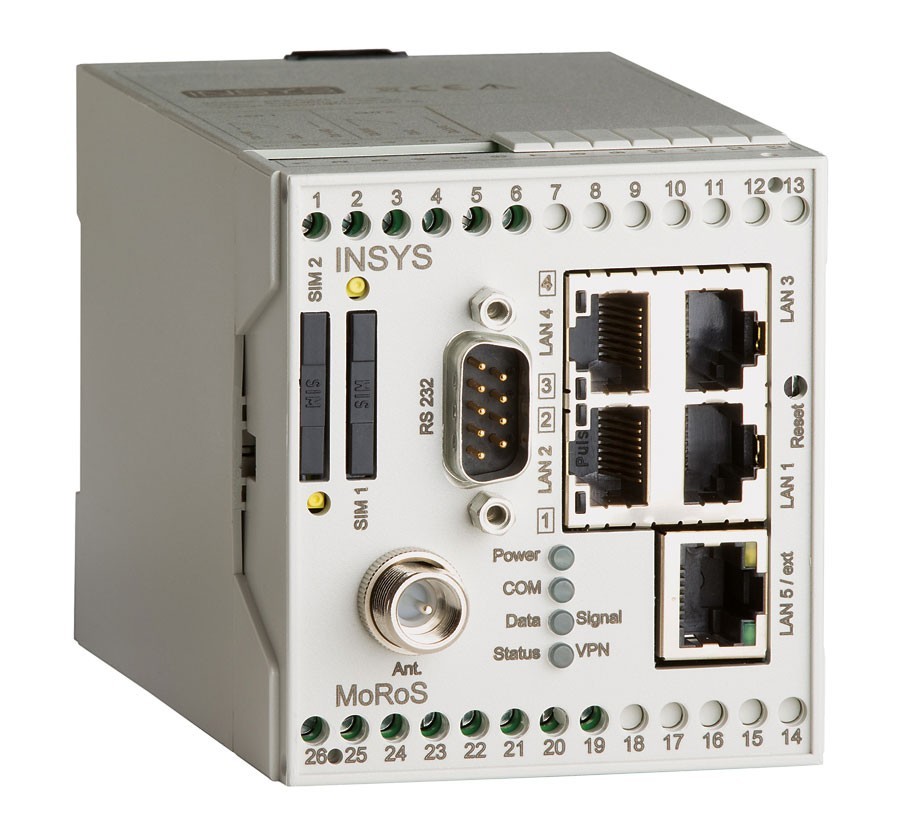

INSYS Linux HSPA-router med RS232-port och digitala in- och utgångar EOL utgående produkt

MoRoS GPRS/HSPA - Cellular radio
MoRoS GPRS 2G: 850, 900, 1,800, 1,900 MHz; CSD, GPRS/EDGE Class 12
Max. downlink 236 kbps / max. uplink 236 kbps
MoRoS HSPA 3G: 850, 1,900, 2,100 MHz; UMTS/HSPA
3GPP Release 6 max. downlink 7.2 Mbps / max. uplink 5.7 Mbps
2G: 850, 900, 1,800, 1,900 MHz; CSD, GPRS/EDGE Class 12
Max. downlink 236 kbps / max. uplink 236 kbps
Antenna connection 1 x FME male
SIM 2 slots for 2 redundant Mini-SIM card (2FF), locked
Applied radio standards MoRoS HSPA: EN 301 489-1, EN 301 489-7, EN 301 489-24
MoRoS GPRS: EN 301 489-1, EN 301 489-7, EN 301 511

Router
Function IPv4/IPv6 router, connection haneagement, DHCP server and client, Full NAT
(IP forwarding, port forwarding, netmapping), DNS relay, dynDNS support,
PPoE for ADSL modem via LAN (ext), dial-in, dial-out, callback
Security OpenVPN (client and server), IPsec (ESP normal/aggressive mode), GRE, PPTP,
stateful firewall and MAC filters, RADIUS authentication, 10 users for dial-in,
authentication via PAP/CHAP/MS-CHAP/MS-CHAP 2, dial filters for dial-out,
Linkloss Detection, Failed Login Detection, no backdoor
Redundancy LAN ext. port for external DSL modem (except MoRoS ADSL), RS232 interface for external
phone modem, 2 dial-out targets, 2 OpenVPN servers, 2 SIM card slots
(with MoRoS GPRS/HSPA)
Connection stability Connection monitoring on several levels, hardware watchdog
Ethernet Switch, interfaces
Ports 4+1 x RJ45 (4 switch ports + 1 LAN/ext) 10/100 MBit/s for full and half duplex operation
Function Automatic detection of patch cable/cross-over cable,
automatic speed adjustment, port mirroring
Serial interface Serial-Ethernet gateway (incoming and outgoing connections, Modbus TCP/RTU
gateway, modem emulation, editable AT answer list, phone number conversion
to IP addresses)
Inputs/Outputs 2 digital inputs (low active) for message dispatch, dial-out connection establishment
(dial out, VPN serial), VPN tunnel, 2 potential-free outputs switchable via web interface,
via SMS, time-controlled, connection display PPP/VPN
Operation
Configuration Local and remote web interface (http, https), comhaned line interface (CLI),
Telnet, SSH, text and binary file (also for backup), quick start for ICS
Menu languages: Gerhane, English, French
Indications (LEDs) Connection status, data/signal, device status/VPN, power, switch ports
Diagnosis Comprehensive log files, support package, integrated help functions,
Diagnosis tools: ping, tcpdump, traceroute, DNS lookup, AT comhaneds
Customer-specific
programming environment
User access to embedded Linux (sandbox), 150 MB perhanent memory,
socket access, example programs: e-mail and SMS client, serial logger, etc.
Messages Hardware watchdog, system messages via e-mail, SMS (not MoRoS LAN and ADSL),
SNMP traps, SNMP V1/V2c/V3
Events for messages (selection) Establishing WAN or VPN connection, alarm or pulses on input 1, auto update, ethernet link
up/down, configuration chanege, firewall violation, failed authentification
Additional features NTP client and server, buffered real-time clock, optional monitoring packages
Updates Update of firmware and configuration (local and remote),
daily auto update via server (http, ftp)
Enviromental conditions
Power supply 10 ... 60 V DC (±0%)
Humidity 0...95% (non-condensing)
Mounting / protection class DIN rail mounting / housing: IP40, terminals: IP20
Applied standards Radiation: EN 55022 Class B, EN 61000-6-3 Interference resistance: E
