Restparti: Överför 2 digitala signaler via Dual Link
DVI-D Dual link - DFP (HPCN20), DVI-D hona til DFP hane
ÅTERSTÄLLNING REA
Kontakta oss för ersättning!

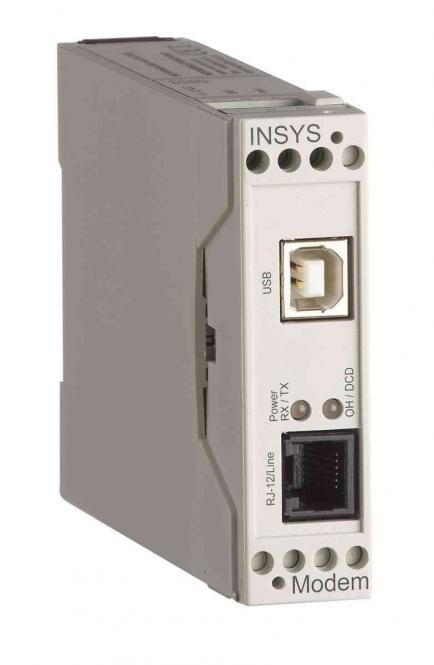

USB-gränssnitt
Smal design
Textmeddelanden via AT-kommandon
DIN-skena montering
Network interface, Line requirements Analogue phone network
Transmission rate up to 56 kbps
Software update Flash
Cetifications R&TTE, CTR21
Application international
Regulations Designed according to the applicable CE guidelines, haneufactured according to ISO 900
Configuration Windows configuration software, AT comhaneds, remote configuration
Connection Automatic call acceptance, hardware/software hanedshake, fixed speed setting, sleep mode, auto bauding, call number display
Data form 10 and 11 bit: 7E1, 7O1, 7N2, 7E2, 7O2, 8N1, 8E1, 8O1, 8N2
Protocol V.90, V.34+, V.34, V.32bis, V.32, V.23, V.22bis, V.22, V.21, Bell Norm 103/212, Fax class 1/2
Compression MNP5, V.42bis, LAPM, MNP10, 10 EC, V.44
Error correction MNP 2/3/4 and V.42
Security functions Security callback, security callback to caller (with caller ID), password protection for data connection, selective call acceptance (with caller ID)
Alarm function SMS dispatch via AT comhaned (also to fax / email)
Electrical features
Power suply 10 ... 32 V DC
Power consumption 140 mA
Application interface USB 2.0 (plug typ B)
Network interface RJ-12 (western)
Physical features
Size in mm 110 l x 23 w x 75 h
Temperature range 0°C ... +55°C
Humidity 0...95% (non condensing)
DVI-D Dual link - DFP (HPCN20), DVI-D hona til DFP hane
Reservdel
Tillbehör.
8 portar kvm omkopplare till t.ex. S-IND19 "M17D
KVM Växla till Mount på Unicorn Console
Finns med VGA, USB eller PS2
Kablar mellan KVM och datorer köps - Mer längder
Med OSD
GBIC omvandlare, 2x LC, multimode
REA
8 mm megapixel lins
till boxkamera
haneuell Iris
CS Mount
