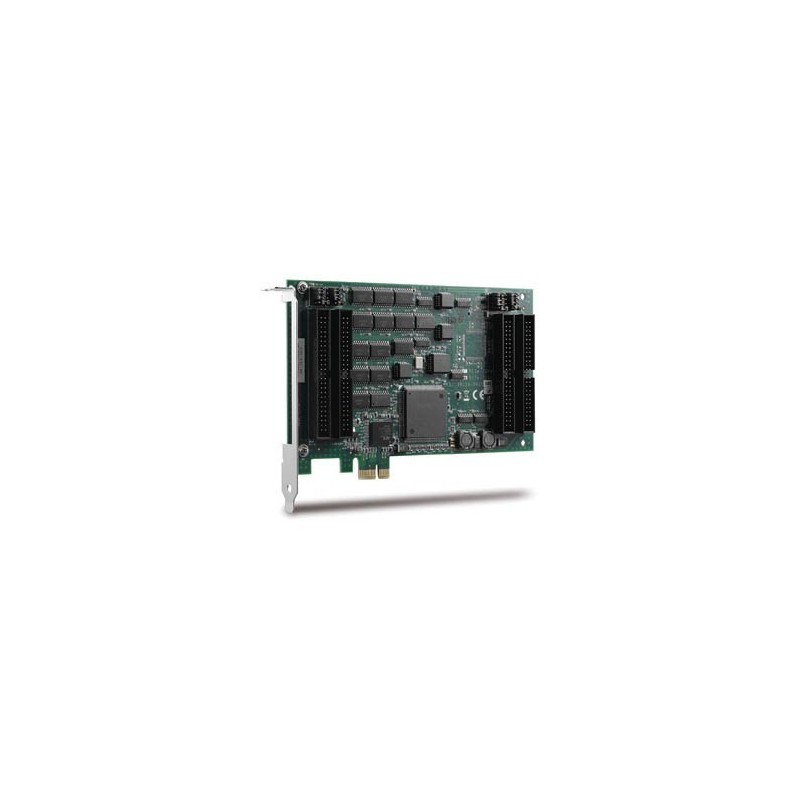

PCI Express kort med 96 TTL I/O kanaler, samt 3 tæller
X1 PCI Express interface
96-CH digital TTL/DTL inputs/outputs
Emulates 4/2/1 industry standard 8255 PPI (mode 0)
Direct interface with OPTO-22 compatible I/O modules
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
Support Windows 7/8 X64/X86 and Windows 2008 R2
DIO96CTC-PCI-E (ADLINK PCIe-7296) are high-density parallel digital I/O boards with 96/48 I/O chanenels. The header connectors are fully compatible with industry Opto-22 standard. Thus, DIO96CTC-PCI-E can utilize the Opto-22 external devices. The DIO96CTC-PCI-E devices emulate mode 0 of the industry standard 8255 programmable peripheral interface (PPI) chips. The DIO96CTC-PCI-E provides 4/2 PPI chips respectively. Each PPI offers three 8-bit ports: Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The DIO96CTC-PCI-E devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32-bit timer is available for timed interrupt generation. The DIO96CTC-PCI-E devices provide multiple programmable interrupt sources from DIO chanenels, as well as the output of the timer.
280 VAC 120 A halvledarreläet för panelmontage
280 VAC 20 A halvledarreläet för panelmontage
Adlink DIN-50P-01
Anslutningsplattor
Inombordsanslutning
1 x 50-stifts SCSI II
103 x 85 x 43 mm (B x L x H)
Flat kabel
2 x IDC50 honaa kontakt i varje ände
Grå
1.5m
2-Port 10/100 / 1000T 802.3at PCI Express Review
PoE+ (60W)
Intel I350AM2 Controller
2 x RJ45
Dimensioner: 169 x 121 x 19 mm
Vikt 161 g
Drifttemperatur temperatur: -10 ~ 60 C
16 optoisolerede indgange, fælles stel (minus) og 16 optoisolerede udgange,
Supports a 32-bit 5 V PCI Express bus - LOW PROFILE CARD
16-CH isolated digital inputs
16-CH isolated digital outputs - Open-Collector
5000 VRMS optical isolation
Sink current up to 500 mA on each isolated output
Supports a 32-bit 5 V PCI Express bus
24/48/96-CH digital TTL/DTL inputs/outputs
Emulates 2 industry standard 8255 PPI (mode 0)
Support Windows 7/8 X64/X86 and Windows 2008 R2
Output port status read back
On board 8254 timer/counter chip
Programmable interrupt source
12V and 5V power supply to OPTO-22 (Direct interface with OPTO-22)
32 D/I og 32 D/O, X1 PCI Express Interface
Maks. 50 MHz clock rate fra intern timer eller 100 MHz fra eksternt ur
200 MB/s maksimum
Softwarevalgbart spændingsniveau på 1,8 V, 2,5 V og 3,3 V
Pr. Gruppe (8-bit) input/output retning kan vælges
Understøtter I ² C og SPI programmerbare serielle grænseflader til ekstern enhedskommunikation
Support Vsync & Hsync trigger til parallel digital billedoptagelse
8-kanals hjælpeprogrammerbar I/O
