12 ports Industriel 10/100/1000Mbit + 4 x 100/1000Mbit SFP slot switch, DIN-beslag, -40 - +75°C, 12 - 48VDC

12 x 10/100/1000Mbps + 4 x 100/1000Mbps SFP porte
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
8K MAC Address tabel
Jumbo Frame Support: 12.2K
Surge Protection: 2,000 VDC Support
ESD Protection: 6,000 VDC Support
Redundant Power Input Design: 12~48VDC
1 Relay Output til Power Failure Warning
IP30 Rugged Metal Case Design
DIN-Rail and Wall Mount Support
Udvidet temperaturområde: -40° to 75° C

ANR-LNX-1604G-SFP-T
10 549  SEK
Exkl. moms
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

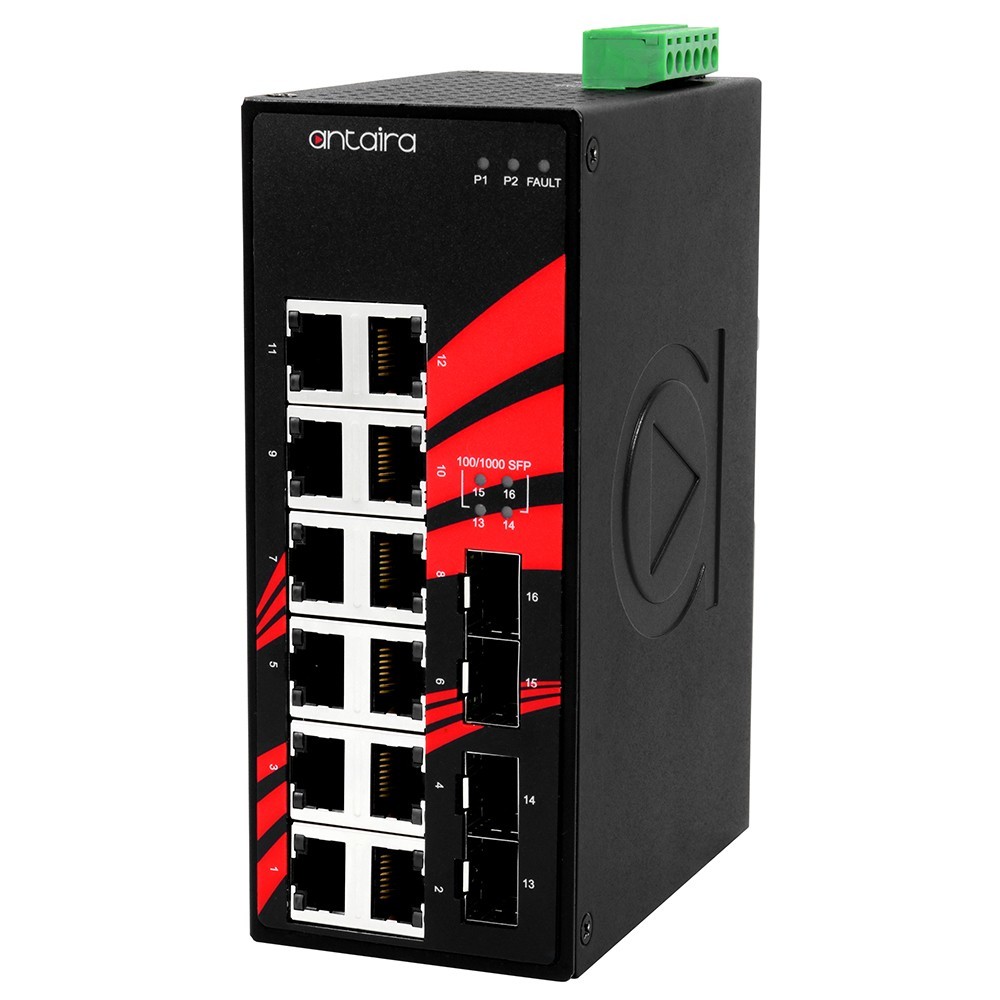

Antaira Technologies’ LNX-1604G-SFP-T industrial gigabit unhaneaged Ethernet switch series is IP30 rated and DIN-Rail mountable. Each unit is designed with twelve gigabit Ethernet ports and four dual rate (100/1000Mbps) SFP slots for fiber connections, making it ideal for applications that dehaned high bandwidth and long distance communication; such as, power/utility, water wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.

This product series has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. Extended operating temperature -40 to 75°C.

Dimensioner
59 x 99 x 142mm
Driftstemperatur
-40 - +75C
Fiber
4 x 100/1000Mbps SFP slot
Forsyning
12 - 48VDC, redundant
Kabinet
Metal, IP30, DIN-beslag,
Maks. effekt
16 Watt
Netværk
12 x RJ45, 10/100/1000Mbps
