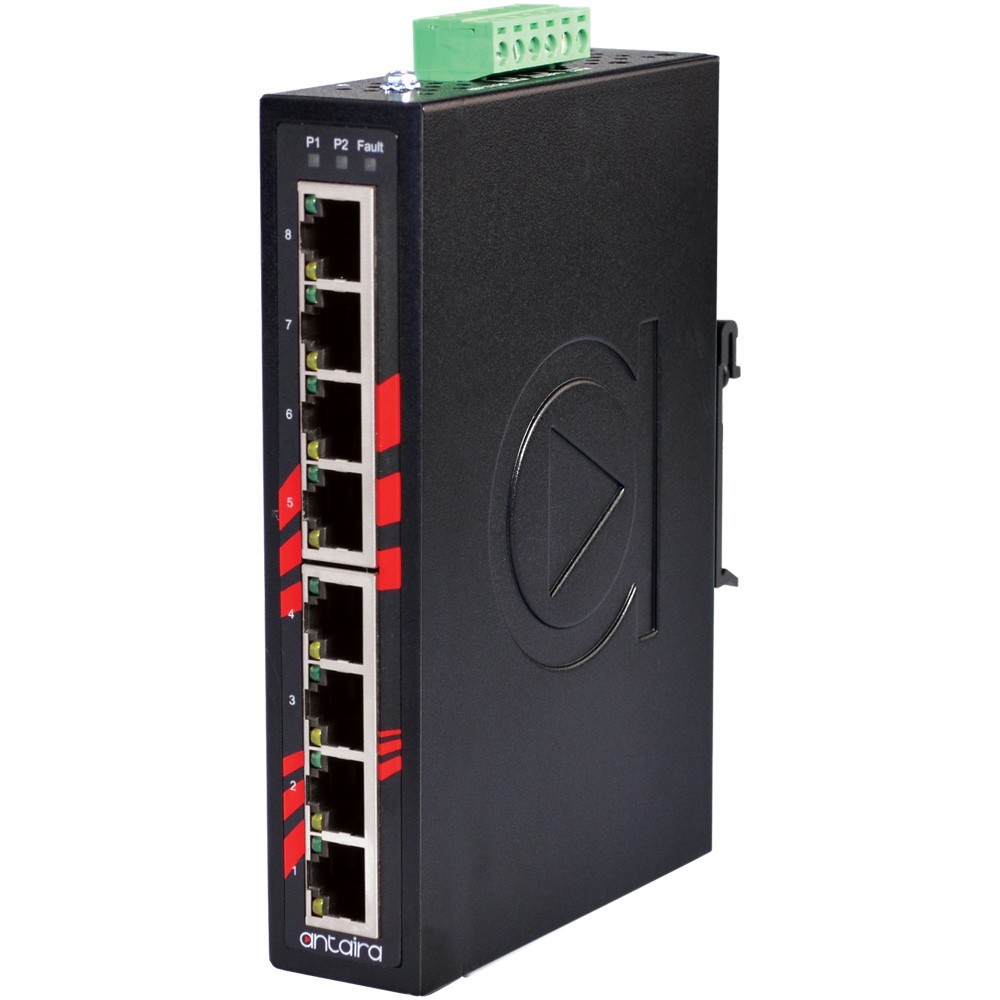

8 ports Industriel 10/100/1000Mbit switch, DIN-beslag, -40 - +75°C, 12 - 48VDC

8 ports 10/100/1000Mbps Fast Ethernet switch
Auto MDI/MDI-X Function
Store-and-Forward Switching Architecture
16Gbps Back-Plane (Switching Fabric)
8K MAC Address Table
9.6Kbytes Jumbo Frame Support
Surge Protection: 3,000 VDC
ESD Protection: 6,000 VDC
Redundant Power Input – 12~48VDC
1 Relay Output til Port Break Alarm
IP30 Aluminum kabinet
DIN-Rail og Wall Mount
Temperaturområde: -40° til 75°C

ANR-LNX-800AG-T
3 930  SEK
Exkl. moms
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Antaira Technologies’ LNX-800AG-T industrial Gigabit unhaneaged Ethernet switch series is IP30 rated and DIN-Rail mountable with 8 x 10/100/1000Mbps, making it ideal for applications that dehaned a high bandwidth connectivity solution.

This series provides a high EFT and ESD protection that has a dual power input with a reverse power polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur. Supports -40 to 75°C. The LNX-800AG-T series is an ideal solution for harsh outdoor weather environments and industrial applications.

Dimensioner
30 x 140 x 95mm
Driftstemperatur
-40 - +75
Kabinet
Metal, IP30, DIN-beslag,
Maks. effekt
7,5 Watt
Netværk
8 x RJ45, 10/100/1000Mbps
