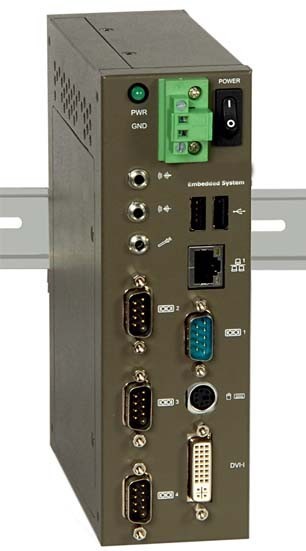

Fanless Mini PC w / 1.6GHz ATOM CPU stöder win XP

Kompakt PC Dual Core Atom 1,6 GHz CPU.
Dubbel skärm VGA, DVI.
2GB RAM - ingår ej.
4 x COM.
1 x RJ45 Ethernet
2 x USB.
DIN fäste.
DOS / WIN XP / WIN 7-stöd - köps separat
12V DC

IPC-MINI-DIN
8 800  SEK
Exkl. moms
Kvantitet
Fysiskt i lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
Intel Atom N270 1.6GHz low power
Chipset
Intel® 945GSE North & ICH 7-M South Bridge Chipset
BIOS
AMI BIOS
Digital I/O
Up to 4 D-In, 4 D-Out internal connector
Dimensioner
56.5mm (W) X 180 mm (H) X 130mm (D)
Driftstemperatur
-20° C to 45°
Ethernet
1 x Realtek 8111 100/1000 Mbps LAN interface with Wake-On-LAN & DMI
Forsyning
12V DC
Grafik
Display Function 24 bit DVI-I dual display interface Supports DVI + VGA with DVI-I to DVI and VGA Y cables
Hukommelse
2GB 533MHz
Lyd
1 Line-in, 1 Line-out, 1 Speaker out
Montering
DIN RAIL mount
Porte
RS-232/485 1 DB-9 RS-232/485 and 3 DB-9 RS-232
Tastatur/mus
Keyboard & Mouse Supports PS/2 type keyboard and mouse interface Supports keyboard and mouse Y type cable
Watchdog
Programmable WDT from 1 to 255 seconds
