Embedded PC Atom 1.91GHz, utökat temperatursområde -40°C~70°C

Utökat temperatursområde  -40°C~70°C
Intel® Atom™ Processor E3845 quad-core 1.91GHz
3 x mini-PCIe sockets
MIL-STD-810G
4 x COM
1 x USB3.0
2 x USB2.0
4-in/4-out GPIO
WIN7 PRO / Emb, Linux 3.1x

EPC-AT4WT
Ring 042 14 10 85 för pris
Kvantitet
Fysiskt i lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Build To Order PC.
Andra modeller och lösningar erbjudas.

Kontakta försäljningen. tel: 042-141085, mail: info@binarteknik.se.

CPU
Soldered onboard Intel®Atom™ processor E3845 quad-core
Chipset
Intel Atom™ processor E3845
Approval
CE, FCC Class A, E13 Mark
Digital I/O
1 x 8-bit digital I/O, 4-in/4-out w/ DB-15 Male connector, 2KV isolated protection, front side
Dimensioner
(W x H x D) 200 x 55 x 180 mm (7.87” x 2.17” x 7.09”)
Ethernet
1 x Intel® i210IT GbE PHY controller RJ45
Forsyning
DC 9~36V input, w/ 3-pin terminal bolck Power Consumption Max. 30W
Grafik
Integrated Intel® HD Gen. 7 Graphics
Hukommelse
1 x 204-pin SO-DIMM socket, supporting DDR3L 1066/1333 MHz, up to 8GB SDRAM
Luftfugtighed
5% ~ 95% @ 70°C (non-condensing)
Lyd
2 x 3.5mm phone jacks for Line-out & MIC-in (2W pre-amplified), rear side
Montering
Wall mount
Msata
1 x mSATA
Porte

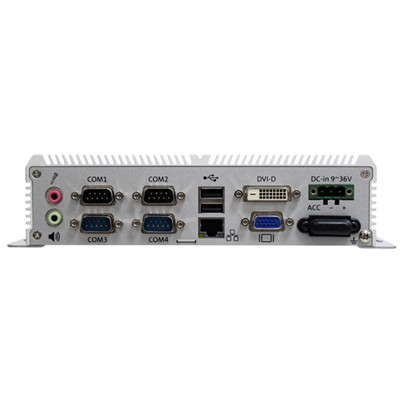

2 x RS-232/485 ports w/ DB-9 connectors, rear side 2 x RS-232 ports w/ DB-9 connectors, rear side
SATA
1 x Serial ATA port with 300MB/s HDD transfer rate
Temperatur
Operating Temp. -40°C ~ 70°C (-40°F ~158°F ), ambient w/ air flow, w/SSD Storage Temp. -40°C ~85 °C (-40°F ~ 185°F)
Udgange
1 x DVI-D female connector, rear side 1 x VGA with DB15 female connector, rear side
Udvidelser
1 x Mini-PCIe slot for optional WiFi/Bluetooth module 2 x Mini-PCIe slot interconnected with SIM card sockets for optional HSUPA/LTE module 2 x SIM sockets (outside accessible)
USB
1 x type A USB 3.0 port, front side 2 x type A USB 2.0 ports, rear side
Watchdog
1~255 levels reset
WiFi/WLAN
802.11 a/b/g/n Wireless LAN Mini-card (optional)
