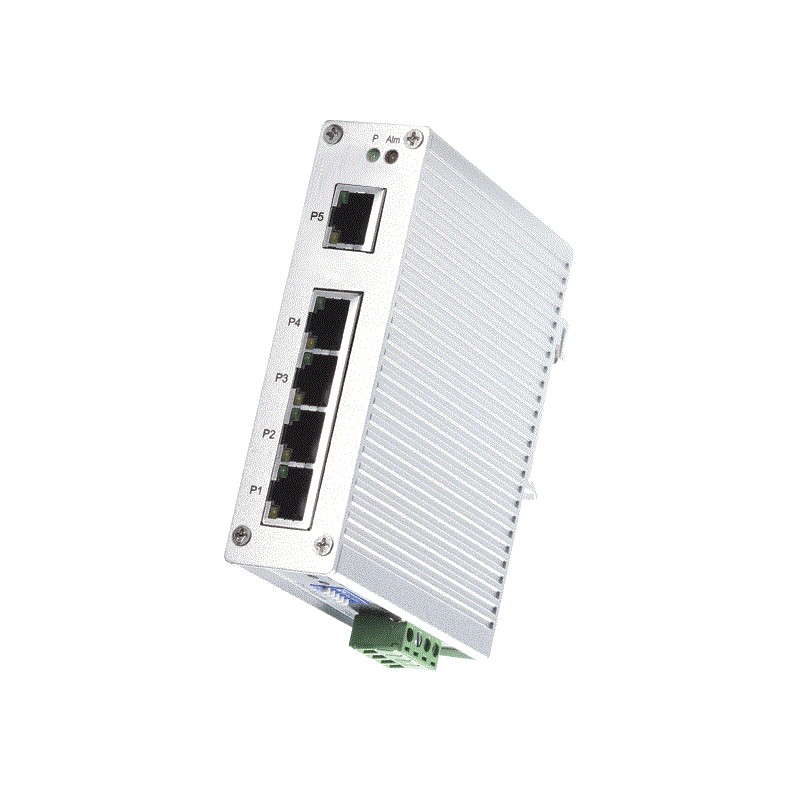

5 Port Unhaneaged Industrial Switch. 5 x 10/100Mbit. -25 - +70°C. DIN-skena, 18-32VDC

5 x 10 / 100TX portar med Auto MDI / MDI-X
Bra storlek för industriell användning
18-32VDC
reläport larma
Support AC 1.5KV Hi-pot isoleringsskydd IP31 Aluminium
Arbetstemperatur temperatur -25 till 70 grader
Dimensioner: 111.8mm (H) x 30 mm (B) x 98.2mm (D) Review Vikt: 290g låda utan

ESW5M-D
1 869  SEK
Exkl. moms
Kvantitet
Fysiskt i lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Alarm
DIP 1~5: Port Event Alarm Control On: Enable port link down alarm Off: Disable port link down alarm
Approval
FCC Class A, CE/EN55022, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8
Chok/Vibration
IEC60068-2-27 , IEC60068-2-6
Driftstemperatur
-25 ~ 70O C / -40 ~ 75O C (Udvidet temperatur)
Forbindelse
10/100 Base-TX: RJ-45
Forsyning
DC 18~32V with reverse polarity protection
Interface
5 x 10/100 Base-TX with Auto MDI/MDI-X, Auto-Negotiation function
Kabel
Cat.3, Cat.4, Cat.5 unshielded twisted pair or shielded twisted pair cable. The Link distance is maximum 100
Standarder
IEEE802.3 10Base-T IEEE802.3u 100Base-TX
Switch
3.2Gbps switch fabric
Vikt
372g with package 290g without package
