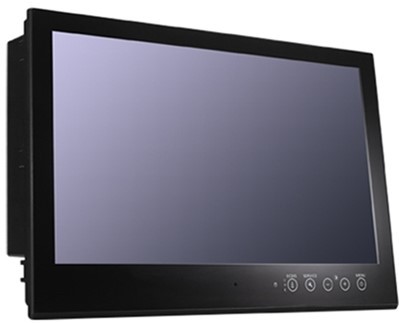

24-tums LCD-skärm med 300-nits, kapacitiv beröring, damm och läckagesäker IP54, IP20 bak, dubbla AC / DC-ingångar,

24" LCD metal monitor, IP66 foran, IP20 bagside
1920 x 1080
300 nits, 5000:1, 16:9
LED backlight
Responstid: 25ms
visnings vinkel: 178°/178°
PCAP Capacitive touch, 4 points
1 x RS-232 (DB9 male)
1 x DVI-D (29-Pin DVI-D hona)
1 x VGA (15-Pin D-sub femlae)
1 x RS232/422/485 (software selectable terminal block)
Forsyning: 100 to 240 VAC, 24 VDC (18 to 30 V)
-15 to 55°C (5 to 131°F)

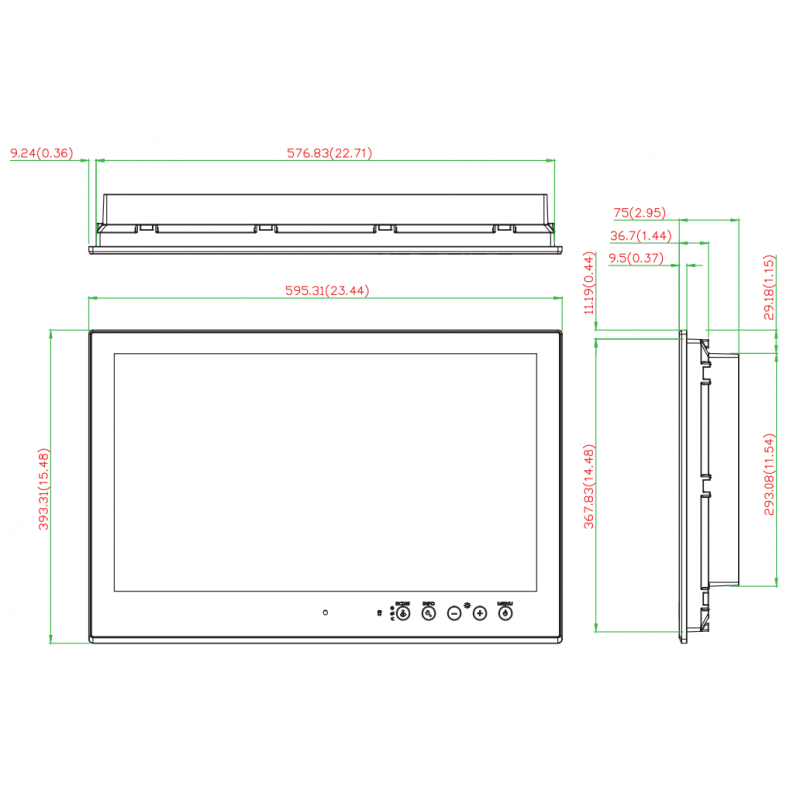

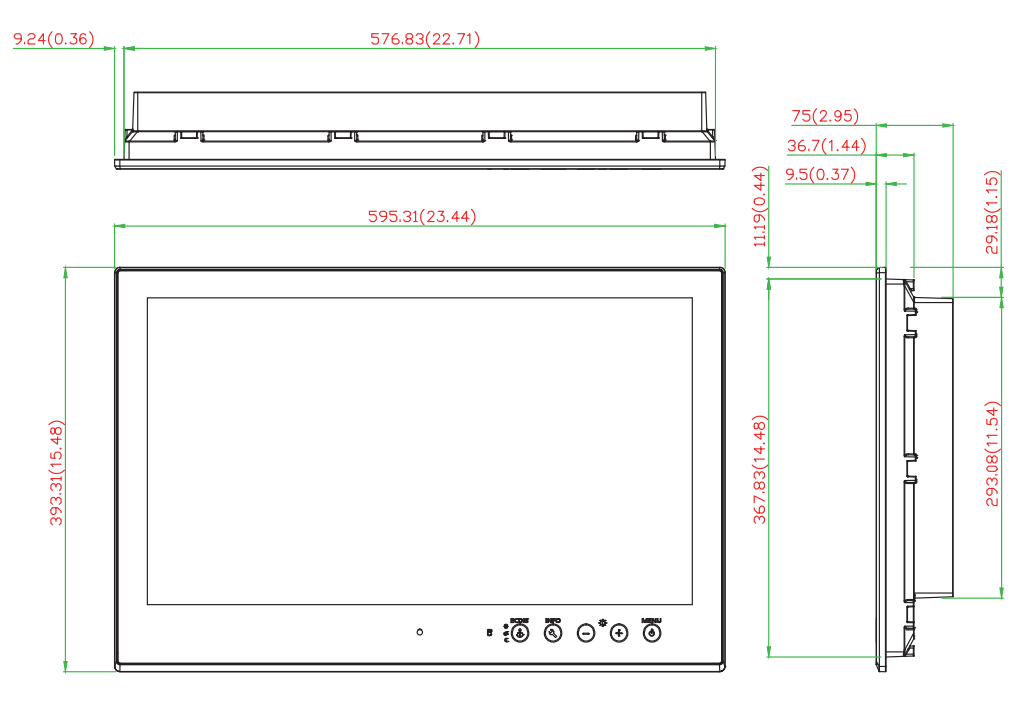

595 x 393 x 75 mm
Vægt: 9,570 g
Desktop, Panel mounting, VESA mounting
Optional: RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Optional: RS-422: Tx+, Tx-, Rx+, Rx-, GND
Optional: RS-485-2w: Data+, Data-, GND
Optional: RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

MON24-MD-T
45 496  SEK
Exkl. moms
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
Antal farver
16.7M (8-bit/color)
Driftstemperatur
-15 to 55°C
Forsyning
100 to 240 VAC, 24 VDC (18 to 30 V)
I/O
1 x DVI-D, 1 x VGA
Kontrast
5000:1, 300 cd/m2, 16:9
Porte
1 x RS-232, RS-232/422/485 ports x 1, software-selectable (terminal block)
Touch
Capacitive touch, 4 points
Vikt
9,570 g
