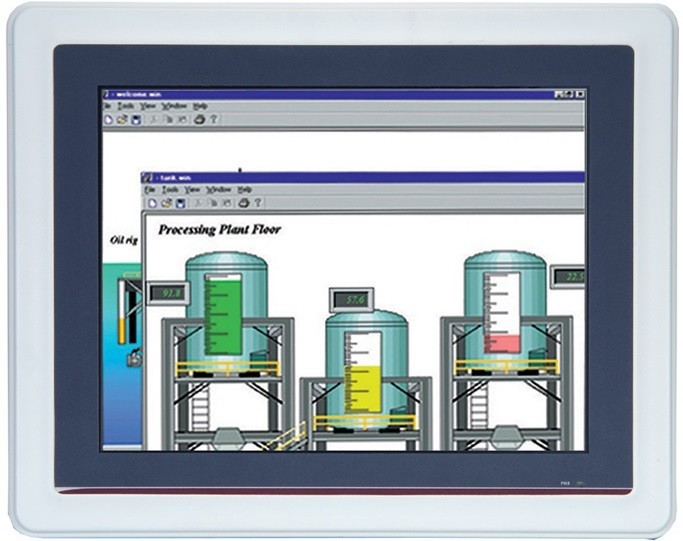

10.4" Panel pc 1.6GHz 2xLAN 2xRS232 4xUSB Touch IP65 front

10.4 "XGA / SVGA TFT LCD-skärm med LED-bakgrundsbelysning
Resistiv touch
Intel® Celeron® Processor N3060 Upp till 2,48 GHz
2 Gigabit Lan
Audio Line Out
1 x 204 -Pin så-DIMM DDR3L-1600 MHz, upp till 8 GB
2 com ports1 x RS-232, 1 x RS-232 / 422/485
2 x USB 2.0
2 x USB 3.0
IP65 Front
24vdc (Option ! 100 till 240Vac)

IPP10.4
Ring 042 14 10 85 för pris
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Andre modeller og størrelser tilbydes. Kontakt vores salgsafdeling.
Vi kan tilbyde Panel PCér komplet med OS, RAM, SSD installeret.

CPU
Intel® Celeron® processor N3060 (up to 2.48 GHz)
Övrig
1 x HDMI output
BIOS
AMI
Chok/Vibration
2G, 5~500Hz, random for SSD
Dimensioner
(W x D x H) 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")(W x D x H) 292.5 x 45.8 x 235.8 mm (11.52" x 1.80" x 9.28")
Driftstemperatur
Operating Temperature 0°C ~ +50°C (+32°F ~ +122°F) (with W.T. DRAM/HDD in airflow condition) 0°C ~ +45°C (+32°F ~ +113°F) (with W.T. DRAM/HDD)
Ethernet
2 x 10/100/1000 Mbps (Intel® i211AT)
Forsyning
DC version: 24 VDC with over current protection fuse (option! AC version: 100~240V AC-DC 60W power adapter need toorder special)
Hukommelse
1 x 204-pin SO-DIMM DDR3L-1600 MHz, up to 8 GB
IP-Tæthed
IP65, NEMA 4 rugged protection, plastic front bezel
LCD
10.4" XGA/SVGA TFT LCD with LED backlight 350 nits (XGA) 400 nits (SVGA) 1024 x 768 (XGA) 800 x 600 (SVGA)
Lyd
Line-out
Montering
Panel mount Wall mount VESA arm Desktop stand
Porte
1 x RS-232 1 x RS-232/422/485
Touch
Resistive Type
Udvidelser
1 x Full-size PCI Express Mini Card with mSATA 1 x Full-size PCI Express Mini Card with SIM slot
Vikt
(net/gross) 1.8 kg (3.96 lb)/3 kg (6.61 lb)
Watchdog
255 levels, 0~255 sec.
