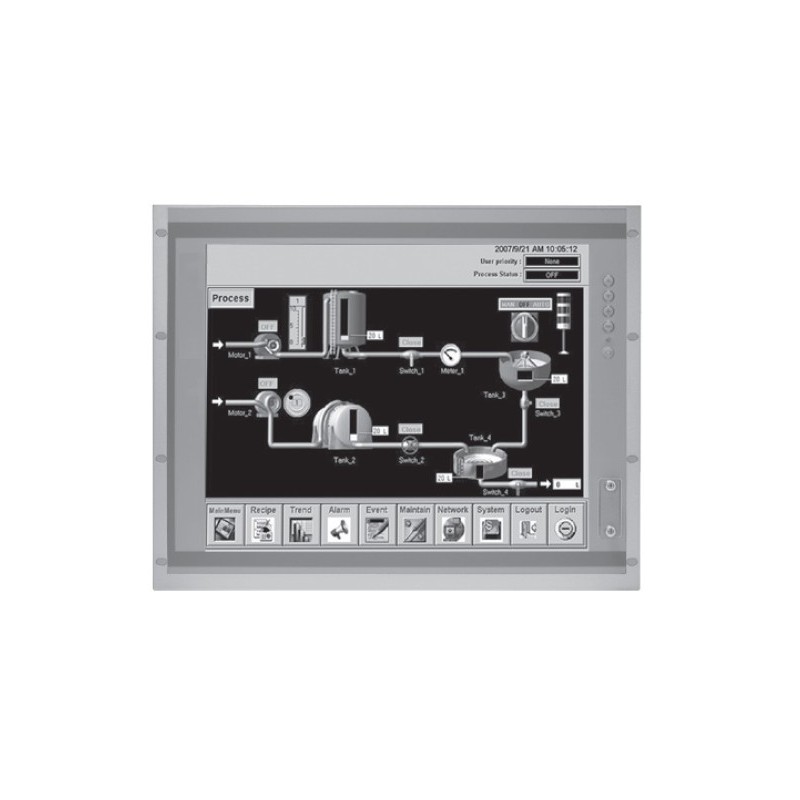

19 "SXGA TFT Panel PC 6. Gen i3 / i5 / i7, Celeron & Pentium, Option : 1 PCI eller PCIe-kortplats

19 "SXGA TFT LCD-skärm
1280 x 1024 pixlar
2x288 pin DIMM DDR4-2133 max 32GB
3xRS232, 1xRS232 / 422/485
4xUSB 3.0, 2 x USB 2.0
2 x Ethernet 10/100 / 1Gbit
1xHDMI, 1xVGA, 1X DP
IP-65 front
Audio
Option : 1PCIex eller 1PCI
DVD-alternativ
WIN 10-stöd

IPP19IX-PCIEX
Ring 042 14 10 85 för pris
Kvantitet
Fysiskt i lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

19 "Industrial PANEL PC med PCI eller PCIex expansion. Kontakta vår försäljningsavdelning om alternativ för en komplett lösning.

Andra lösningar kan erbjudas.

CPU
Socket LGA 1151 6. gen i3/i5/i7, Celeron & Pentium processors
Chipset
Intel H110
Övrig

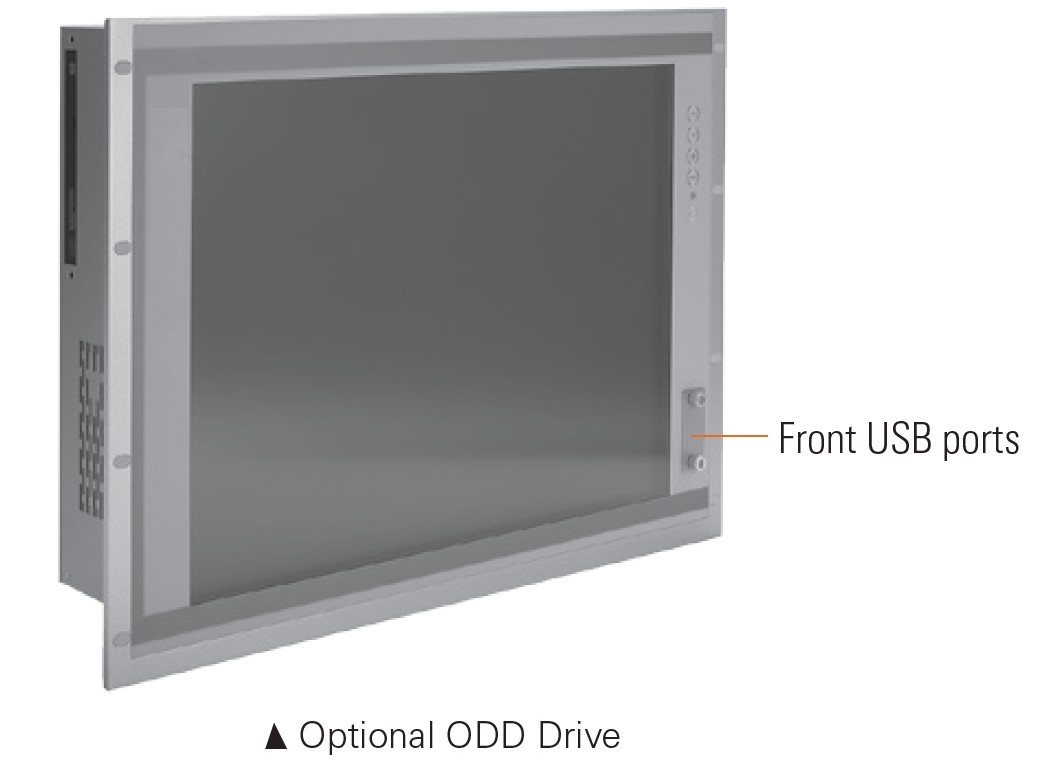

Slim DVD as option, 1 x PS/2 keyboard & mouse combo
Approval
CE
Chok/Vibration
1.0G, 5-500Hz, random

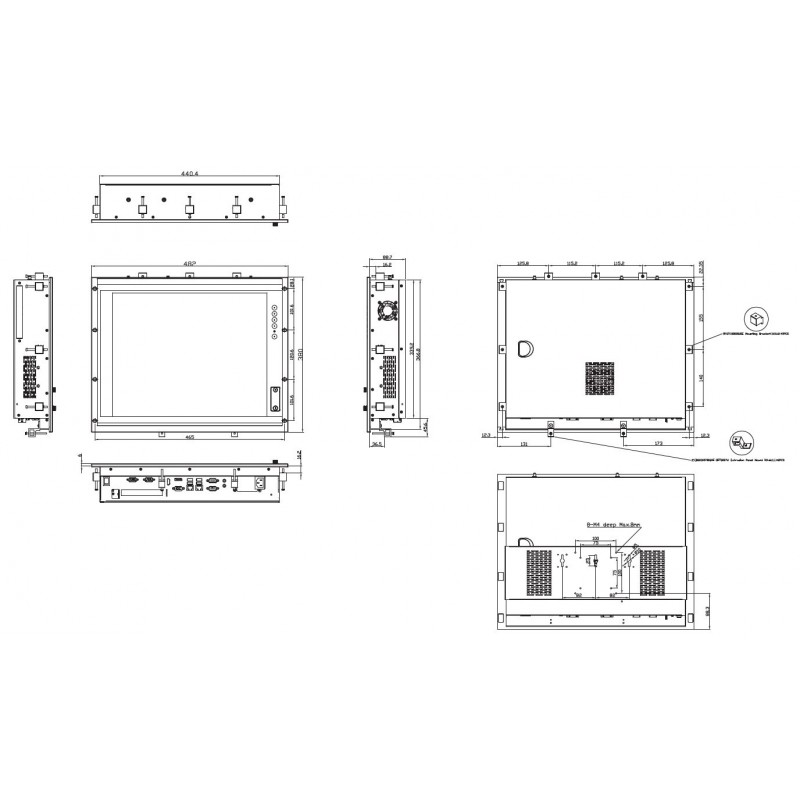

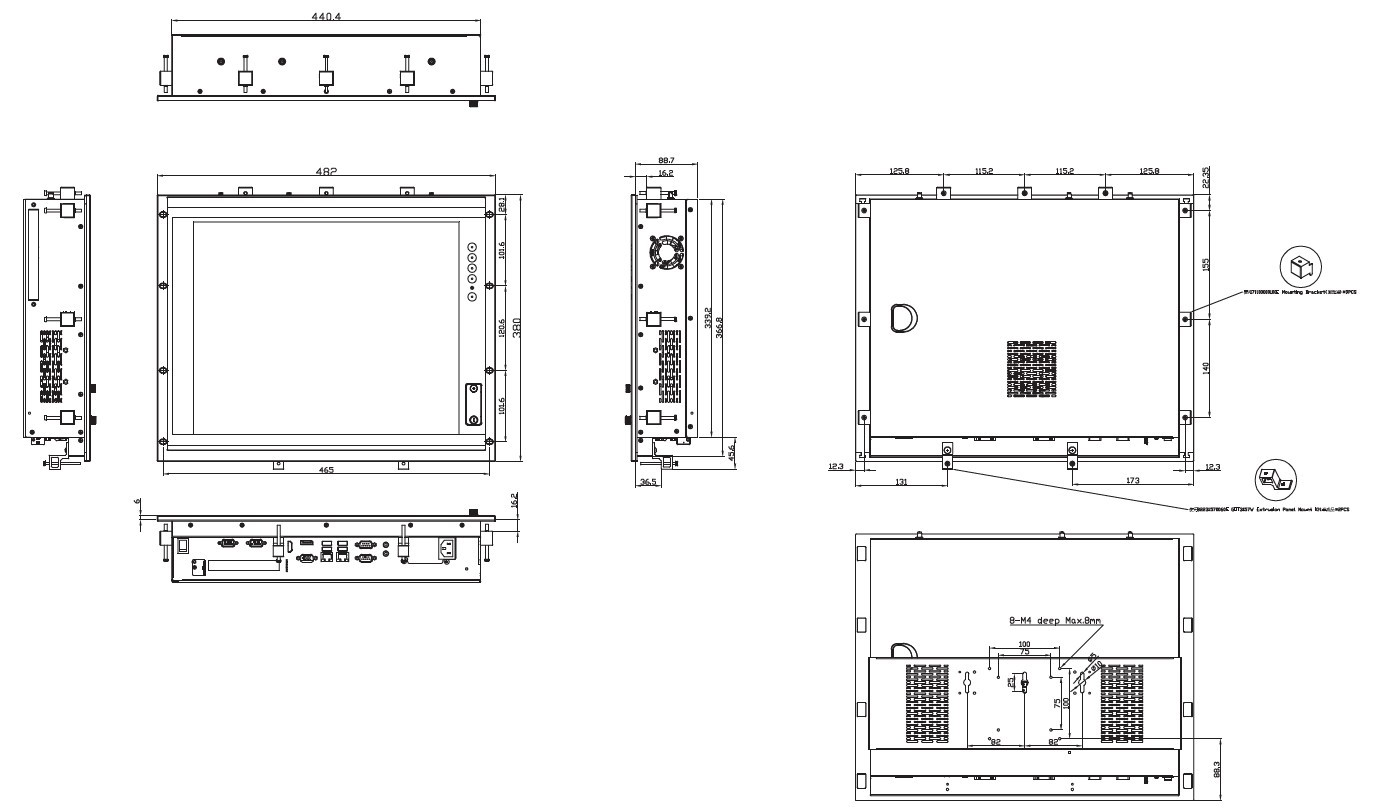

Dimensioner
482 x 94.7 x 380.8mm
Driftstemperatur
0C ~45C
Ethernet
2 x 10/100/1000 Mps (intel i219LM/i211AT)
Hukommelse
2 x 288 pin long DIMM DDR4-2133 max. 32 GB
Luftfugtighed
10% to 90% non condensing
Lyd
Mic-in/Line-out
Materiale
Front Aluminium with IP65/NEMA 4 rugged protection
Montering
VESA, WALL, RACK
OS SUPPORT
WIN 10

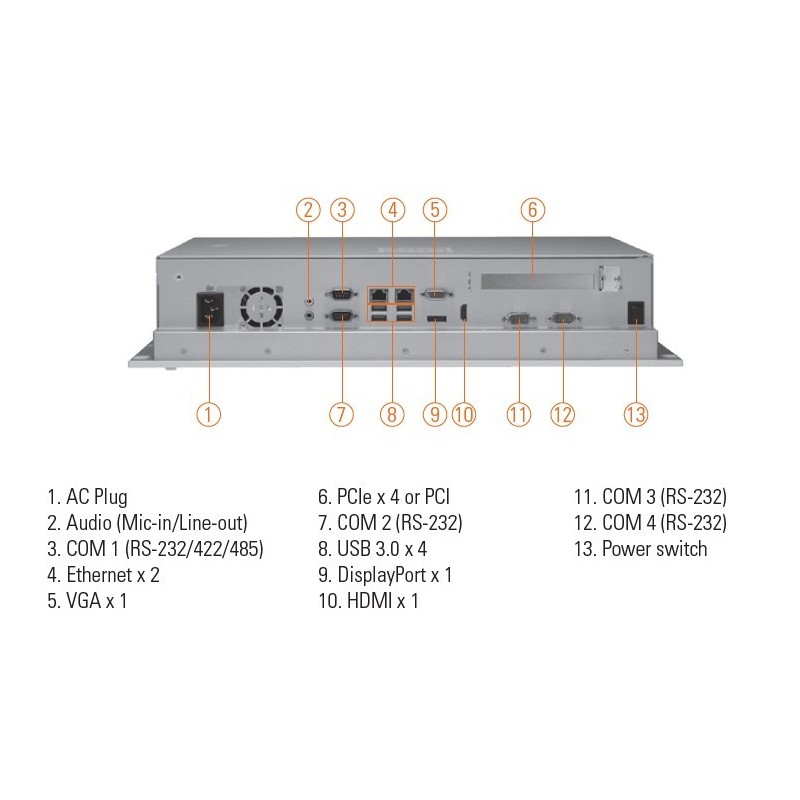

Porte
3 x RS232, 1 x RS232/422/485
Skærm
19" SXGA TFT LCD, 250Nits, 1280 x 1024 Pixels
Strømforbrug
157W
Strømforsyning
100 ~ 240 Vac, 270W
Touch
5-wire Resistive
Udgange
1 x HDMI, 1 x VGA, 1 x Display port
Udvidelser
1 x PCIex or 1 x PCI, when ordering
USB
4 x USB 3.0 (back), 2 x USB 2.0 (front)
Vikt
8 Kg / 10.4 Kg
Watchdog
255 levels, 1~255 sec.
