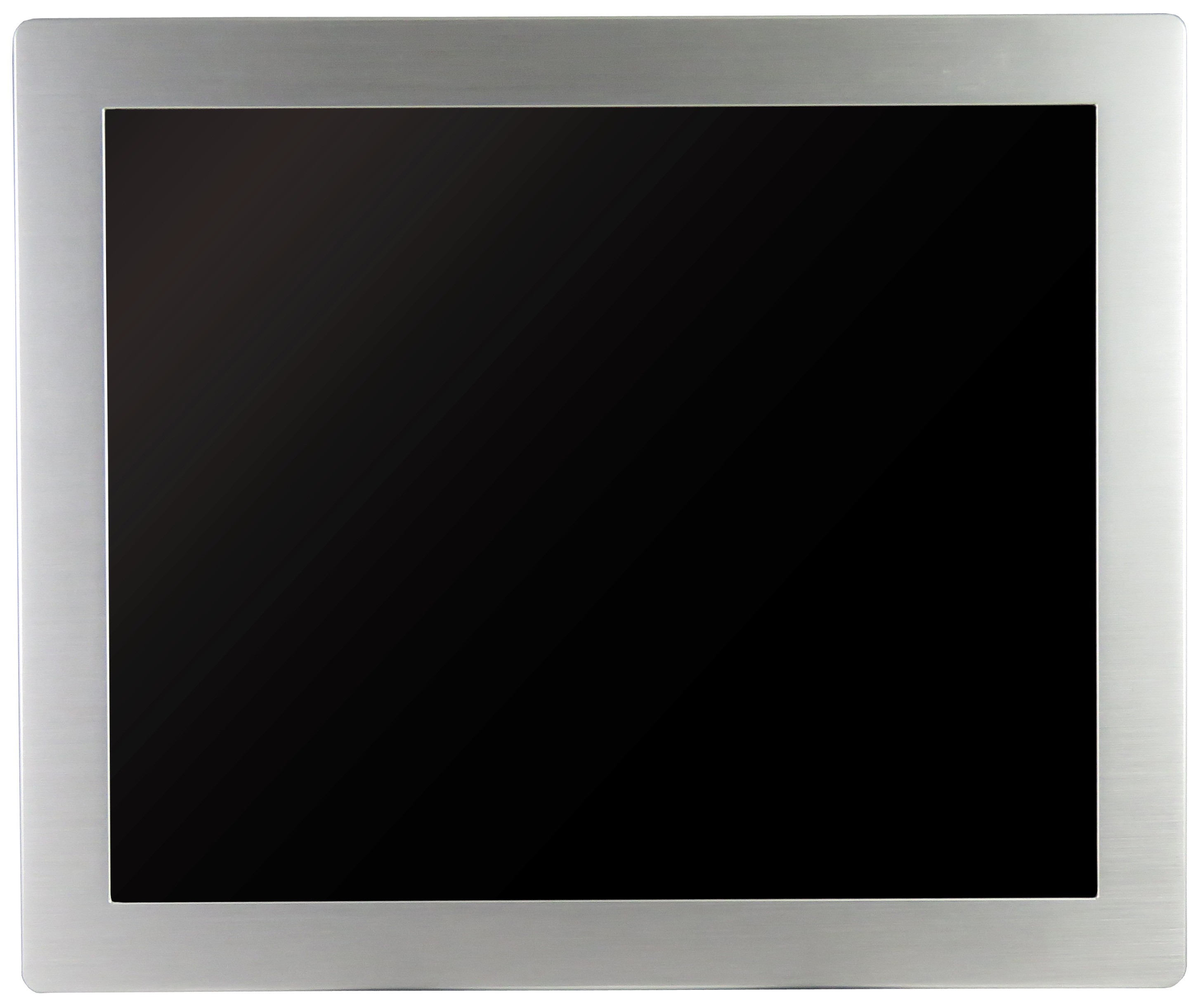

19" Panel PC, Resistit touch, IP65 Front, 6x Com, 6x USB, 6th Gen. Intel CPU

19"LCD  Resistive Touch
LGA1151 Socket 6th Generation Intel® Core™ i Processor
Intel® Q170 Express Chipset
4x USB3.0, 2x USB2.0
2x LAN
IP65 aluminium front
6x COM
1x DVI-D, 2x DP

PPC19Q170
Ring 042 14 10 85 för pris
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Kan leveres med CPU, RAM og HDD monteret. KOntakt salg for en samlet pris.

"BUILD TO ORDER" bygges på bestilling.

CPU
FCLGA1151 Socket 6th Generation Intel® Core™ i Processor (Dual / Quad Core, 3M ~ 8M Cache, 2.20 ~ 3.60 GHz, up to 45W TDP)
Övrig
SMART FAN, System Control & Monitoring, TMP (Infineon SLB 9660 TPM 1.2),
Approval
EMC & Safety CE, FCC Class A
Dimensioner

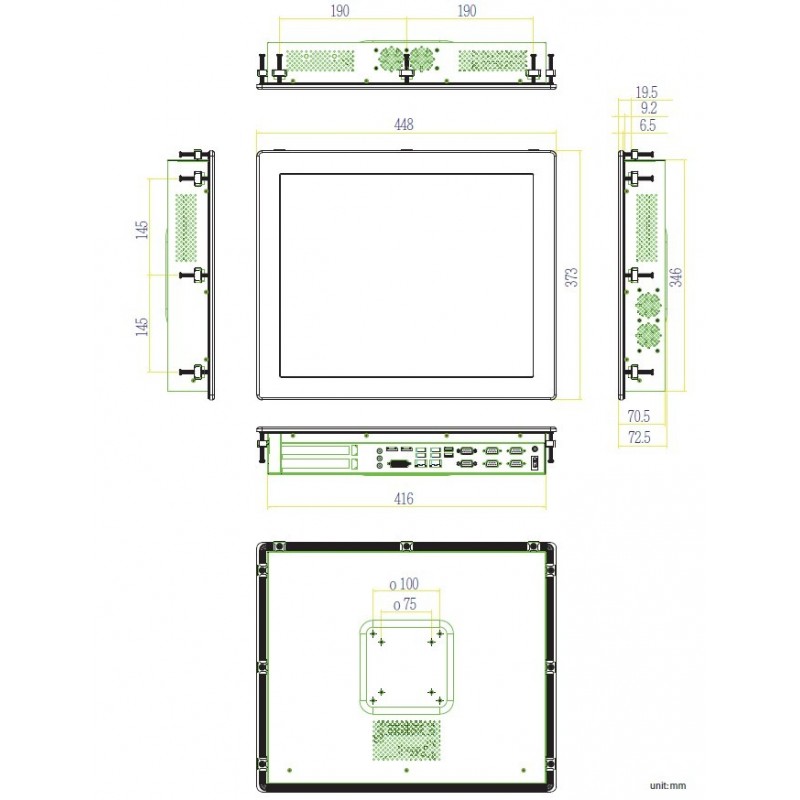

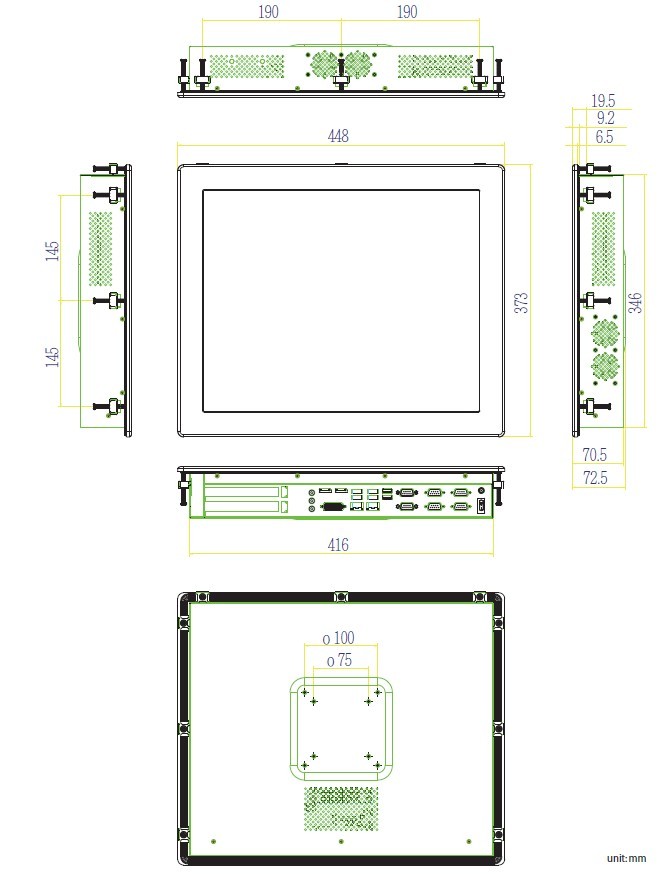

448 x 373 x 72.5 mm / 17.64″ x 14.69″ x 2.85″
Driftstemperatur
0°C ~ 50°C / 32°F ~ 122°F (Standard)
Ethernet
2x LAN (RJ-45 on rear, 1x Intel® I219-LM, 1x Intel® I210-AT)
Grafik
Intel® HD Graphics 530 Backlight LED Resolution 1280 x 1024 SXGA Brightness (cd/m2, typical) 250 Constract Ratio (typical) 1000:1 Color 16.7M Viewing Angle (L, R, H, L) 85°, 85°, 80°, 80°
Hukommelse
2x DDR4 1866/2133 SO-DIMM up to 32GB
Luftfugtighed
0% ~ 95%
Lyd
1x Line-in (on rear) 1x Line-out (on rear) 1x Mic-in (on rear)
Materiale
Aluminium Front Bezel, Metal Chassis
Montering
Panel Mount, VESA Mount
Opløsning
DVI-D 1 (on rear, 2560 x 1600 @ 60Hz) DP 2 (on rear, 4096 x 2304 @ 60Hz)
OS SUPPORT
Linux, Windows 10, Windows 7, Windows 8 Mechanical Characteristics

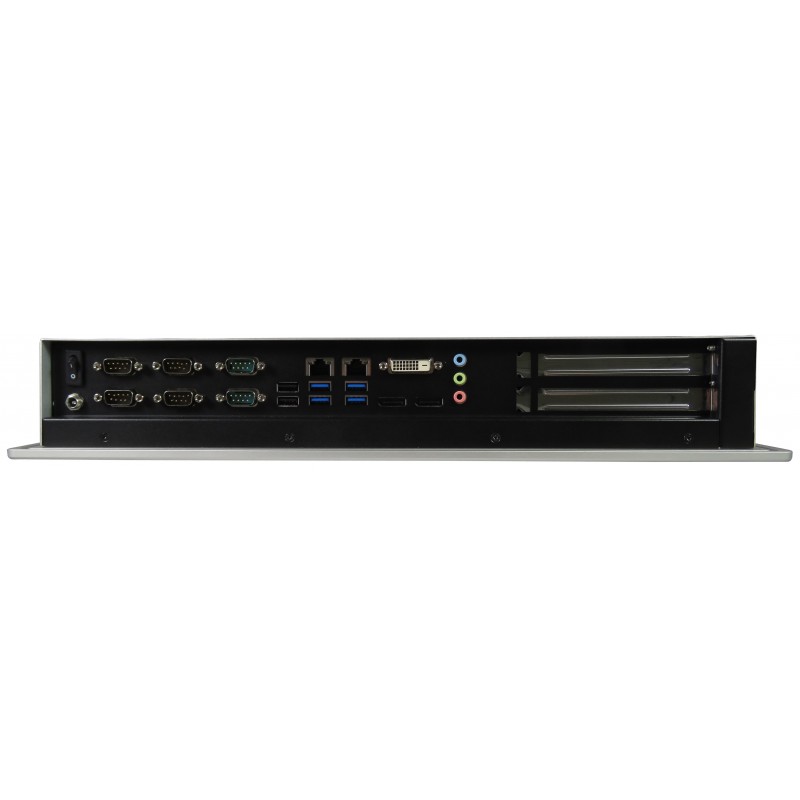

Porte
RS-232/422/485 3 (DB9 on rear) RS-232 3 (DB9 on rear) Expansion
Strømforsyning
Connector Lockable DC Jack (on rear) Input Voltage DC 12V Power Adapter AC to DC, 100V ~ 240V
Touch
5-wire resistive touch sensor
Udvidelser
2x PCIex8 add-on card slot up to 2x mPCIe (shared w/ mSATA) 1x SIM Card Cage (optional)
USB
4x USB3.0 (Type A on rear) 2x USB2.0 (Type A on rear)
Vikt
6800 g / 14.99 lb
