KVM Extender, 200 meter, VGA, PS2 över RJ45 kable, AdderLink X-Series

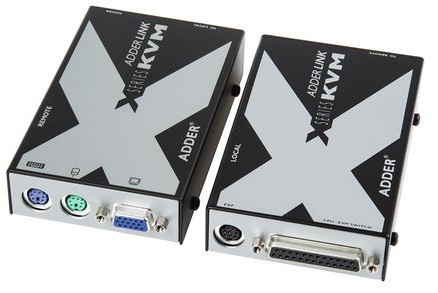

KVM Extender från ADDER - sändare rutan och mottagare box
haneövrera PC / Server 200 meter
Punk till punkt nätverkskabeln - UTP
Upplösning upp till 1600 x 1280 bildpunkter
5VDC 500mA nätadapter
erbjudanden. Begränsat lager!

BOOST-VGA200PS2
2 400  SEK
Exkl. moms
Kvantitet
Fysiskt i lager

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Convenient and remote control of a PC or KVM switch over 200m (650 ft) of UTP cable,
the X-KVM is designed with Cat6 in mind. The X-KVM is a sophisticated extender offering
flexible control over advanced cable systems.
Featuring auto bandwidth adjustment and skew reporting for today's challenging Cat6
structured cable systems, the X-KVM is designed to control a PC or KVM switch remotely
over UTP cable. Ideal for use in call centres, digital signage applications, data centres
and other high density environments where optimisation of rack space is essential,
the X-KVM is also future proof due to flash upgradeability via the keyboard port.

Driftstemperatur
0 - 40 °
Forsyning
5V DC, 2A power supply with an IEC power cable connection. 100-240VAC, Power Frequency: 50-60Hz, Usage: 5VDC at 500mA
LED
The remote and local units are fitted with a link/activity indicator that shows the link status and indicate keyboard and mouse data activity.
Opløsning
1600 x 1280 at distances up to 100 metres/330 ft, 1024 x 768 at distances up to 200 metres/650 ft.
OS SUPPORT
Compatible with all major operating systems including DOS; OS/2; UNIX; MS Windows 9x, NT, 2000, XP; NetWare and RS6000.
Rækkevidde
Up to 200 m using CATx cable ( x: 5,5e,6,7)
Stik
Supports PS/2 style keyboard, PS/2 style mouse, flat-screen and CRT style monitors with standard HD-15 video connectors.
