Slå på och av utrustning via LAN och Internet, Wifi, 4 x 230VAC IEC C-13
Enhet för att slå på/av via Internet.
Med Wi-Fi
4 x 230 VAC-uttag - IEC C-13
1 x C-14 ingång.
Webbserver inbyggd
Lösenord skyddat.

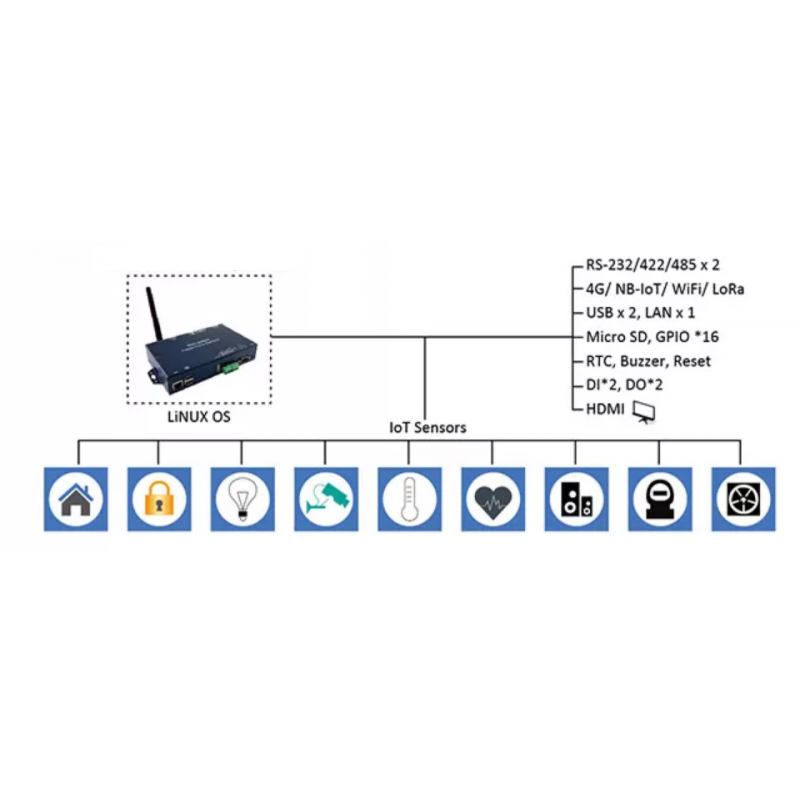

CPU QuadCore Cortex A72 (ARM v8) 64 bitars SoC 1,5 GHz
RAM 4GB LPDDR4 standard (1/2/8 option)
32GB EMMC Flash-minne
1x Micro HDMI
2x USB 3.0, 2x COM (1x RS-232/422/485, 1x RS-232/485 )
RTC : Realtidsklocka
1x D igital ingång Dry(open/close)/Wet(0-3V/10-30V) kontakt
1x digital utgång ( 120VAC @0,5A, 240VAC @0,25A, 30VDC @1A)
DC 9~32V ingång DC Jack eller terminalingång
• Wireless Bluetooth 5.0 BLE (optional)
• 5G M.2 key B USB 3.0 / PCI-E for 5G (optional)
• 4G Mini-PCIe : USB 2.0 for 4G / NB-IoT / LoRa (optional)
• M.2 key M for PCIe SSD (optional)
• Fan - DC 12V (optional)
• Wifi 802.11b / g / n / ac (2.4/5GHz) (optional)
Enhet för att slå på/av via Internet.
Med Wi-Fi
4 x 230 VAC-uttag - IEC C-13
1 x C-14 ingång.
Webbserver inbyggd
Lösenord skyddat.
Reläbox för att slå på/av 2 x 230 VAC utrustning via nätverket
Visar aktuell strömförbrukning och omgivningstemperatur på PC.
Webbserver inbyggd - lösenordsskyddad.
Tidsschema - tidtabell för att slå på/av
Tidtabell för på/av. 2 x 230VAC utgångar
Inomhus ljus-mätare, temperatur och fuktsensor 3 i 1
För energioptimering och byggnadsautomatiseringssystem
Mätområde av ljusstyrka: 0 till 20.000 lux
Temperaturområde: -20 till +60°C
luftfuktighet mätområde: 0 till 100% RH
Stöder DCON och Modbus RTU / TCP-protokoll
Stöder MQTT protokoll Ethernet-gränssnitt
Med RS485 / RJ45 Ethernet kommunikationsgränssnitt
Reläutgång: 6 Amp @ 250VAC
Strömförsörjning: PoE och 10 - 48VDC, ca. 2 Watt
Arbetstemperatur: 0 - + 75 ° C
Webbkonfiguration och firmware uppdatering via Ethernet
loft fäste
Händelse- och schemastyrd omkoppling 230VAC/10A
Noggrann strömmätning
Ingång för 2 givare - temp/fuktighet, tryck
RJ45 till Ethernet
NTP-funktion
Strömport på/av via HTTP(S), SNMP, ModbusTCP, Telnet, SSH, MQTT
1-kanals vakthund
Strömport tilldelad till Watchdog (ICMP/TCP), automatisk omstart startar
Strömförbrukningsmätning (kwH) med 2 energiräknare: en räknare räknar konsekvent, den andra räknaren kan återställas
Mätning av ström (A), spänning (V), aktiv effekt (W), skenbar effekt (VA) och reaktiv effekt (VAr)
Mätning av differentialström typ A (mA)
Mått: 120 x 65 x 53 mm
