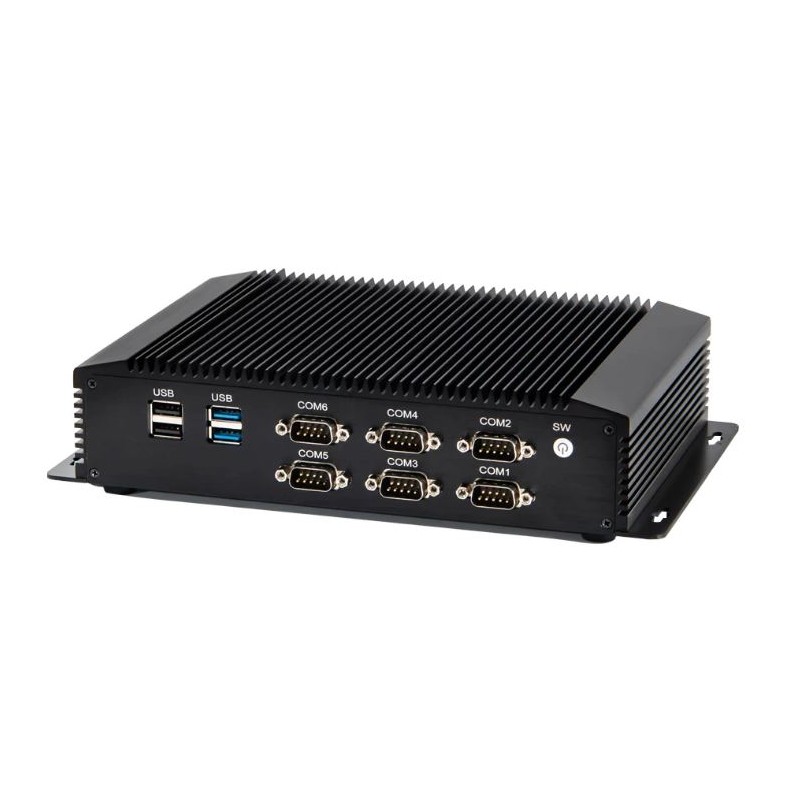

Fläktlös i5 Embedded PC, 2XRJ45, SIM, HDMI, VGA, LPT, USB, RS232/422/485, WiFi

i5 4200U
2 x Intel i213 Gbit RJ45
1 x SO-DIMM DDR3L Slot, Support 4GB/8GB
GPIO
2X Mini PCIe (Support WiFi, 4G Module)
LPT
6x Com (2 x RS232/422/485 BIOS select)
HDMI, VGA
8 x USB
Material Aluminium
TPD: 15W
OS Support: Win7, Windows 8, Windows 10, Linux
Auto Power On
230X175X50

EPC-I5-6S2L4GW
Ring 042 14 10 85 för pris
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Robust och stabil Industriel Embedded PC. Kan levereas med Celeron, i3,i5 eller i7 processor. Fläktkös design med aluminiumskåp som ger bra värmeavledning.

CPU
Intel Core i5-4200u
Chipset
Intel SOC
Övrig
Watchdog, Auto power on, RTC, Wake-on-LAN
Antenne
2 x inner RF cables and 2 x external antennas

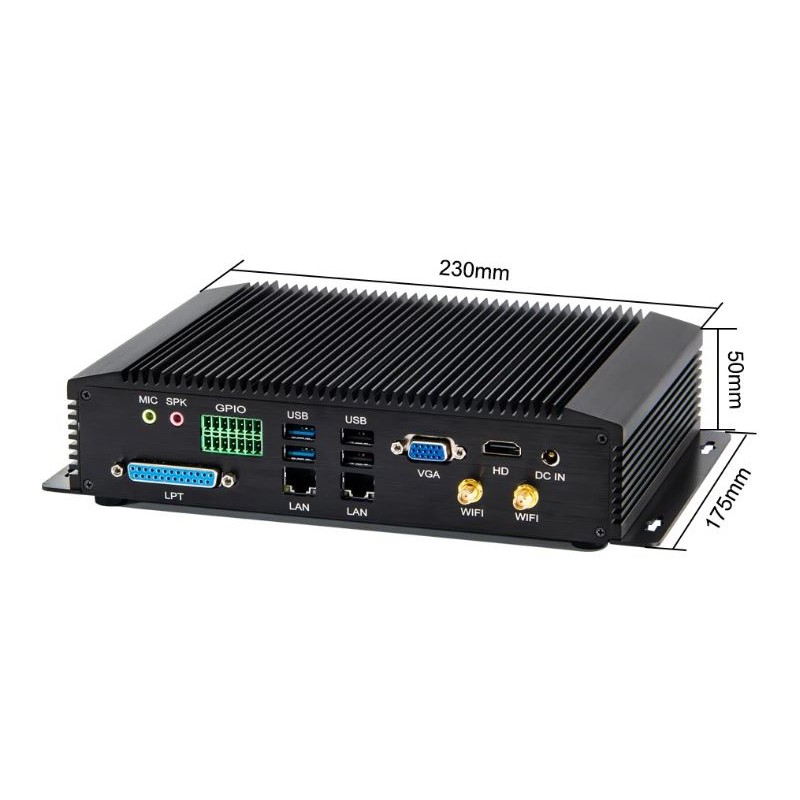

Dimensioner
230*175*50mm
Driftstemperatur
-10/+60Centigrade (32°F~140°F) needs special RAM and SSD
Ethernet
2xOnboard Intel i213 Gigabit Network Connection 10/100/1000Mbps BaseT LAN PXE
Forsyning
DC +12V~+19V, recommend 12V/5A
GPIO
8 x GPIO by Phoenix type Terminal Block
Grafik
Intel Haswell- ULT Integrated Graphics Controller Intel HD Graphics 4400
Hukommelse
1 x SO-DIMM DDR3L Slot, Support 4GB/8GB DDR3L 1333/1600, LPDDR3 1333/1600
Lyd
ALC662 sound chip, 6-channel Intel Lynx Point-LP HD Audio Controller
Montering
4 Mounting holes on case
Msata
1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
OS SUPPORT
Win7/8/10/Linux
Porte
6 COM, COM1 COM2 can change to RS232/422/485 from BIOS
Porte
1xLPT
SATA
1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
SIM kort
1x SIM Card slot
Udgange
1 x VGA, 1 x HD
USB
4 x USB2.0, 4 x USB3.0
Vikt
Net 1.25kg, Gross 2.0kg
Watchdog
Yes
