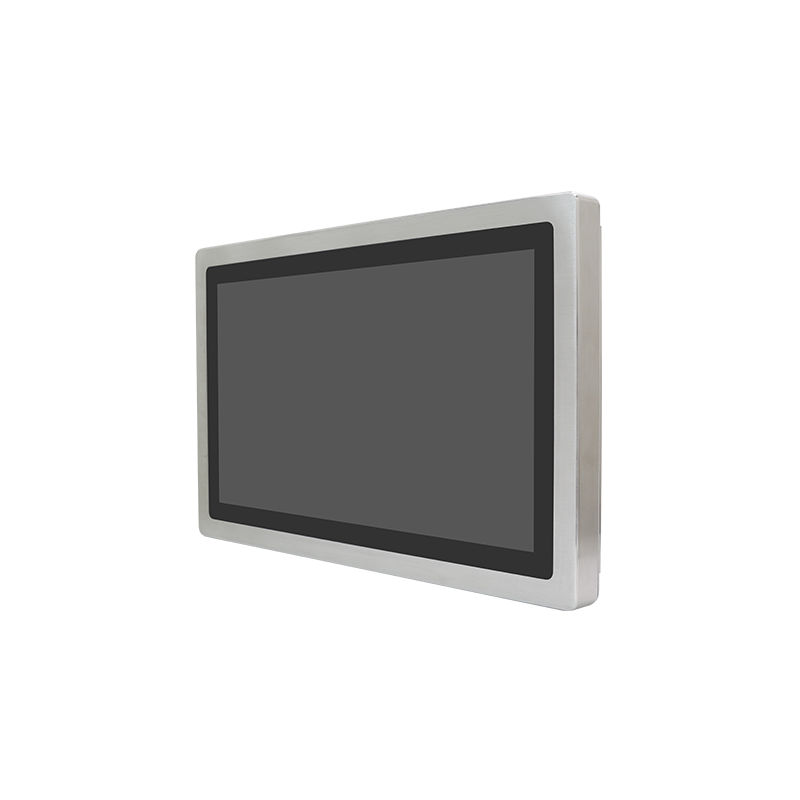

21,5" monitor, ATEx Zone2/22 godkänd, Projected Capacitive Touch, VGA, USB

21,5” TFT-LCD
1920 x 1080 upplösning
Projicerad kapacitiv touch via USB
VGA-videoutgång
Total IP66-klass med M12 vattentät kontakt
Strömingång 9-36VDC
Panelfäste & VESA-fäste
316 Stainless Steel
ATEX/IECEx Zone2, Zone22 och C1D2/C2D2/C3 certifierade

MON21.5-T-ATEX
Ring 042 14 10 85 för pris
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Certification:

CE / FCC Class A
ATEx / IECEx Zone2 Ex ec ic IIC T4 Gc
ATEx / IECEx Zone22 Ex tc IIIC T135°C Dc
Class I, Division2, Group A,B,C,D,T4
Class II, Division2, Group F,G, T135°C
Class III
ANSI/ISA 12.12-01-2013
CSA Std., C22 No213-1987



Dimensioner
571 x 362 x 75.1 mm
Driftstemperatur
-20~60°C
Forsyning
DC 9~36V, 1 x M12 3-pin for DC power connector with waterproof cover and chain
Lysstyrke
ca. 300 cd/m²
Opløsning
1920 x 1080
OSD

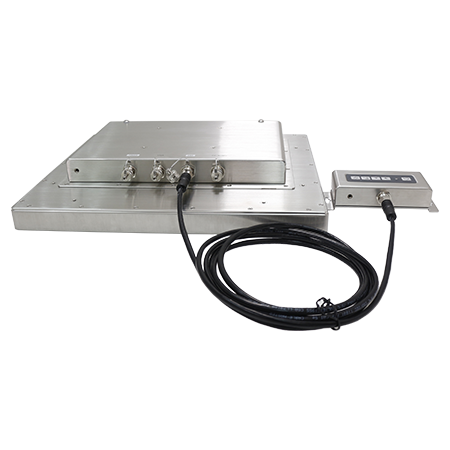

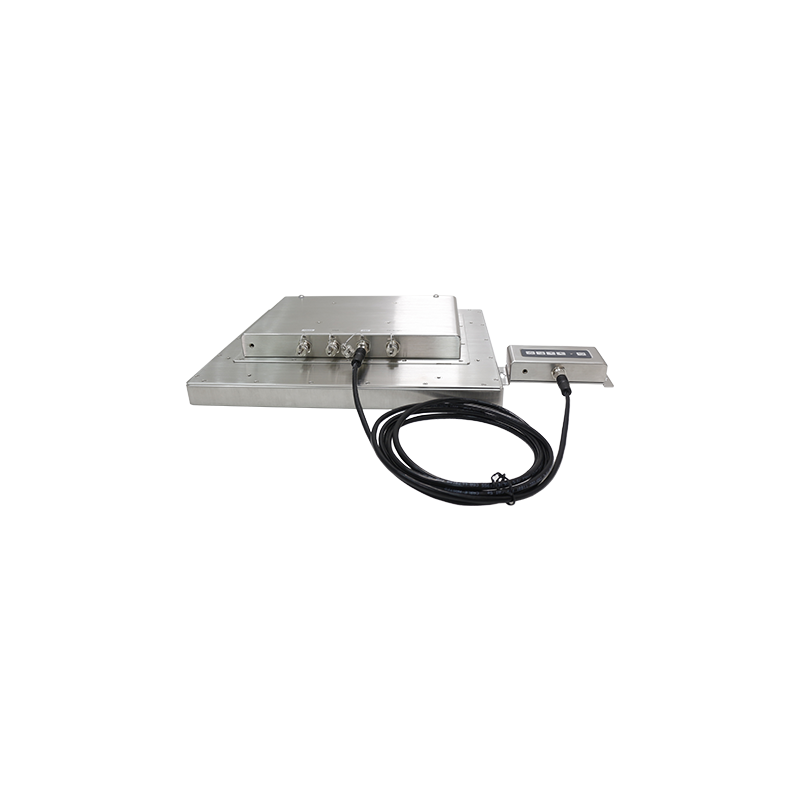

1 x M12 8-pin for OSD Cable & External OSD BOX with waterproof cover and chain
Touch
Projected capacitive touch
USB
1 x M12 8-pin for 2 x USB 2.0 for Touch Control with waterproof cover and chain
Vikt
12.3 kg
Certification
ATEx / IECEx Zone2 / Zone22
