EN50155/EN45545 certifierad 10:e generationens Intel® Core™-processor Järnvägsdatorsystem med M12-anslutning och dubbelt WWAN

Stöder 10:e generationens Intel® Core™ Desktop-processorer
AI-lösning för transport
Max. 128 GB RAM
2x Gbit Lan M12
4x USB
2x SIM-kortplats
2x 2,5" SSD, RAID 0/1/5
1Xmicro SSD
1x HDMI
1x DVI-D
1 x RS-485, 1 x RS232/485 isolerad
M12 kontakter
Upp till 10x GbE-portar (8x med PoE-kapacitet)
10G LAN (måste beställas special)
Stöder Intel® Movidus Vision Acceleration M.2-moduler
Stöder Wi-Fi 6 CNVi, dubbla WWAN-kanaler
1x USB Type-C med grafikutgång för snabb inställning och diagnostik
EN50155 (2021) / EN45545-2 certifierad

EPT-IX-GEN10
Ring 042 14 10 85 för pris
Kvantitet
På vägen in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question
CPU
10th Gen Intel® Core™ Desktop processors
Approval
EN50155: 2021, EN45545-2 CE/FCC class-A
Chok/Vibration
EN61373
Driftstemperatur
Operating Temp: -10°C~60°C (14°F~140°F)
DVI
1
DVI-D
Ethernet
2x M12 GbE option 10Gbit, Up to 10cGbe port (8 with POE) need to be ordered
Forsyning
Main: 72V/110VDC Second: 24V DC only, once the main power loses, switch to second power automatically
Lyd
1x 3.5mm green audio connector for Line-out
RAID niveau
RAID 0/1/5 supported, Max. 4x SATA devices
SIM kort
2
2x External accessible SIM socket
USB
4
1x M12 4-pin A-code for USB 2.0, isolated ,1x M12 4-pin A-code for USB 1.1, isolated, ,1x USB type-C with graphics (No PD function) ,1x USB3.2 Gen.2 type-A

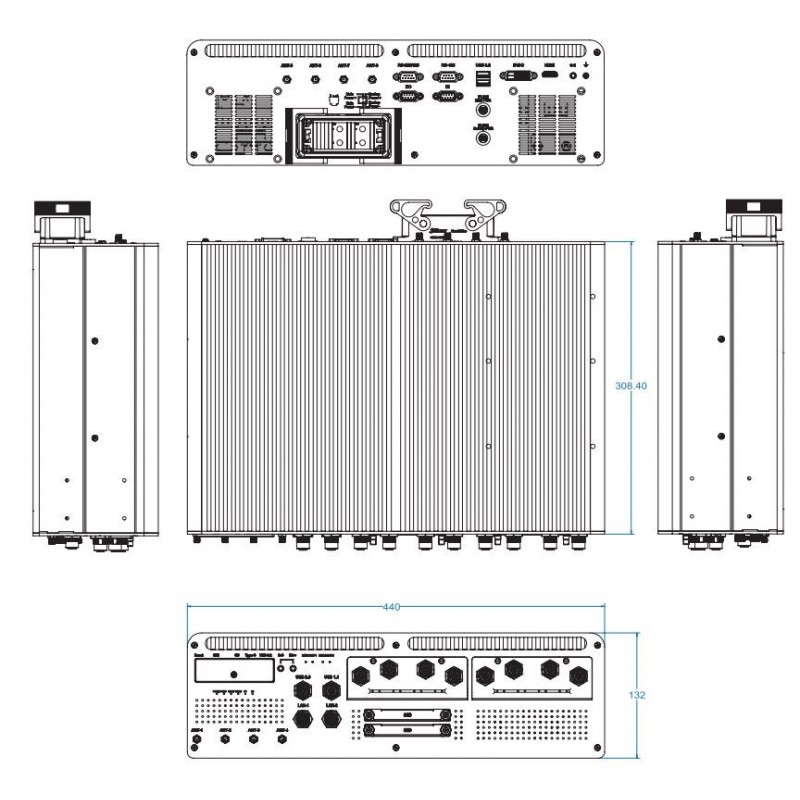

Dimension
482 (W) x 308 (D) x 132 (H) mm 18.97” (W) x 12.13” (D) x 5.2” (H)
Serial Porte
1x Male DSUB9 for RS-485, isolated 1x Male DSUB9 connector for RS-232/485, isolated 1x Female DSUB9 for 8x DO and ground by cable, isolated
RAM
2x DDR4-2666 SO-DIMM, 2x 8GB (default) Maximum size supported: 128GB
WiFi
Support wifi 6 CNVi, 4 x SMA antenna holes with cap.
