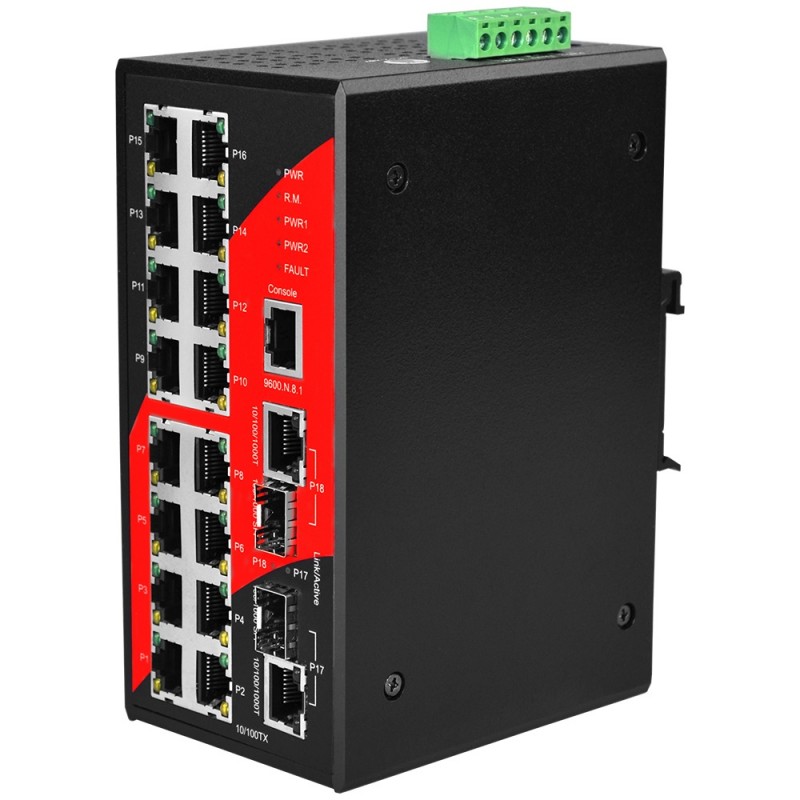

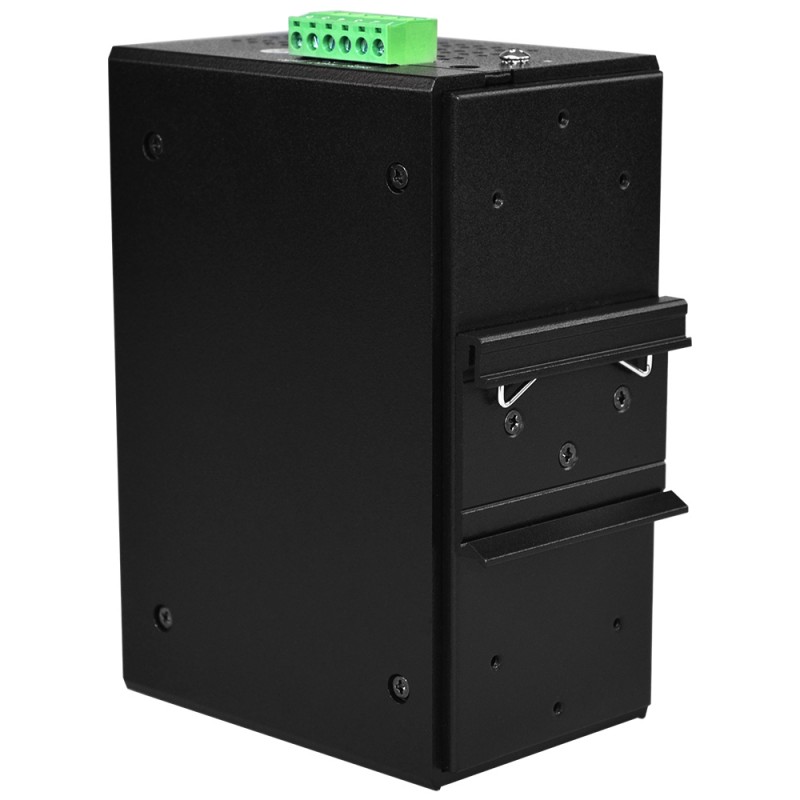

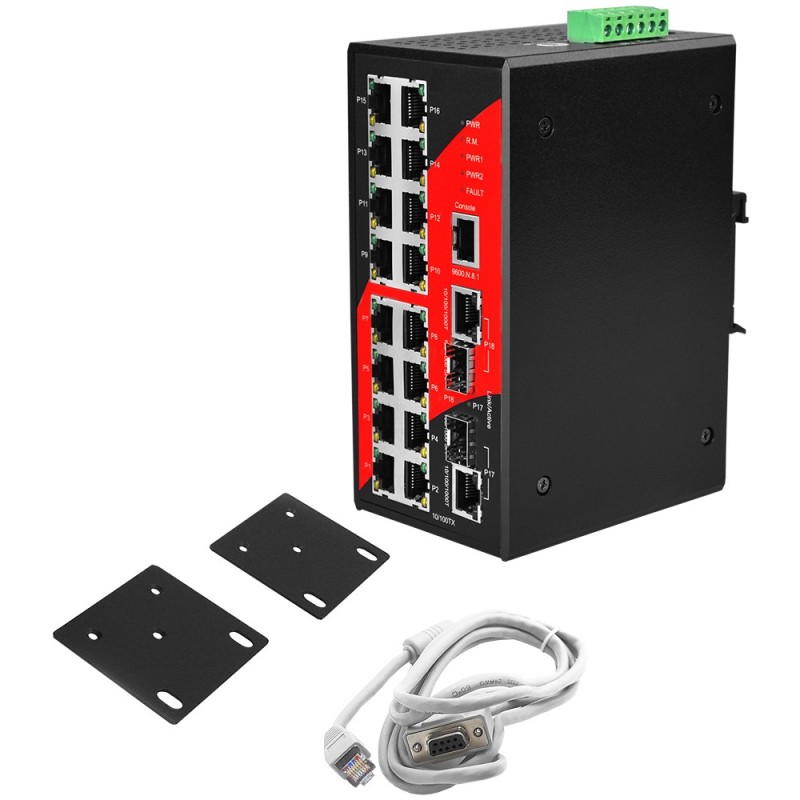

16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
Previous
Next
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring
16 Ports PoE + DIN rail mount, fiber interface 2 x SFP, SNMP Managed Industry Switch Extended temperature to 80°C,Redundant Ring

16 Ports Unmanaged switch 16 x RJ45 10/100 + 1Gbit SFP port, PoE, LAN, 240VAC WT:-40~80C

Extended Operating Temperature -40° ~ 80°C
16-Port 10/100TX + 2-Port 10/100/1000T/mini-GBIC Combo
7.2 Gbps Back-Plane (Switching Fabric)
Ethernet Ring Redundancy (Recovery Time <20ms)
IEEE 802.1w Rapid Spanning Tree & IEEE 802.1d Spanning Tree Protocol
IEEE 802.1x RADIUS
IEEE 802.1p Class or Service for Traffic Classification & Prioritization
QoS (Quality of Service)
Supports Port Based VLAN & IEEE 802.1Q Tag VLAN
IGMP with Query Mode for Multi-Media Applications
Port Mirroring for Traffic Monitoring
IP Address Security Management to Prevent Unauthorized Access
UL Class I, Division 2 Certified
IP30 Rugged Aluminum Case Design
DIN-Rail or Panel Mountable

20,792.00 SEK
Excl. VAT
Quantity
This product is no longer available for sale.
LÆG I KURV
Product number ESW16-POE-2SFP-DW
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Industrial managed gigabit Ethernet switches have exceptional performance and connect up to 10x faster than Fast Ethernet (10/100TX) with copper/fiber connectors to support high bandwidth applications. The managed gigabit switches in this collection come pre-loaded with standard Layer 2 network management software and support a user-friendly web console interface for easy setup. Our industrial managed gigabit Ethernet switches provide a high level of EFT and ESD protection that allows for secure operation in rugged industrial environments, including factory automation processes, ITS, power/utility, water/wastewater, and more. Feel free to contact our team today with any questions.
