4 Ports 10/100 / 1000Mbit RJ45 + 2 Ports 100 / 1000Mbit SFP Slot, Managed Switch, 12 - 48VDC and 24Vac

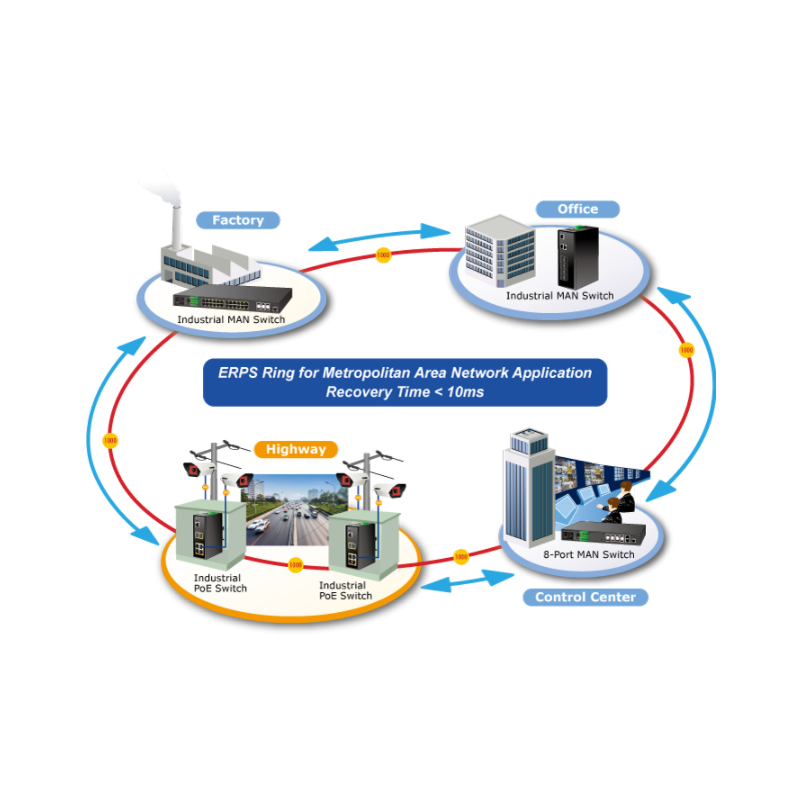

Real Ring, Redundant Ring of critical network
IEEE 1588 Time Protocol, supports MEF service and synchronous Ethernet
Supports MODBUS TCP protocol
Supports IGMP Snooping to 4 x 10/100 / 1000Mbps RJ45 ports
2 x 100 / 1000Mbit SFP ports
12 - 48VDC, redundant input
24VAC supply voltage is also possible
IP30 metal housing with DIN bracket
temperature range from -40 to + 75 ° C
4,121.60 SEK
Excl. VAT
Quantity
close
Specifications
| Operating Temp. | -40 - 75° |
|---|---|
| Forsyning | Dual 12~48V DC 24V AC |
| Materiale | IP30 metal case |
| Montering | DIN rail kit and wall-mount kit |
| Porte | 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| Slot | 2 1000BASE-SX/LX/BX SFP interfaces (Port-5 to Port-6) Compatible with 100BASE-FX SFP |
| Stik | Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Dimensioner | 32 x 87x 135 mm |
layer 2 features
- broadcast / multicast / unicast
- IEEE 802.1q tagged vlan
- up to 255 Vlans Groups, Out of 4094 VLAN Ids- Provider Bridging (VLAN Q-in-Q) Support (IEEE 802.1AD)
- Private VLAN Edge (PVE)
- Protocol-Based VLAN MAC-BASED VLANE VOICE VLAN
- Supports Spanning Tree Protocol
- IEEE 802.1d Spanning Tree Protocol (STP )
- IEEE 802.1W Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), Spanning Tree by VLAN
- BPDU Guard
Layer 3 IP routing features
- supports Maximum 32 Static Routes and Route Summarization
Quality of Service- IEEE 802.1p cos
- IP TO / DSCP / IP Precedence
- IP TCP / UDP Port Number
- supports Qos and In / Out Bandwidth Control on Each Port
- Traffic-Policing Policies on the Switch Port
- DSCP Remarking
mu LTICAST
- supports Igmp snooping v1, v2 and v3
- support MLD snooping v1 and v2
Security
- IEEE 802.1x Port-Based / Mac-Based Network Access Authentication
- Built-in Radius Client to cooperate with the Radius Servers
- Source Mac / IP Address Binding
- DHCP Snooping Two Filter Distrusted DHCP Messages
- Dynamic ARP Inspection Discards ARP Packets with Invalid Mac Address To IP Address Binding
- IP Source Guard Prevents IP Spoofing Attacks IP Address Access Management To Prevent Unauthorized Intruder
Management
- Console / Telnet Command Line Interface
- Web Switch Management
- SNMP V1 and V2C Switch Management
- SSH / SSL and SNMP V3 Secure Access
- supports Maximum 32 Static Routes and Route Summarization
