RFID reader to 125kHz cards. IP64. RS232 / RS485 / Wiegand. Access control.
Previous
Next
RFID reader to 125kHz cards. IP64. RS232 / RS485 / Wiegand. Access control.

RFID reader to 125kHz cards. IP64. RS232 / RS485 / Wiegand 26. Relay output managed from PC. Access Control etc.

RFID reader for RS232 / RS485 / Wiegand
IP64
Range up to 60cm
Serial communication to / from PC
Relay output (24VDC / 2A) Serial Enabled from PC
Baud Rate : 9600, 8, n, 1
Dim: 210 x 210 x 28 mm
Extended temperature -10 - 60°C
supply: DC 12V, 350mA

5,084.80 SEK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number RFID-R60A
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -10°-60°C
Andet Audio/ Visual Indication : Internal LED and Buzzer External buzzer control also available
Forsyning 5~13.5 volt regulated DC,350 mA . A linear 12 volt regulator is best used ,but the unit will work with a wide variety of supplied
Frekvens 125KHz ,ASK
Interface Wiegand 26 bits MSR ABA Track2 RS232 RS485 (optional version)
Rækkevidde Up to 60 cm with ISO card in ideal conditions
Dimensioner 210 x 210 x 28 mm

Residual sale.
Technical demanding product. Product Support Phone / Mail Only for Payment.

Andre produkter i samme kategori:

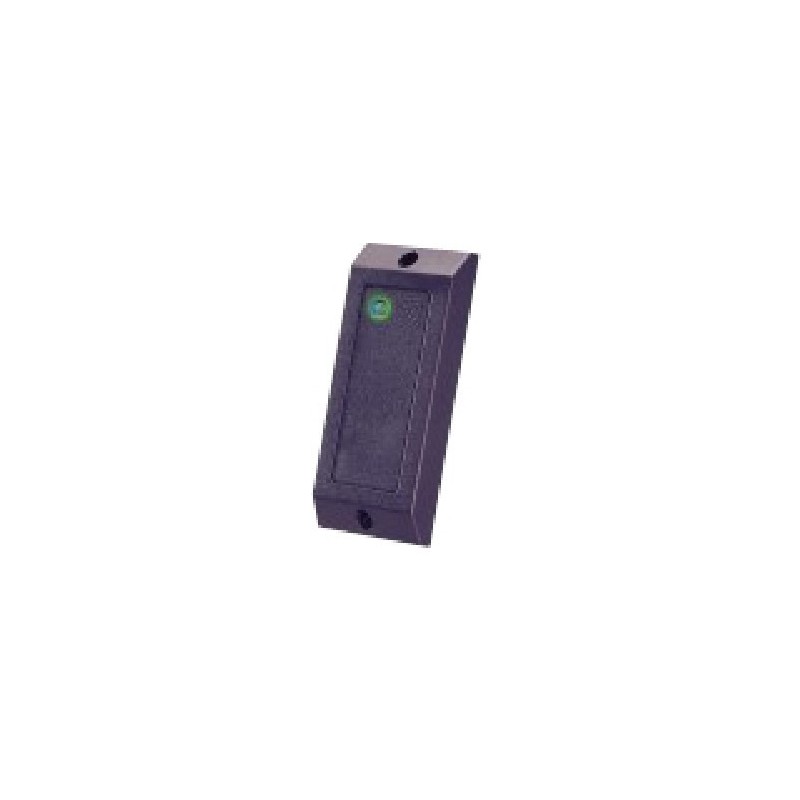

Outdoor EM 125khz RFID reader. UID is 40 bits, 10 digit ASCII. RS232 and Wiegand.
RFID reader EM 125khz. UID is 40 bits, 10 digit ASCII. RS232, Wiegand 26 Bit, LED, Buzzer. Waterproof. 12vdc.

125khz RFID reader for outdoor mounting on wall
sealed with hardened epoxy - cable mid rear
EM4000 125khz RFID Reader for wall mounting
reading distance 0 - 5cm, depending on roof size
40 bit code, 10 digits ASCII (Decimal)
RS232, only TX. GND
9600, 0 Start, 8 Data, 1 Stop, Non Parity, FLOW: HW
Wiegand 26bit format
LED Indicator and Buzzer Control Manager
Supply voltage: 12VDC / 200ma
Cable length 1 meter (8 Core)
Goal: 114 x 46 x 13 mm

1,515.20 SEK
Item Number: RFID-R10N
Physically in stock
ADD TO CART
Quick view
Adhesive RFID Tag 125kHz - Round, Waterproof IP68, 25mm
RFID TAG 125kHz EM designed as Adhesive plast plate, round 25 x 1.7 mm. IP68

TAG, round piece, self-adhesive
1.7 x 25 mm
TAG is waterproof

104.00 SEK
Item Number: RFID-TAG-BRICK
Physically in stock
ADD TO CART
Quick view
RFID TAG 125kHz EM Cylinder - Waterproof Black Plastic Design
RFID TAG 125kHz EM designed as Cylinder in Black Plastic

TAG, cylinder, black
4.5 x 30 mm
TAG is waterproof

115.20 SEK
Item Number: RFID-TAG-CYLIN
Physically in stock
ADD TO CART
Quick view
125kHz RFID TAG designed as keychain in blue EM standard
RFID TAG 125kHz Em designed as Keychain in Blue

Tag, key ring
target: 35 x 2 x 4 mm
with engraved UID code
tag is waterproof

44.80 SEK
Item Number: RFID-TAG-KEY-EMB
Physically in stock
ADD TO CART
Quick view

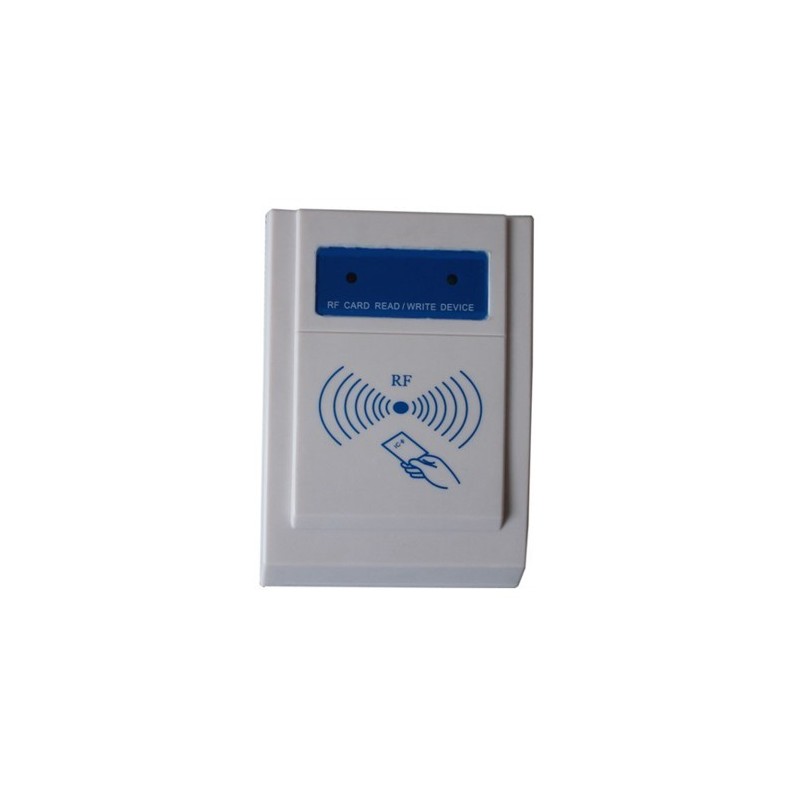

TCP/UDP netværks RFID læser V1, 125KhzforLæser
