TCP/UDP netværks RFID læser V1, 125KhzforLæser
TCP/UDP netværks RFID læser V1, 125KhzforLæser

RFID reader 125kHz over network, TCP / UDP. Supports different subnet. TCP server. Reader Config SW - 5VDC

10/100M Ethernet interface
TCP Server, UDP,  DHCP
Til 125Khz ID Kort
Forsyning: 5V DC PSU max 300MA

2,064.00 SEK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number RFID-RM-ETH
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. Working temperature -15～75℃, Storage temperature -25～85℃
Andet Fast response to HID card, Real-time transmission. Fully support HID and its compatible card
Forsyning 5V DC power supply, low power consumption less than 300MA
Netværk Support Network protocol such as TCP Server, TCP Client, UDP, DHCP etc
Rækkevidde Effective distance is larger than 5cm
Stik RJ45 og DC interface
Tilslutning Support multi-to-one visit in LAN. Support internet and transmission between different subnets
Dimensioner 100 x 140 x 30mm

Kortlæser baseret på TCP / IP-netværk .
Kan nemt tilsluttes Ethernet-netværk (LAN, WAN, MAN). Læser RFID -kort og via forespørgsel kan ID
hentes via Ethernet.

Andre produkter i samme kategori:

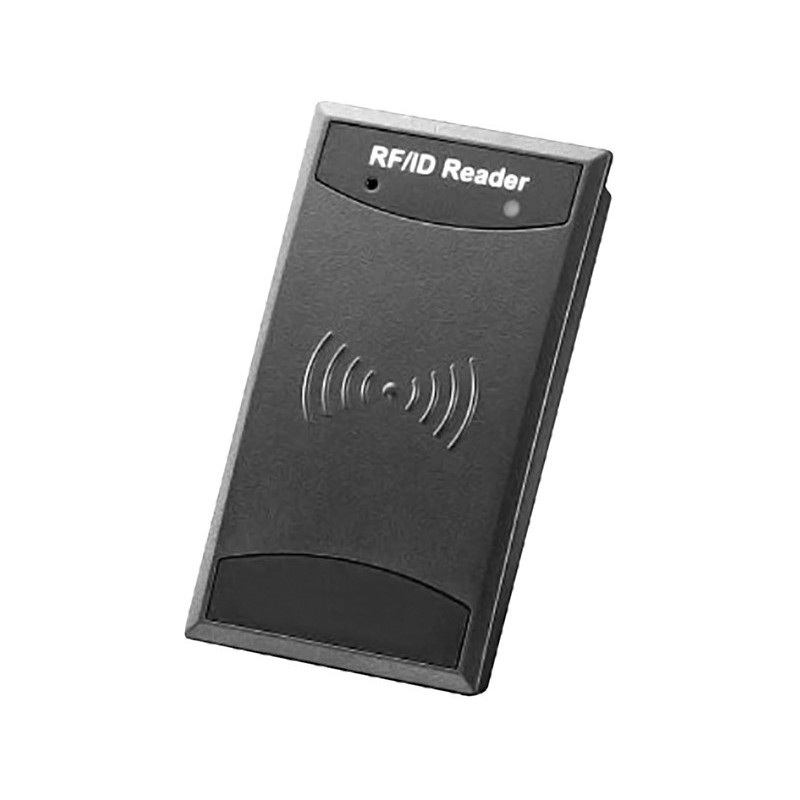

125khz RFID reader for wall mounting, RS232, Wiegand, 10 digit ASCII (Decimal)
125kHz RFID reader for wall mounting, RS232, Wiegand, 10 digimal), reading distance 0-20cm. 5 - 12vdc preferably linear

RFID Reads 125khz Em-Marin
Em 4100
64 Bit Manchester Coding
10 digit ASCII
RS232 - Only TX and GND
Wiegand Interface
Reading distance: 0 - 20cm Depending Of tag
Supply voltage: 5 - 12VDC
Use liniar power supply (not switch mode)
interface cable from the back
IP67
Goal: 78 x 43 x 15 mm

1,646.40 SEK
Item Number: RFID-ER
ADD TO CART
Quick view

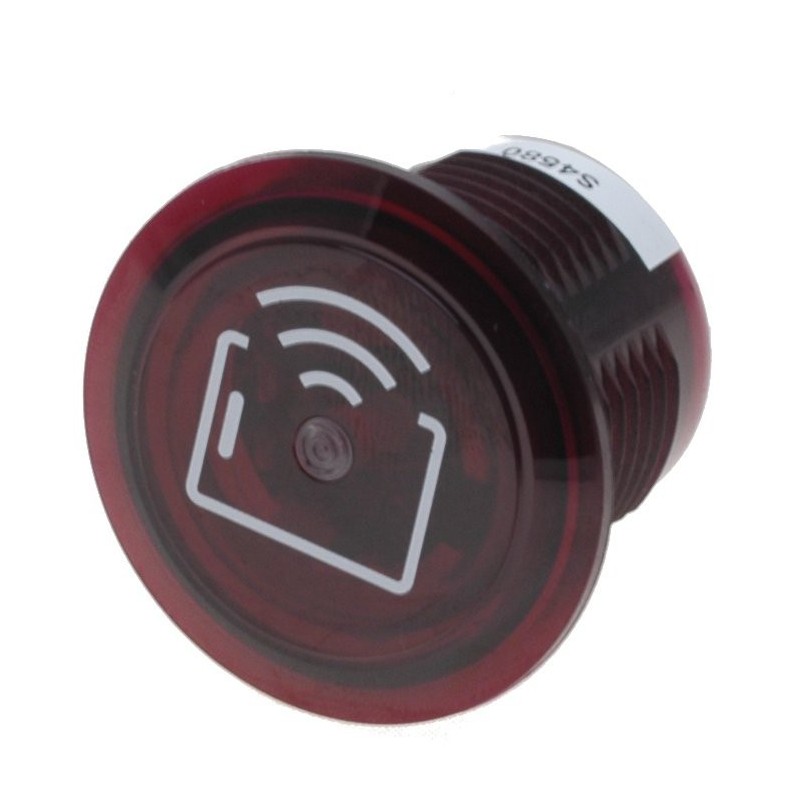

RFID Reader, EM standard 125kHz, to RS232, mounted in a wall in wall, frame etc.
RFID Reader 125kHz EM Round, 40bit HEX, RS232, code is sent to the COM Port Register. 9 - 12VDC.

RFID 125kHz reader with RS232
EM 4xxx Standard Tag (40 bit HEX)
Mounting in Ø 31 mm Hole
Length from Resess: 27 mm
Resess Width: 40 mm
RS232 , 9600, N, 8, 1
9 - 12VDC / 50mA
Temperature: -10 - + 70 ° C
Material: PBC
IP54 from front

854.40 SEK
Item Number: RFID-R4
Physically in stock
ADD TO CART
Quick view
125kHz EM RFID reader with USB HID. Desktop with card slot. Can be programmed
125kHz EM RFID reader with USB HID. Desktop with card slot. Can be programmed as Decimal or HEX. Pre/post grades.

125kHz EM 4xxx reader with USB
USB HID (plug and play)
Powered from USB
Additional purchases from Decimal to HEX, normal or reverse
Additions with start and or stop character
Supports: EC standard 125kHz
Dimensions: 100 x 65 x 23 mm
Material: ABS
REMEMBER: Order the desired version - additional purchase

1,604.80 SEK
Item Number: RFID-RM-G
Physically in stock
ADD TO CART
Quick view
Outdoor EM 125khz RFID reader. UID is 40 bits, 10 digit ASCII. RS232 and Wiegand.
RFID reader EM 125khz. UID is 40 bits, 10 digit ASCII. RS232, Wiegand 26 Bit, LED, Buzzer. Waterproof. 12vdc.

125khz RFID reader for outdoor mounting on wall
sealed with hardened epoxy - cable mid rear
EM4000 125khz RFID Reader for wall mounting
reading distance 0 - 5cm, depending on roof size
40 bit code, 10 digits ASCII (Decimal)
RS232, only TX. GND
9600, 0 Start, 8 Data, 1 Stop, Non Parity, FLOW: HW
Wiegand 26bit format
LED Indicator and Buzzer Control Manager
Supply voltage: 12VDC / 200ma
Cable length 1 meter (8 Core)
Goal: 114 x 46 x 13 mm

1,515.20 SEK
Item Number: RFID-R10N
Physically in stock
ADD TO CART
Quick view
Waterproof Dual Band RFID reads 125kHz, 13.56MHz, NFC, EM400X, MIFARE. 10 characters decimal ascii. HID
Dual Band RFID reader 125kHz, 13.56MHz, NFC, EM400x, Mifare. 8-10 characters Decimal/HEX. HID. DIP switch. USB. Waterproof

Dual band RFID card reader for USB - Decimal
10 characters decimal (ASCII) - 40bit
125 kHz, 13.56 MHz, NFC
125khz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - Keyboard Emulation
Reading distance: Up to 10 cm
Align via USB
USB interface
Dip-SW to ID format setting - see Table
Environment: IP67 Waterproof, outdoor mounting
operating temp. -25 ° to + 70 ° C
target: 88 x 56 x 18 mm

Call +45 56 66 20 20 for price
Item Number: RFID-D51USB-D10
ADD TO CART
Quick view
Dual Band RFID reader 125kHz, 13.56MHz, NFC, EM400x, Mifare and Desfire
Dual Band RFID reader 125kHz, 13.56MHz, NFC, EM400x, Mifare. 8-10 characters Decimal/HEX. HID. DIP Switch. USB. Desktop

Dual Band RFID card reader for USB - Decimal/HEX
8-10 characters Decimal/HEX - 32/40bit
125 kHz, 13.56 MHz, NFC
125kHz: EM4001, EM4002, EM4200
Mifare: ISO 1443A/B/15693
HID - keyboard emulation
Reading distance: up to 10 cm
Supplied via USB
USB interface
ID format setting with DIP switches - see diagram
Hard copy form with the product
operating temp. -25° to +70°C
Dimensions: 88 x 56 x 18 mm

1,584.00 SEK
Item Number: RFID-D5USB-D10
Physically in stock
ADD TO CART
Quick view
RFID Duplicator, 125kHz / Mifare / NFC reads / writes with USB interface. Can clone uid.
RFID Duplicator, 125kHz / Mifare/NFC reads / writes with USB interface. Can clone UID to t5577 RW RFID TAG

RFID Copy Reader / Writes to T5577 RW Tag
interface: USB
Work voltage: 5 VDC
Work current: 200mA
Standby Stream: 50mA
Normal current: 100mA
125kHz, 13,56MHz Mifare / NFC
Compatible with CCID and PC / SC
IC / ID Dual Frequency Replication
Supporter ID125K, 8800, 5200, 4305, 5577, 8265 Card
Support UID, Fuid, Cuid, UFUID
IC Semi-Encrypted Card, IC Full Encryption Card
Dim: 108 (L) x 68 (W) x 12 mm (H)

1,198.40 SEK
Item Number: RFID-KOPI-USB
Physically in stock
ADD TO CART
Quick view
RFID Handheld RFID reads 125kHz. For rounding guards. Memory for 14,000 readings with date and time
RFID Handheld RFID reader 125kHz. For rounding guards. Memory for 14,000 readings with date and time. Incl. Guard software.

Personell who shall document the route with the date and time
RFID TAGs placed at check-points and has unique ID
RFID TAG is 125kHz EM400X
guard pointing toward Days and press the scan button
Each TAG reading acknowledged with short vibration
Operation with a pressure
Journal memory: approximately 14,000 items
battery - easy to replace
up to 55,000 scans at full battery
interface is USB
Operating temperature: -10 to + 55 ° C
Patrol Tour Manager software included

8,524.80 SEK
Item Number: RFID-PATROL-U
ADD TO CART
Quick view
