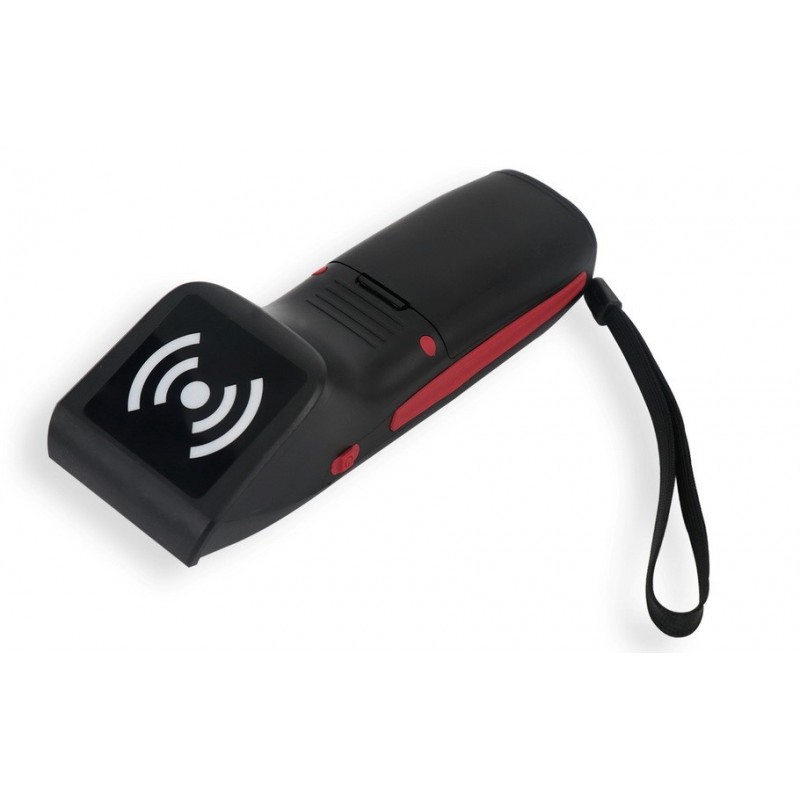

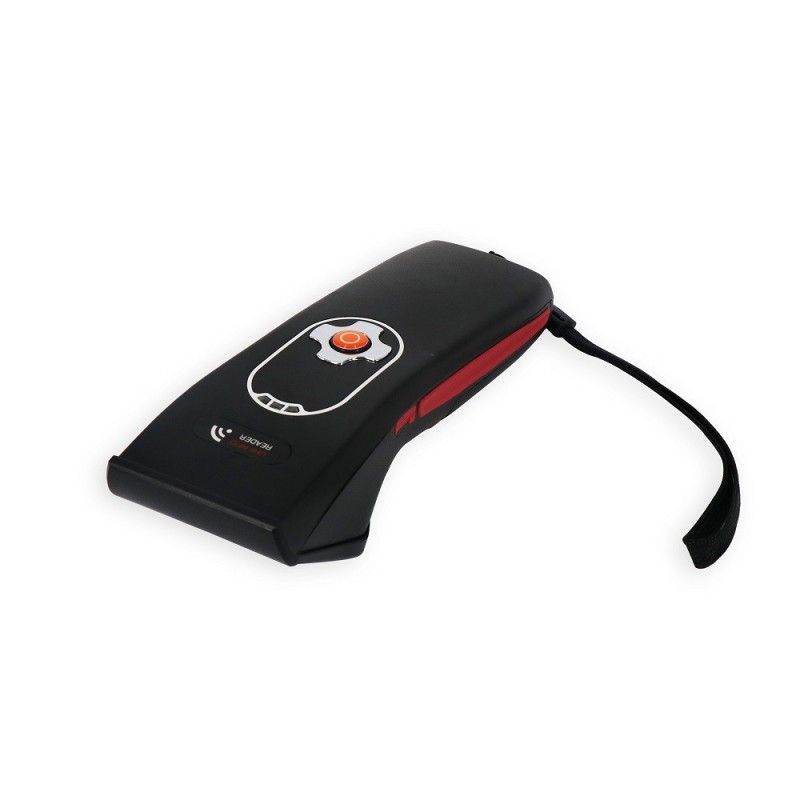

Bluetooth handheld UHF RFID reader/writer

Long Range 2.45GHz RFID reads and writes for 140 m Range
Programmable parameter
1 x RJ45 (10/100 Mbit)
1 x RS232 (RX, TX)
1 x RS485 2-wire Protocol: ICMP, ARP, IP, TCP (Server / Client), UDP, DHCP, HTTP
Supply voltage: 7 - 15 VDC / 4 Watt
Dimensions: 107W x 138h x 30D (mm)
Weight: 222g
easy installation

For passive UHF tags 865MHz
Supports ISO18000-6B, ISO18000-6C
RF power: 0.1 - 1 Watt
TAG reading is controlled via software commands
Interface: RS232, RS485 and Wiegand 26/32
Circular polarized antenna
RS-232, RS-485, Wiegand 26Bits/32Bits
5V DC power supply / 2 Watt
Dimensions: 220 x 220 x 50 mm
Weight: 1.5 kg
IP65

2.4GHz RFID reader with up to 200 meters
Omni-directional (SMA)
RS232, 10 / 100M Ethernet interface
Optional: GPRS or WIFI
Optional: 2 channel relay, 2 channel trigger input
Development kit (C ++, C #)
Compatible with active and passive tags
0-100m radius (depends on power output)
can identify 300 tags time-consuming
IP65
DC 5V power supply, 300mW
dimensions: 190mm × 120mm × 40mm without antenna
Dimensions: 320mm × 226mm × 133mm with antenna
Weight: 2 KG
Operating temperature: -40 ℃ ~ + 60 ℃
API interface for fast integration with existing software

Outdoor UHF RFID reads and writes
for Passive UHF 865MHz TAGs
TAG protocol: EPC Class 1 Gen 2
ISO 18000-6C
Reading/writing is controlled via software commands
Software App Platform: API (C ++, C #) Development Kit
Up to 10 m Reading distance, depending on UHF Tag
built-in 8DBI antenna, circular polarity
IP67 Plastic cabinet
Operating temp: -40 - + 75 ℃
150 ~ 240VAC / 50Hz adapter with 12VDC / 3A out
Dim: 259 × 259 x 100mm (L × B × H)

866 - 868MHz CE, equipped with 12dBI linear antenna
EPC Class 1 gene 2 (ISO18000-6C)
from 0 ~ 20 meters reading distance (depending on the surroundings)
from 0 ~ 7 meters of writing distance ( Depending on the surroundings)
Linux OS, Indy R2000 RFID chip, fast and precise reading rate
Ethernet connection
445 × 445 × 100 mm (l × W × H)
Operating temperature: -20 ~ + 60 ° C
IP65
Option: RS232 / 485, USB, GPIO, Wiegand 26/34, 4G LTE and WiFi
Option: Poe

Combatible with EPC Class 1 Gen 2
TAG Type: ISO-18000-6C
Support up to 860MHz (Europe) UHF
Reading distance: Up to 20 cm
Writing distance: Up to 15cm < Br> Built-in antenna
Supply voltage: USB from PC
API Software Developers Included
Built-in LED Buzzer
Operating temperature: -20 to + 65 ° C
Dimensions: 105 x 72 x 16 mm

RFID-læser til passive RFID-tags, 865MHz til USB med HID

Top-class scanner for item and product registration
Professional Multi Reader and Writer for RFID and Barcode 1D/2D/QR etc.
Powerful circular polarized antenna
UHF RFID read and write up to 25 meters, depending on TAG
UHF TAGs are passive - without a battery
Reads NFC and Mifare TAGs
Reads up to 900 TAGs per second
Barcode reader CCD: 1D, 2D, QR codes
Access to the APP Center with programs and tools
13MP camera with flash
5.2" Display - 1920 x 1080p with touch
Communication: dual band Wifi, Bluetooth, 4G LTE
Dual SIM or Single SIM and Micro CD card
GPS/AGPS, GLONASS
Battery: 8000mAh Li-ion (approx. 12 hours of operating time)
IP65 tight. 1.5 meter drop tested
Operating temperature: -20 - +50°C
