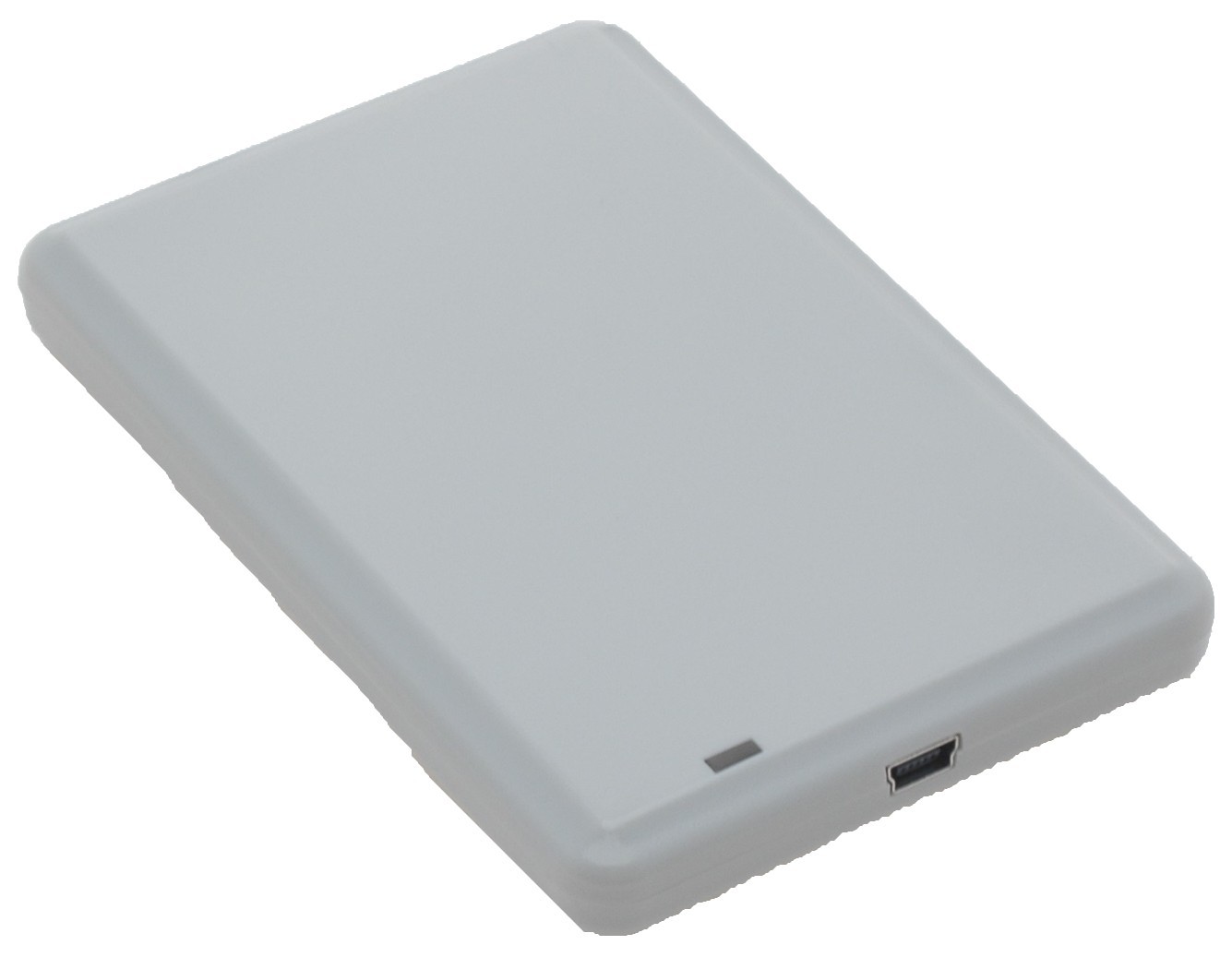

UHF RFID 865 MHz Reader for Passive TAGs, USB - Virtual Com Port, 860 - 868MHz

2.4GHz RFID reader with up to 200 meters
Omni-directional (SMA)
RS232, 10 / 100M Ethernet interface
Optional: GPRS or WIFI
Optional: 2 channel relay, 2 channel trigger input
Development kit (C ++, C #)
Compatible with active and passive tags
0-100m radius (depends on power output)
can identify 300 tags time-consuming
IP65
DC 5V power supply, 300mW
dimensions: 190mm × 120mm × 40mm without antenna
Dimensions: 320mm × 226mm × 133mm with antenna
Weight: 2 KG
Operating temperature: -40 ℃ ~ + 60 ℃
API interface for fast integration with existing software

RFID TAG mounting on metal
Passive 865 MHz RFID PVC Tag (860 - 960MHz)
0 - 5 meters depending on antenna Gain
TAG Format 138 x 30 x 5 mm
protocol: ISO 18000-6C (R / W) - 96bit EPC / 512bit User
TAG ID (UID) in the second sector on the roof.

Passive 865 MHz RFID PVC Tag
0 - 10 m depending on antenna Gain
ISO Short format 86 x 54 x 0.5mm
protocol: ISO 18000-6C (R / W) - 96bit EPC / 512bit User
Tag ID UID in the second sector.
Read and write: 100,000 times
Material: Paper
Operating temperature: -20 - + 85 ° C

Passive 865 MHz RFID PVC tag (860 - 960MHz)
0 - 10m depending on antenna gain
ISO short format 86 x 54 x 2 mm - card holder available
Protocol: ISO 18000-6C (R / W)
Card ID in other sector.
Operating temperature: -25 ℃ ~ + 65 ℃

Top-class scanner for item and product registration
Professional Multi Reader and Writer for RFID and Barcode 1D/2D/QR etc.
Powerful circular polarized antenna
UHF RFID read and write up to 25 meters, depending on TAG
UHF TAGs are passive - without a battery
Reads NFC and Mifare TAGs
Reads up to 900 TAGs per second
Barcode reader CCD: 1D, 2D, QR codes
Access to the APP Center with programs and tools
13MP camera with flash
5.2" Display - 1920 x 1080p with touch
Communication: dual band Wifi, Bluetooth, 4G LTE
Dual SIM or Single SIM and Micro CD card
GPS/AGPS, GLONASS
Battery: 8000mAh Li-ion (approx. 12 hours of operating time)
IP65 tight. 1.5 meter drop tested
Operating temperature: -20 - +50°C

For passive UHF tags 865MHz
Supports ISO18000-6B, ISO18000-6C
RF power: 0.1 - 1 Watt
TAG reading is controlled via software commands
Interface: RS232, RS485 and Wiegand 26/32
Circular polarized antenna
RS-232, RS-485, Wiegand 26Bits/32Bits
5V DC power supply / 2 Watt
Dimensions: 220 x 220 x 50 mm
Weight: 1.5 kg
IP65

RFID UHF 865MHz PVC Bracelet
One-off closure
Adjustable size
Waterproof
Operating temperature: -30 ~ 75 ° C
White
Width 2.7 mm
Length Shared 100 mm
total length 278 mm

866 - 868MHz CE, equipped with 12dBI linear antenna
EPC Class 1 gene 2 (ISO18000-6C)
from 0 ~ 20 meters reading distance (depending on the surroundings)
from 0 ~ 7 meters of writing distance ( Depending on the surroundings)
Linux OS, Indy R2000 RFID chip, fast and precise reading rate
Ethernet connection
445 × 445 × 100 mm (l × W × H)
Operating temperature: -20 ~ + 60 ° C
IP65
Option: RS232 / 485, USB, GPIO, Wiegand 26/34, 4G LTE and WiFi
Option: Poe
