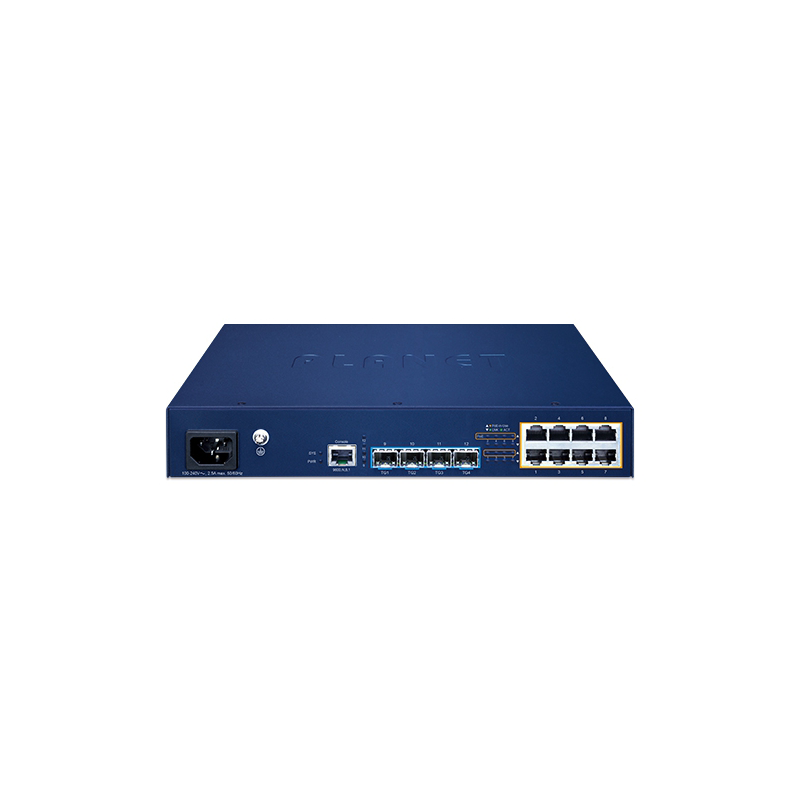

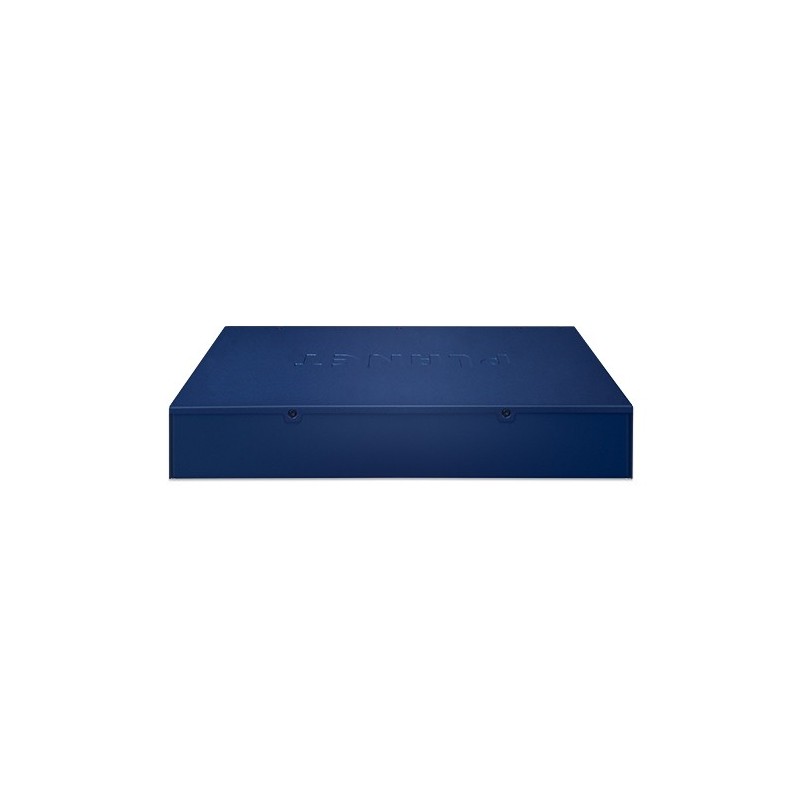

Layer 3 Managed Switch, 8 Ports, 4 SFP, IPv4/IPv6 Routing, OSPF

Unmanaged 5 ports industriswitch
4 x RJ45 10/100Mbit
1 x ST fiber 100Mbit Multi Mode
IP50

Managed Gigabit switch. 8 x RJ45, 2 x SFP
8 x 10/100/1000Mbit with RJ45 connectors
2 x 100/1000Mbit to SFP
Supply voltage: 12 - 48VDC redundant
Also accepts 24VAC
Power consumption : max. 10W
DIN rail bracket
1 relay for alerting
Dimensions: 135 x 88 x 56 mm
Operating temperature: -40 - +75°C

8 Ports Managed Switch With Fast Recovery and Ring
Erps (Ethernet Ring Protection Switching)
8 x RJ45 10/100/1000Mbit Switch
Store and Forward Architecture, Broadcast Storm Checking
1.5mbits SRAM Packet Buffer
Automatic Address Learning and Address Aging
Supply paging: 12 - 48VDC or 24VAC

Real Ring, Redundant Ring of critical network
IEEE 1588 Time Protocol, supports MEF service and synchronous Ethernet
Supports MODBUS TCP protocol
Supports IGMP Snooping to 4 x 10/100 / 1000Mbps RJ45 ports
2 x 100 / 1000Mbit SFP ports
12 - 48VDC, redundant input
24VAC supply voltage is also possible
IP30 metal housing with DIN bracket
temperature range from -40 to + 75 ° C

Managed Industry switch to harsh environment
Cybersecurity SSHv2/TLSv1.2
Ethernet Ring Protection
e-Mark Certified (vehicles/ITS)
Can support 2.5Gbit SFP module
8 port industrial Gigabit switch, RJ45 with PoE+
Intelligent PoE
2 port SFP 100/1000/2500Mbps
Supply voltage: 12 - 48VDC / 7A
PoE power budget: 60W at 12V, 120W at 24V, 240W at 48V
Redundant power supply connection
IGMP snooping, MLD snooping
IEEE 1588 Time synchronization protocol
Modbus TCP real time (SCADA)
Extended temperature range from -40 to +75 °C
DIN rail or wall mounting
Dimensions: 152 x 107 x 77 mm

Managed Industrial switch. 24 x RJ45, 4 x SFP
24 x 10/100/1000Mbit RJ45 ports PoE++
IEEE 802.3at/af/bt - Ultra PoE (90Watt) end/mid-span
Total PoE power is 775W
4 x 100/1000/2500Mbit mini-GBIC / SFP slots, Combo with 4 Gbit RJ45 SFP
10GB SFP
VLAN - IEEE 802.1Q tagged VLAN
VLAN (Q-in-Q) - IEEE 802.1ad
Protocol VLAN, Voice VLAN, Private VLAN, Management VLAN, GVRP
IGMP snooping v2 and v3
MLD snooping v1, v2
Port security for source MAC address filtering
DHCP snooping to filter unwanted DHCP messages
Dimensions: 440 x 300 x 44 mm (1U)
Weight: 4.4 kg
Supply voltage: 100 - 240VAC

8 x 10/100 / 1000BASE-T RJ45 Auto-MDI / MDIX Ports
2 x 1000BASE-SX / LX / BX SFP Interface
8 POE Injector Ports with 802.3ay / of
PoE Standard 802.3at
60GB non-blocking
32Mbits Data buffer
IEEE 802.3X pause frame for duplex
IP30 aluminum
Din rail kit and wall mounting
Alarm relay 1A, 24V DC
2 x Digital output (DI)
2 x Digital output (DO) 24v DC, 100mA max
Dimensions: 72 x 107 x 152mm
Weight: 1684g & nbsp;
Supply: 48-56 V DC

Managed PoE Switch with 8 RJ45 and 4 SFP slot
8 x 10/100 / 1000Mbit with PoE ++ (95Watt)
PoE power budget is 360Watt (45Watt per port)
PoE utvidga mode - max. 160 - 200meter
2 x 100 / 1000Mbit SFP slot - for Single- and Multimode SFP module
2 x 10Gbit SFP slot
2 x Digital input
2 x Digital outputs (Open Collector)
IGMP Snooping Seite 128 VLAN interfaces
IEEE 1588v2 Precision Time Protocol (time  syncronising)
Operating temperature: -40 - + 75 ° C
Dimensions: 152 x 108 x 77 mm
Weight: 1, 2kg
Supply voltage: 48 - 56VDC (recommended min. 52VDC) 8amp
