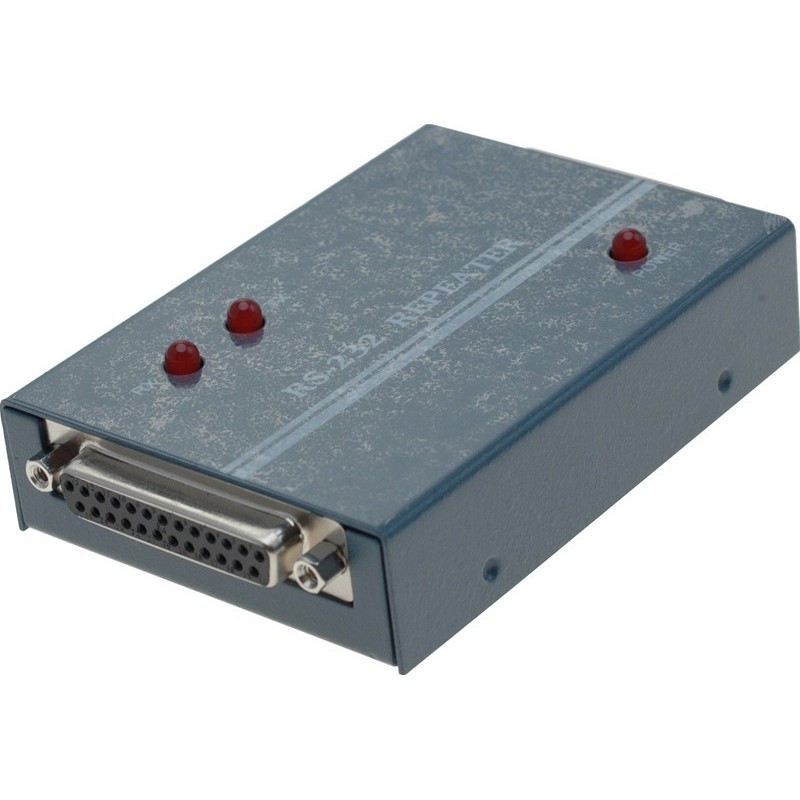

RS232 serial booster 180m

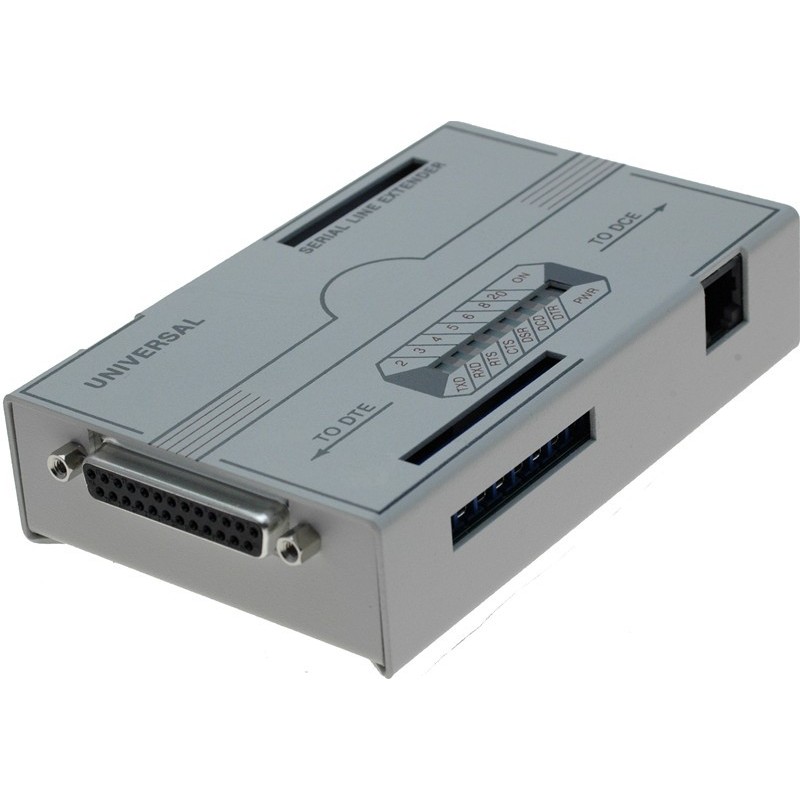

Extend serial cable up to 1600 meters, transiently protected
RS232 / V.24
Transparent data: syncronous and asyncronous
All HW and software handshakes
DB25 male and DB25 female
With screw terminal connection of serial I / O
With RJ45 connection of serial from special cable
DC9V / 2A power supply included

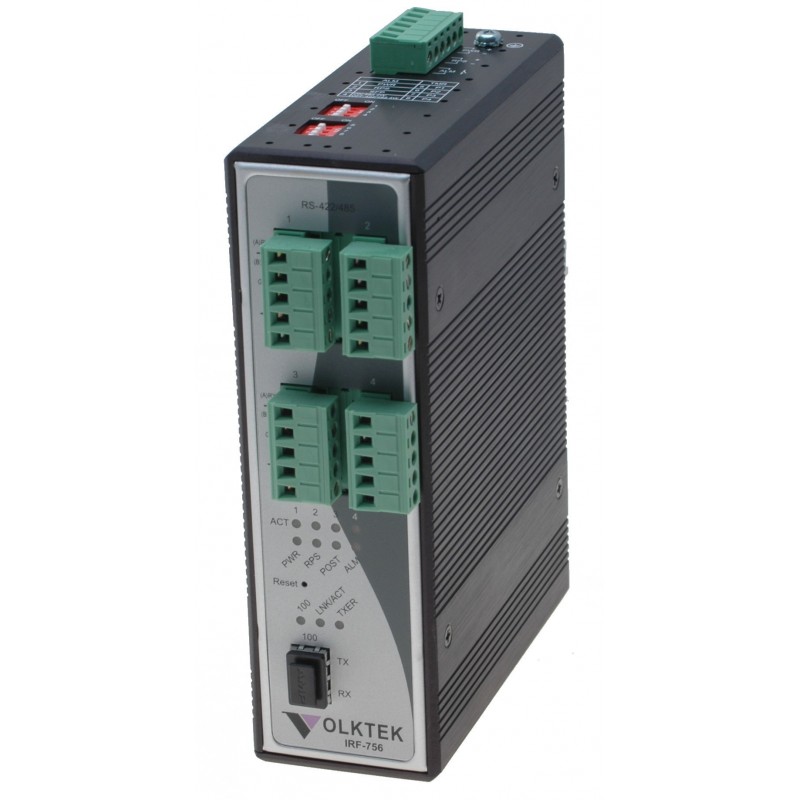

4 x RS485/422 COM ports over fiber, fiber network
Extender over fiber with 4 x RS422 / 485
1 x 100 Mbit fiber
Screw terminal block (5 pole)
SFP slot for 100mbit Multi Mode LC Fiber
62 x 50 x 120 mm
Display 3 LEDs Displays TX / RX, Network and System Status
Supply 9 - 32 VDC (not supplied)

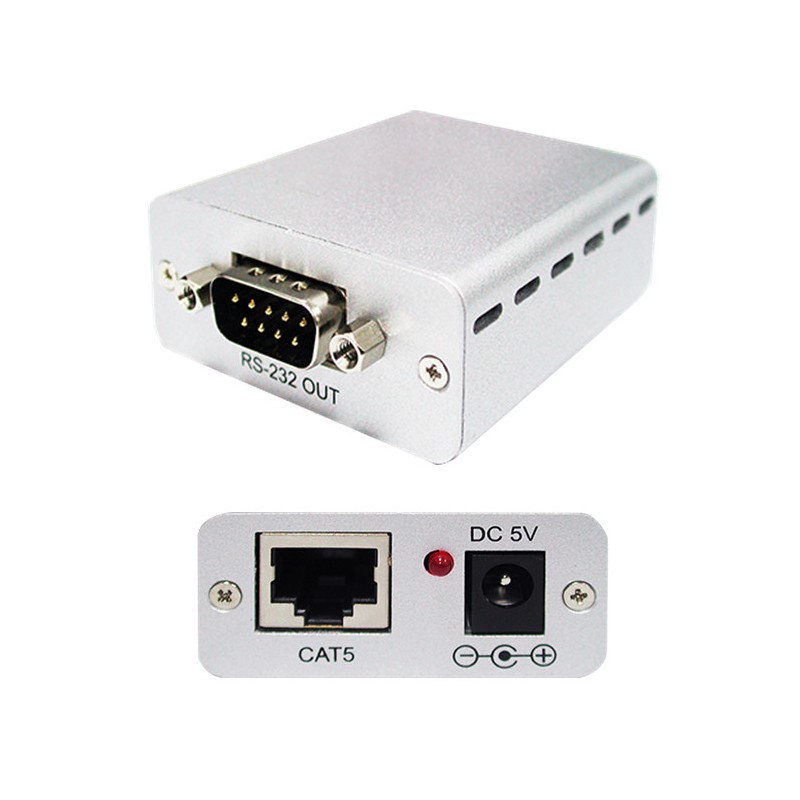

RS232 Rxtends up to 250 meters over RJ45 cable
Baud rate: 110 ~ 921,600, 8-bit
Use STP (shielded) patch cable - straight through
The network cable must not be connected to the patch panel
1 x 5VDC/1A - the power supply supplies both devices (PoC)
Important: If the distance is long, 2 power supplies are recommended
Important: If the network cable is of poor quality, use 2 power supplies

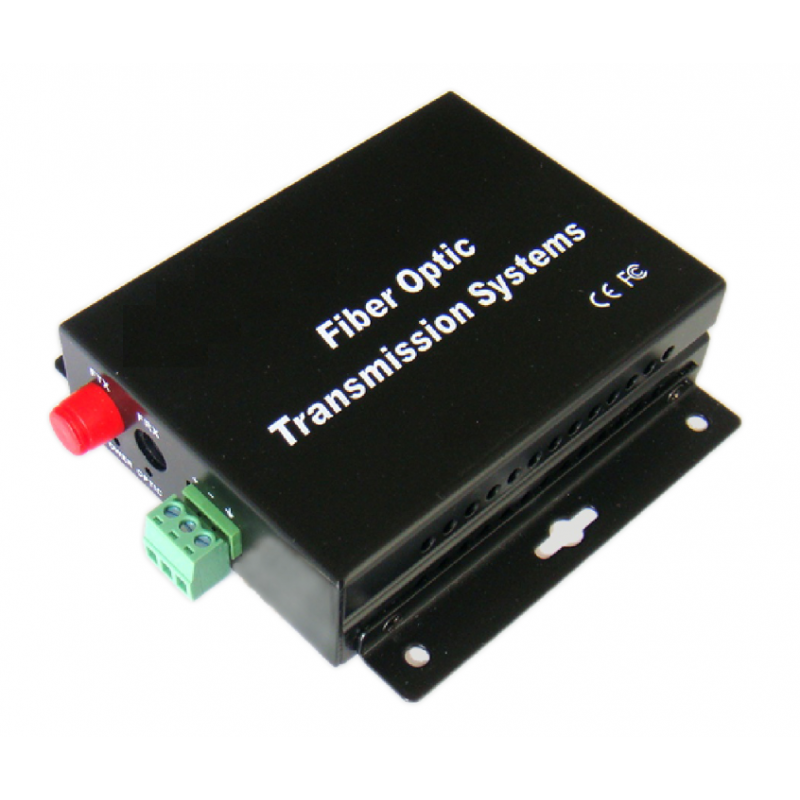

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-ST is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate

Single-Mode Fiber (Multi-Mode optional)
1-Channel Duplex Rs485
Point-to-Point or Daisy-Chain (M485-FIBER-SR is needed)
DC input 5V (< 3W)
Operating tempeture: -45 C~+75 C
Up to to 115.2Kbps data rate
