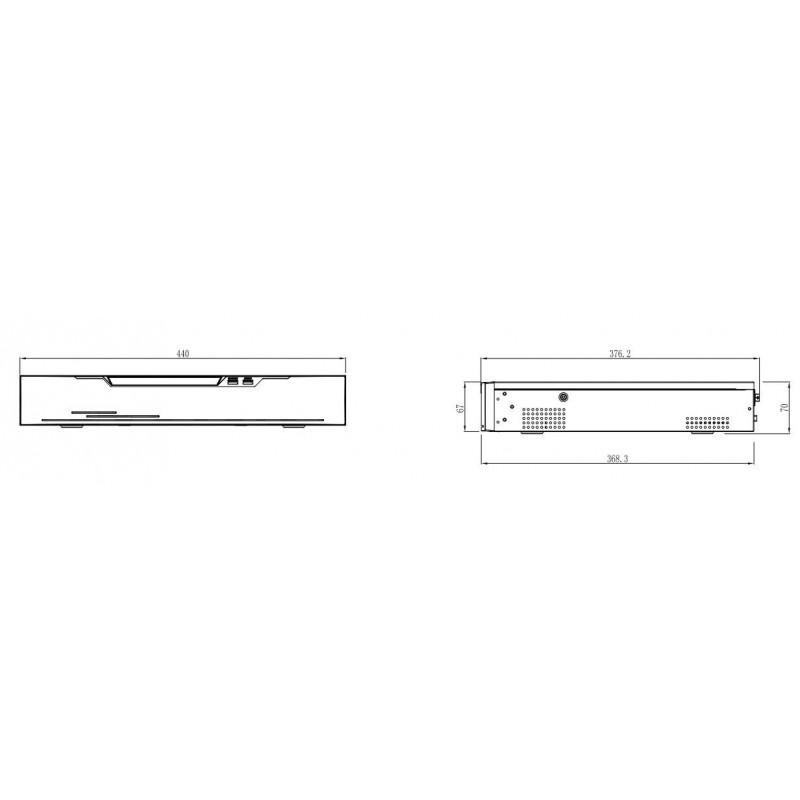

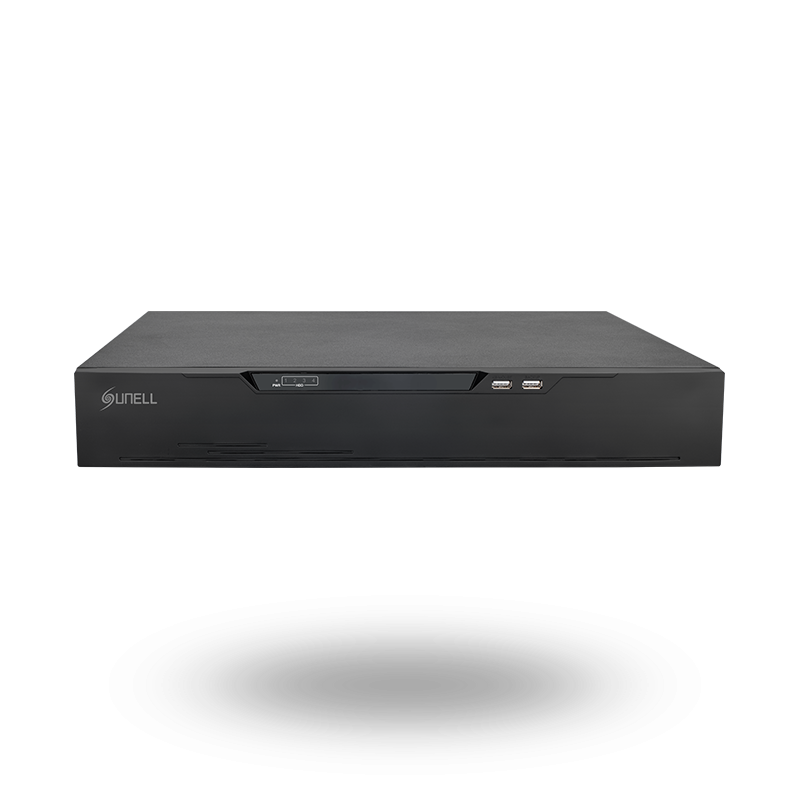

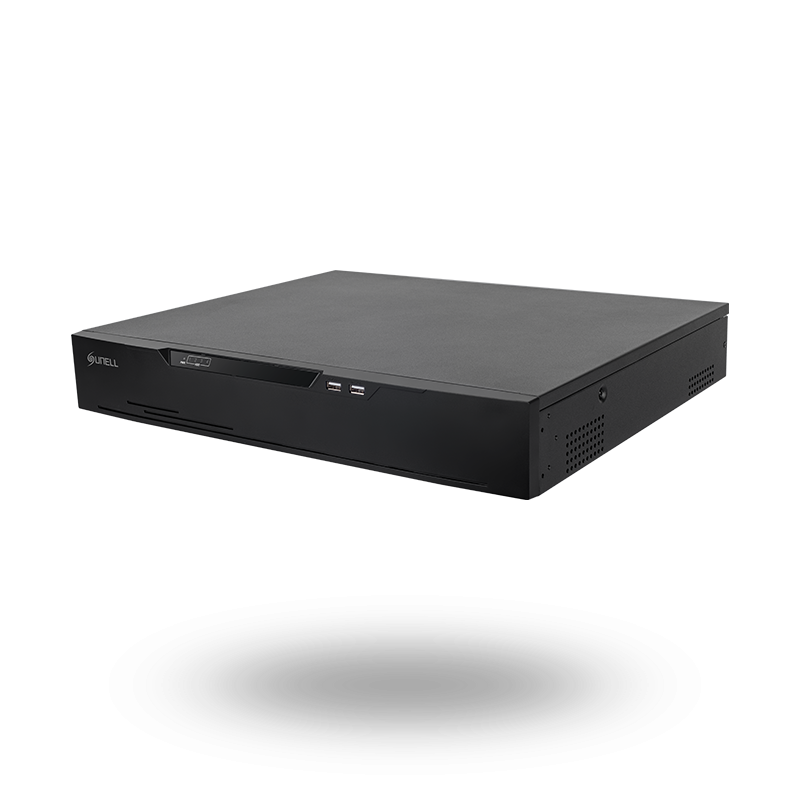

32 channel 4K NVR recorder for IP camera

ATEX certified 2MP IP Bullet camera in steel housing
II 2G Ex d IIC T6 Gb
All areas except mining, Zone 1, Flameproof, All gases, 85°C, high protection level
2 MP / 25 fps -1920 x 1080
Motor zoom from 2.8 - 12 mm
Color for sh at 0.1Lux
H.264/H.265/MJPEG
With motion detection, rotate
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS, NTP
3D digital noise reduction
Window wiper
ONVIF, PSIA, CGI, ISAPI
Steel housing in 304 (Option 316/L)
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: 12VDC

ATEX CERTIFIED 2MP IP Dome Camera in Steel House
II 2G Ex D IIC T6 GB
All Areas EXEPT mining, Zone 1, FlameProof, All Gases, 85 ° C, High Protection Level
2 MP / 25 FPS -1920 x 1080
Color to SH at 0.1lux
H.264/H.265/MJPEG
With Motion Detection, Rotate
Protocol: RTSP, FTP, PPPOE, DHCP, DDNS , NTP
3D digital noise reduction
IR 15 meters, on at 0lux
Onvif, PSIA, CGI, Isapi
Steel House in 304 (Option 316/L)
Suitable for areas with explosive gases
Suitable for areas with explosive dust
Suitable for areas with corrosive liquids
Supply voltage: 12VDC

ATEX certified IP camera in steel housing
2 Megapixels
Motor-Zoom from 2.8 - 12mm @F1.6
NMEA-4X, IP68/IP69
H.264+/ H.264/ M-JPEG Compression
Smart Focus System with remote focus adjustment
DMR digital noise reduction
PoE Power over Ethernet, 2.88W
PoE 9W with heater on at -40°C
Day and night manual switch time control
Operating temperature -40℃ - +65℃
The heater is switched on at -40°C
Micro SD Card Backup up to 64GB
2-way Audio
Support iPhone/Android/Mac
SDK for Software Integration
Free Bundle 36 Ch Recording Software
Dimensions: L145 x Ø95 mm
Weight: 3.8kg
Label length: 4 metres

Består af en sender- og en modtagerenhed med singlemode fiberoptisk kommunikation mellem. Der kan overføres 4 kanaler video

Network control with independent IP address
Support for ONVIF
5 inch Industrial LCD screen
Resolution 800*480, Image Decoding, Real-time Monitoring
4D Joystick Control PTZ Function
Preset patrol pattern and AB scanning
Web setting
Button for zoom and control speed
PoE

Up to 8ch IP camera

Up to 12MP resolution for viewing and recording

Intelligent analysis of NVR: intrusion

1 SATA hard drive up to 12TB

1 RJ45 10/100/1000Mbps Network Interface

8ch PoE Ports

Smart search playback

Support cloud upgrade

New model expected delivery in April 2025
Double-lane recognition
Up to 30 fps at 1920 × 1080
Standalone database / Log Export
IR distance up to 22 m
Day and Night function
Digital I/O (1 in / 1 out)
SD card slot for data
Built-in heater and fan
Recognize vehicles with speeds up to 100 km/h
Powered via POE / 12VDC
IP67 , Defog
31 languages on Web interface
CE, FCC, UKCA, LVD, RoHS compliant

Portable Service monitor
AHD / TVI / CVI / CVBS coax in and out, HDMI in, VGA in. PAL / NTSC
12VDC 1A output for camera
800 x 480 (5: 3) 5 "TFT color screen.
Supports Pan-Tilt-Zoom Pelco-D / P PTZ via RS485
Supply: 5VDC via Micro USB-B connector.
5200 mAh battery, up to 11 hours battery life
Suitable for camera installers
Some IP cameras have CCTV output (BNC)
Cannot be used for IP cameras without BNC
