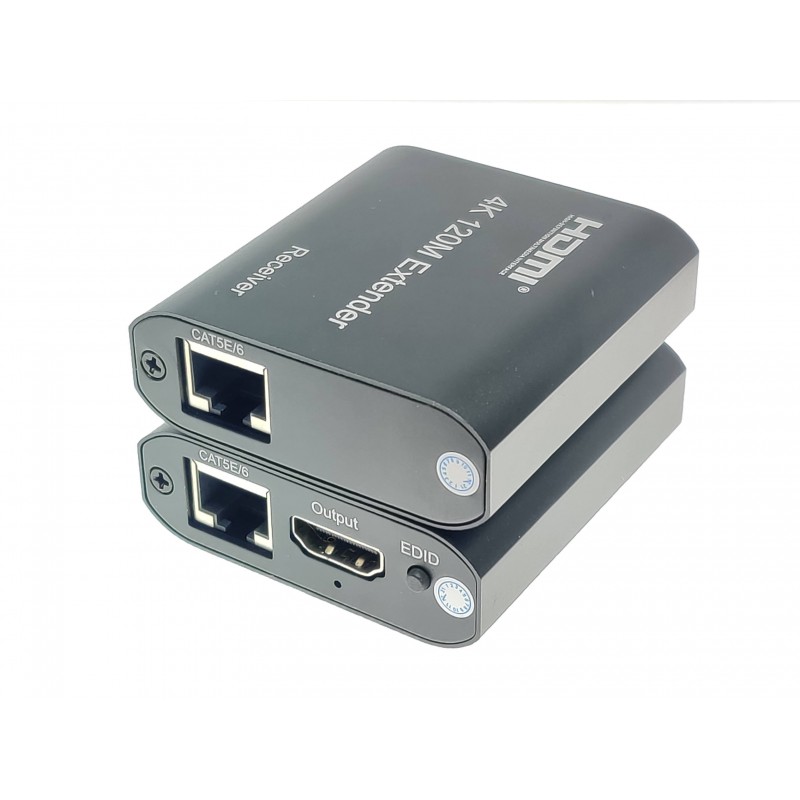

HDMI Extender 4K @ 30Hz over Cat 5e / 6. Up to 120 meters, 5VDC, loop out

HDMI BOOSTER HD 1080p
HDMI signal over single CAT 5e/6 cable
Resolution 1920 x 1080 @60Hz
POC: Power Over Cable. Transmitter powers Receiver
HDMI 1.3/HDCP 1.2
Supply voltage: 5VDC

HDMI sends and receives over RJ45 Cat. 6/6e
1080P@60Hz
HDMI 1.3, HDCP 1.2
EDID
Suitable for transferring HDMI over an existing RJ45 installation
Up to 50 meters (Depends on cable quality)
Use only quality cable
HDMI male, RJ45 female
POWER over cable, the supply to the reciver module is transferred via cable.
Can be supplied with 5vDc via Micro USB Power on each module

4K HDMI Extender Over IP
HDMI 1.4 / HDCP 1.4
Up to 120 meters (point-to-points)
4K @ 30 Hz
2 x USB-A 2.0 (HID emulation)
One-to-One or One-To-Many
Max 32 RX Can be connected One TX (Via Ethernet Switch)
Remote-IR from TX to RX
Plug and Play
Power Supply: 5V 1A (2 included)
Dimensions: 107 x 105 x 27 mm
Operating temperature: -15 - + 55 ° C
Weight: TX 499G, RX 494G
acquisition: K-USB4AM-AM -Fe to connect the USB-A port to PC

1 pc. 4 channel HDMI transmitter

4 pcs. HDMI-MULTI-R4 receivers

Up to 70 meters to receivers

Resolution up to 1080p@60Hz.

HDMI distribution up to 70M.

No external power is required for the RX unit.

Built-in HDMI loop out port on TX unit for an additional HDMI display.

Can be stacked to another TX for 1 in 8/12 out.

Supports RS232, CEC, EDID.

Supports RS232 control.

Send incompressed 4K / HD video and audio over CAT6A / 7 cable up to 100 meters
HDbaseT communication protocol (5 in 1)
HDbaseT Supporter: Audio Video, Operation, Ethernet, USB, Power
Can be powered from HDbaset with PSE
PSE is equipment that sends Poe out on the RJ45 port
power from Mini-USB by no PSE connected
map HDMI cable, eliminates the need for extra cables
Resolution Up For UHD (3840 x 2160), Deep Color and HD audio formats
4K @ 60Hz 4: 2: 0
4K @ 30Hz 4: 4: 4
HDCP compatible and Blu-Ray ready
Plug-and-Play No Software Installation
Requires Best Quality Cable! No Support if not the cable is from Danbit

HDBaseT Repeater med HDBase ind / ud
Maks. afstand 100 meter
Egnet til Mid-range Repeater.
Input og output for HDMI
Kan fjernbetjenes med RS232
Med EDID
Forsyningsspænding: 12VDC
Mål: 190 x 125 x 34 mm

Transmits uncompressed HD video and audio over CAT6a / 7 cable up to 100 meters
Can be powered monitors or receivers with hdbaset with PSE
PSE is the equipment that sends PoE out on RJ45 port
Power from mini-USB with no PSE connected
Map HDMI cable, eliminating the need for extra cables
Resolution up to UHD (3840 x 2160), Deep Color and HD Audio formats
4K @ 60Hz 4: 2 : 0
4K @ 30Hz 4: 4: 4
HDCP compliant and Blu-ray ready
Plug and Play no software installation
Compact size.
Easy to install
REQUIRE THE BEST QUALITY CABLE! No support if the cord is from Danbit

Receives HDMI video signal via Cat.6A cable up to 100 meters
Resolution: 4K @ 60Hz 4: 2: 0)
Resolution: 4K @ 30Hz 4: 4: 4
Full HD (1920 x 1080)
User hdbaset technology
PoE (POH) - only a power supply of the receiver unit.
HDCP compliant and ready for Blu-ray
Supports IR remote
automatic power saving function (can selectable)
Plug and Play, no software installation
Powered by 48VDC
Dimensions: 140 x 85 x 34 mm
REQUIRE THE BEST QUALITY CABLE! No support if the cord is not from Danbit
