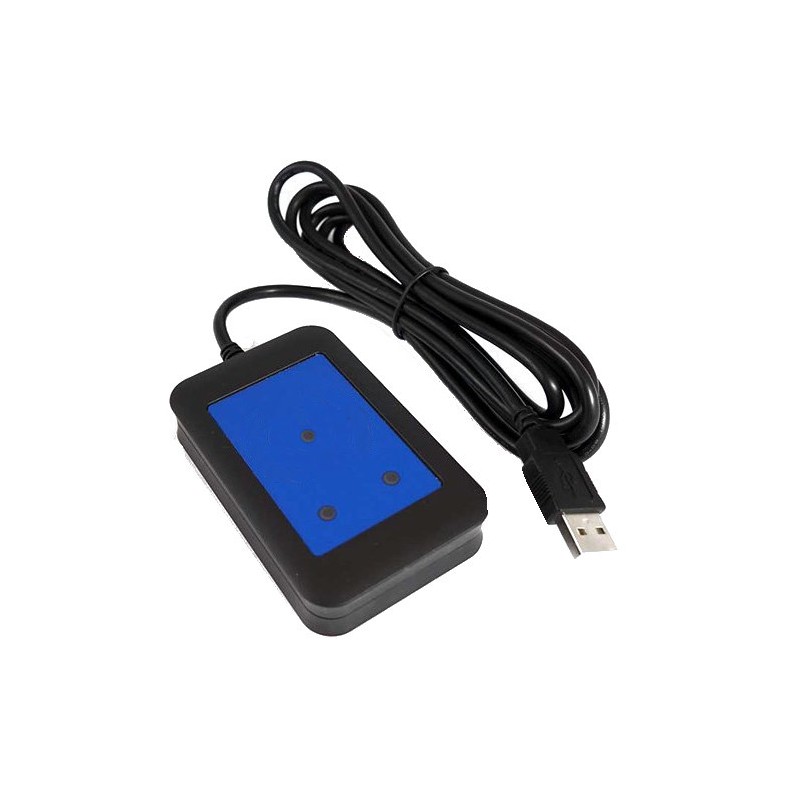

RFID Reader for USB - Decimal
Frequencies: 125 kHz, 134.2 KHz, 13.56 MHz
Reading distance up to 10 cm
Powered via USB
USB interface - HID (keyboard emulation)
Operating temp. -25 to + 70 ° C
Dim: 88 x 56 x 18 mm
| Operating Temp. | -25°C up to +70°C |
|---|---|
| Andet | supports all major transponder technologies like HID, HITAG, Nexwatch, KERI, Cotag, CASI-RUSCO etc. |
| Forsyning | Via USB |
| Frekvens | 125kHz, 134,2kHz |
| Hastighed | Host: USB Full speed (12 Mbit/s), RS-232 up to 115.200 baud |
| Interface | USB, RS232, TTL serial (logic level 3.3 V, CMOS 5 V tolerant), I²C1), 4 GPIOs, Clock/Data4), Wiegand4), 1-Wire1) |
| OS SUPPORT | Windows XP, Vista, Embedded CE1), 7 (32-/64-bit), 8, 8.1, 10, Linux, Android1), iOS1), MAC OS X1) |
| Rækkevidde | Up to 10cm |
| Tastatur/mus | USB keyboard emulation – USB virtual COM port – Transparent (support for direct chip commands) CCID / PC/SC 2.01 |
| Udformning | Bordmodel |
| Weight | 116g |
| Dimensioner | 88 mm x 56 mm x 18 mm (L X W X H) |
Multi RFID Reader: 125 kHz / 134.2 KHz RFID Reader / writes
The USB model can be firmware updated, So it can deliver data in HID format (as a keyboard input) or as virtual COM port (RS232 register) as decimal or hex.
A script can be loaded in the reader that changes its function. It is a text file with a program in a simplified version of C ++ traversed by scanning. It can change the way it interprets and outputs the id. For example, the Type of the Tag may be read out with its ID and the 2 LEDs and the sounder can be controlled.
Supports the following roof types:
125 kHz, 134.2 KHz: AWID, Cardax3), Casi-Rusco, Deister3), EM4100, 4102, 4200, EM4050, 4150, 4450, 4450, EM43051), FDX-B, EM4105, HITAG 12), HITAG 22), HITAG S2), ICT1), IDTECK, Isonas1), Kiro, downap3), pac3), pyramid, Q5, T5557, T5577, TIRIS / HDX, Titan (EM4050), Unique, Zodiac All standard transponders, Cotag, G- Prox3), HID Duoprox II (1336), HID ISO Prox II (1386), HID Micro Prox (1391), HID proxkey III (1346), HID prox, HID prox II (1326), indala, ioProx, Nexwatch
