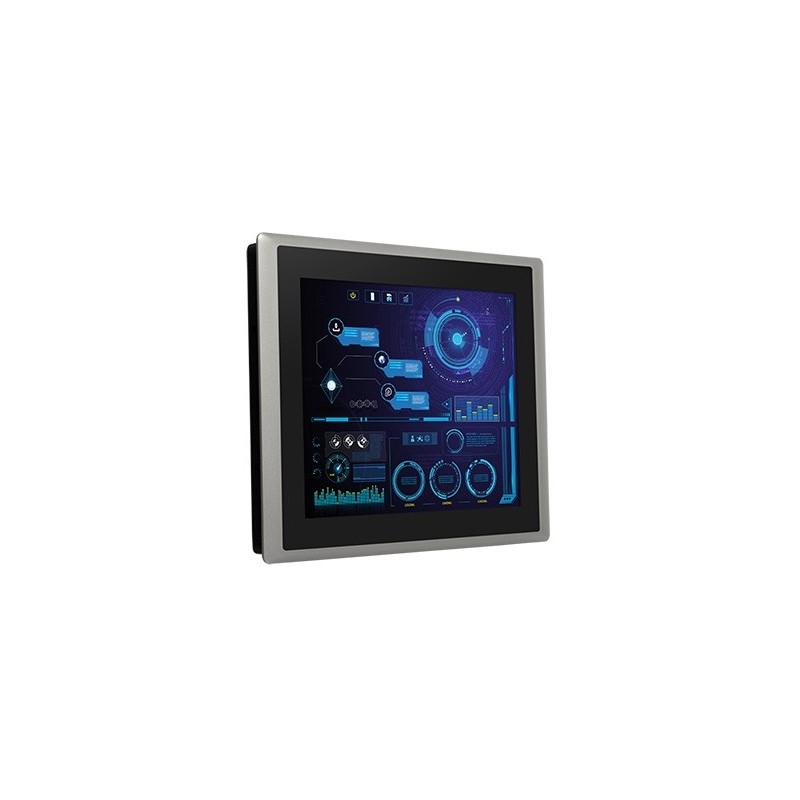

10.4" LCD Panel PC with 5-Wire Resistive Touchscreen, IP65 Front Panel, 1024x768 Resolution

17 "TFT monitor - stainless steel cabinet
full IP67
Touch
1280 x 1024 - 5:4 format
Brightness 300 cd/m²
VGA, DB15HD
VESA75
450 x 378 x 62 mm (H x W x D)
Weight: 7.5 kg
Supply voltage: 12VDC
230V AC / 12V DC / 1.5A PSU incl.
Special cables with IP67 sealed connectors are included.

19" TFT touch screen
With foot and VESA mount
VGA, HDMI, BNC
1280 x 1024 - 5:4 format
Resistive Touch resistive (USB)
Power supply: 12VDC (supplied)
OS SUPPORT: DOS / Win 9X (95, 98) / ME / CE / NT / XP / 7 / 8 / 10
Please note that the data may change continuously due to the rare model. Contact sales for special requirements.

19" LCD monitor
Resolution: 1280 x 1024
5:4 format
IP65 front
250 nits
USB resistive Touch
1 x DP
1 x VGA
1 x HDMI
1 x USB to Touch
1 x Audio Input
for Panel mounting OPTION: wall/rack or desktop mounting
Dimensions: 482 x 55 x 380mm (with frame)
Cutout dimensions: 407.1 x 334.6mm
24V DC screw type
Weight: 6kg

19 "SXGA LCD monitor
Resolution: 1280 x 1024
4: 3 format
IP65 front
250 nits
1 x DVI-D
1 x VGA
1 x HDMI
1 x USB
resistive touch
Panel / wall / rack or VESA mounting
Dimensions: 482 x 55 x 380 mm
AC 230V supply screw-terminal
Weight: 6kg without packing / 7.5kg packed

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

21.5" TFT 16:9
Metal chassis
Control panel is behind the front
IP65 only on the front
Resolution: 1920x1080
10-point PCAP Touch
Nits 1000cd/m² high brightness
Supports multiple video input interfaces: HDMI 1.4b, VGA, AV
2 speakers
Supports HDMI 4K30p, 2160p 24/25/30, 1080p 24/25/30/50/60 Hz
Supports Windows XP/7/8/8.1/10, Android, Linux and MAC OS (touch driver)
Front frame dimensions: 556 x 344.5 mm
Depth: 48.2 mm
Cutout dimensions: 540 x 330 mm
Mounting clip included
12-24VDC (≤37W (15V)) - PSU included
CANNOT STAND DIRECT SUNSHINE! (requires optical bonding)

15" 1024x768

4:3

Resistive Touch

Contrast 1500:1

High brightness: 300cd/m2. (1000nits model available)

HDMI, VGA, DVI, A/V inputs (BNC)

Viewing angle: 170/170 (H/V)

Metal housing

VESA & rear mounting methods

12VDC <16Watt

-20℃~60℃

Dimensions: 402 x 289 x 45 normal

Dimensions: 400 x 279 x 44 mm (open frame)
