Terminal board with 8 x relay outputs - BMC R8 - DANBIT
Previous
Next

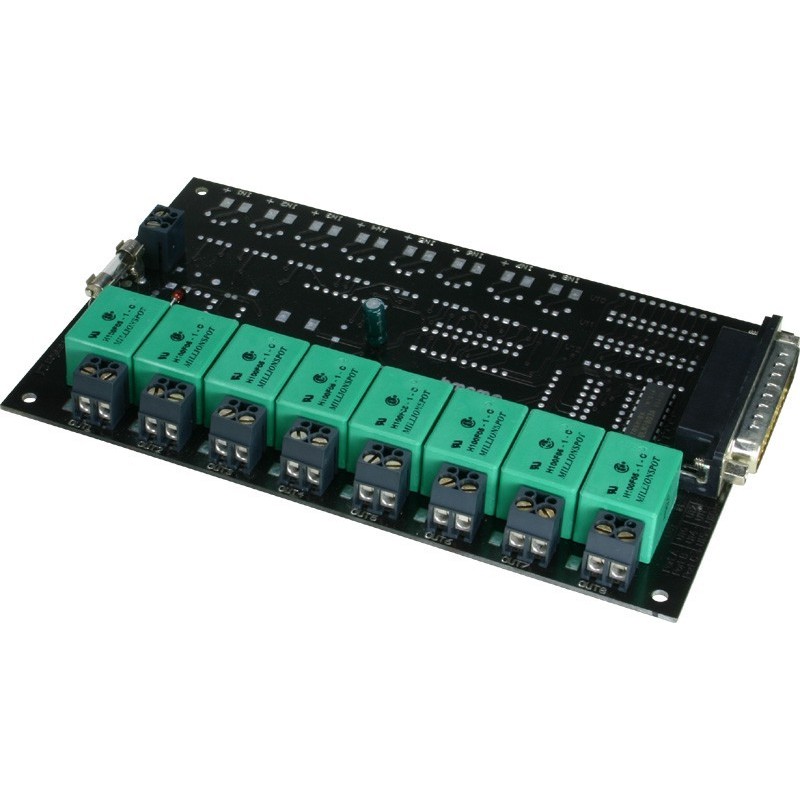

Terminal board with 8 x relay outputs - BMC R8 - DANBIT

Terminal board with 8 x relay outputs for USB-DIO24

Passer til USB-DIO24

1,035.20 SEK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number TERM25R8
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Forsyning +5 volt
Indikatorer og kontakter 8 lysdioder viser inputstatus og 8 viser relæernes status
Isolation 2500 VDC
Stik DB25 han
Udgange 8 slutterelæer 250 VAC 6 A
Dimensioner 30 x 100 x 160 mm

Fits USB-DIO24
