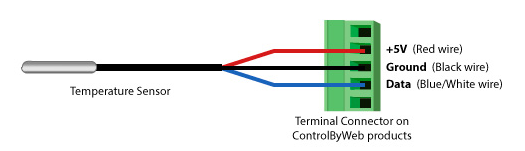

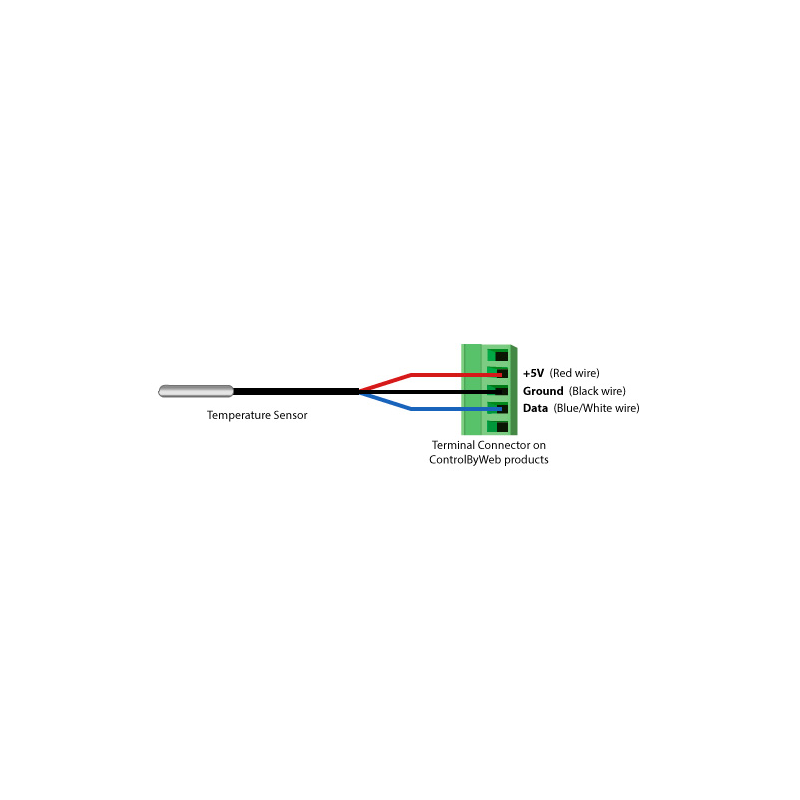

Waterproof temperature sensor with 1-wire interface. Dallas DS18B20 chip. -55 - + 125 ° C. + 5V, GND, 1-wire data

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Supply voltage: 10 - 30VDC / 2.5watt

1-wire combi sensor for temperature and humidity
3 connections: +5VDC, Gnd, data
Max. length of cable to controller: 180 metres
Mounting bracket for wall
Mounting bracket for penetration
Temperature range: -40 - +80°C
Accuracy: ± 0.4°C (0°C to 80°C)
Humidity range: 0 - 100% RH
Not suitable for environments with repeated or prolonged condensation
Accuracy: ± 2%
Sensor type: Digital 1-wire (Maxim DS18B20)
Cable length: 3 meters
Probe length: 100 mm
Probe diameter: 17.5 mm

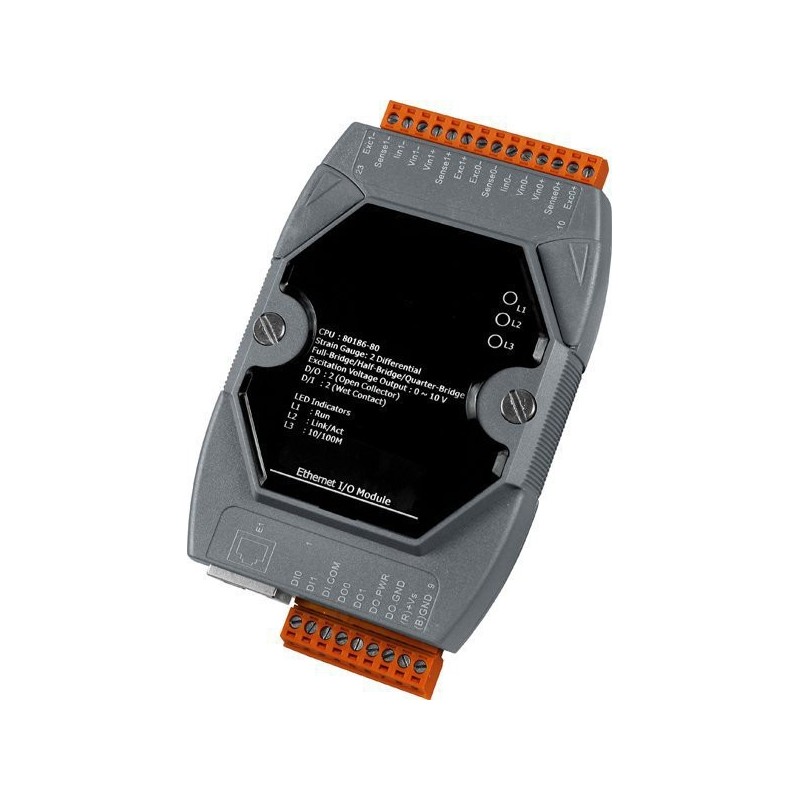

Intelligent Controller with Web Server
Logical functions, such as: IF-THEN-ELSE
No programming. Just select, click and finish
Supporter: I/O module, counter, hour, e-mail
Modbus / TCP protocol for SCADA software Seamless integration
IEEE 802.3af compatible power over Ethernet ( Poe)
1 x RJ45 - 100Mbit Ethernet
7 x Analog input: 0 - +/-2.5V, 0 - 20mA (ext. Resistors)
A/I Resolution: 16bit
10 Samples per Second
A/I Also to Thermocouller: J, K, T, E, R, S, B, B, C, L, M, LDIN43710
6 x Digital Output: 0 - + 50VDC / 700mA Open Collector
Supply voltage: POE or 12 - 48VDC / 4.5Watt

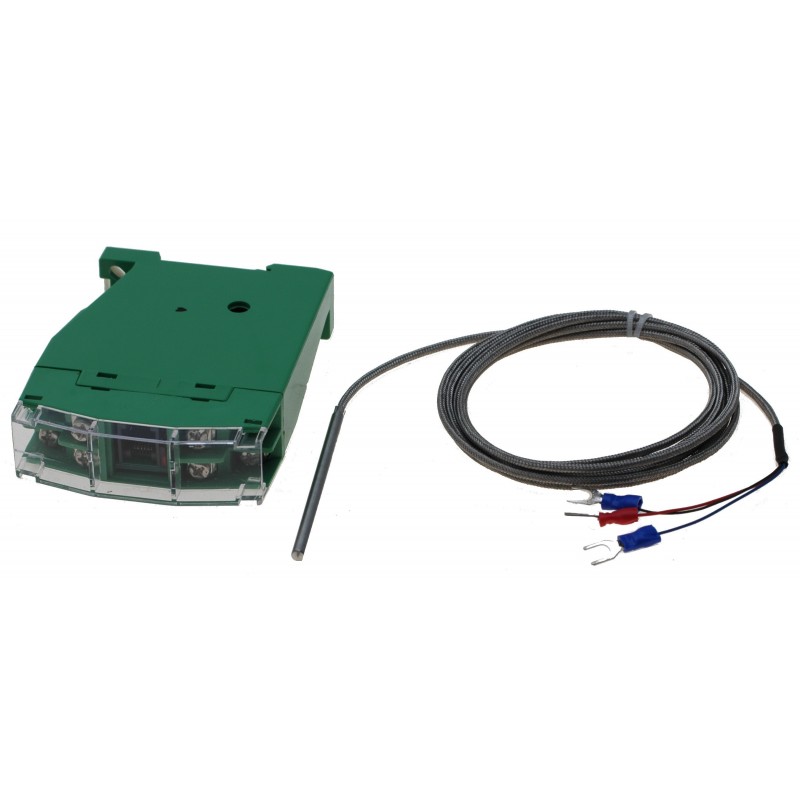

Pt.100 transmitter for your mounting
2 - 3-wire pt.100 sensor (red to 16, 2 x blue to 18 and A2
24v to 15 and 26
4 - 20 mA power Out of 16 and 26
4 - 20 mA The output gives power to PLC / instrument
Including PT100 feel with 80mm, Ø4MM Steel Tips
2 meter Flex cable
Supply voltage: 24VDC
Dim : H 74 x L 105 x B 22 mm

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2 x RJ45 port Ethernet - Daisy chain to the next module
Dual Watchdog
Operating Temperature Range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor 2 and 3- wire
16bit resolution
Power supply: PoE or 10 - 30VDC / 2.5watt
PoE is NOT passed on to the next module - only data.

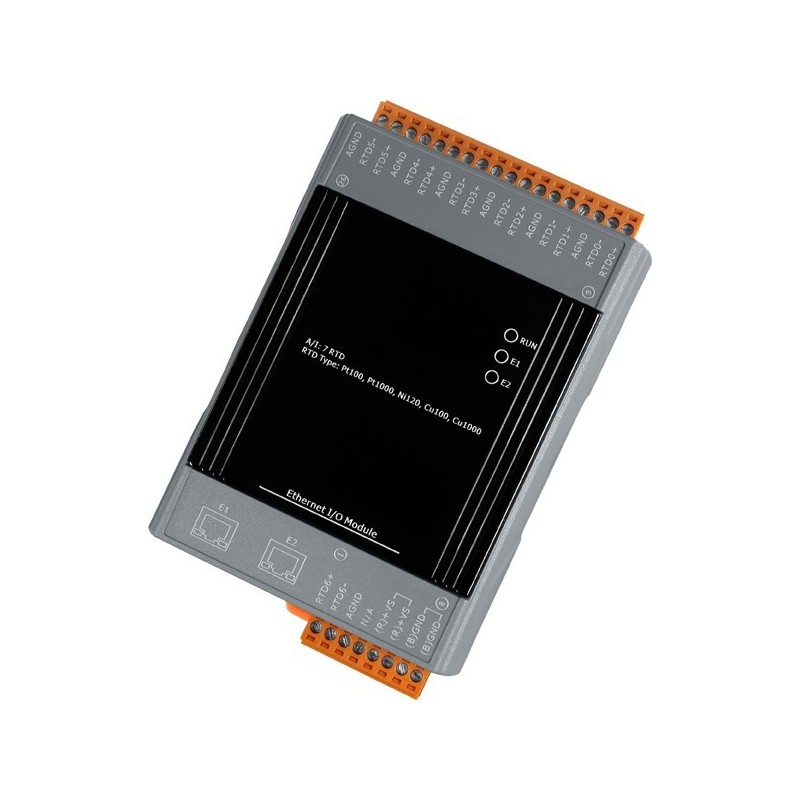

7 pcs. differentialindgange for temperature sensor
Pt-100, Pt-1000, Ni120, Cu100/1000
With built-in 2 port ethernet switch
LAN Daisy Chain to the next module
Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
16 bit resolution - 12 samples / second
Good communication security
Dual Watchdog
Operating temperature: -25 to + 75 ° C
I / O Pair compound. Mirroring input to output
Supply voltage: 10 - 30VDC / 3watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
1 x RJ45 port Ethernet
Dual Watchdog
Operating temperature range: -25 to + 75 ° C
I / O Pair-connection input is mirrored in the other's output
7 x RTD Interface: Pt100, Pt1000, Ni120, CU100, CU1000
Differentialindgange to the temperature sensor, 2 and 3-wire solution
16bit
Power supply: PoE or 10 - 30VDC / 2.5watt

Web-based temperature and moisture data loggs
1-wire bus for a maximum of 16 sensors (Temp / Moisture)
Permissions: Administrator, Manager, User
Tasks
50 Scheduled
50 Conditional
20 Override Schemes
Email Alarms, Custom (Encrypted Email Servers, such as Gmail)
Real Time Clock With NTP Server Synchronization
No Software Required
Basic Script Support for Advanced Flexibility
Configurable logging
Graph (logged data)
HTTPS / TLS encrypted
static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtration
On-site updates
Robust cabinet for DIN rail / wall
Supply voltage: POE or 9 - 28VDC, 134mA
