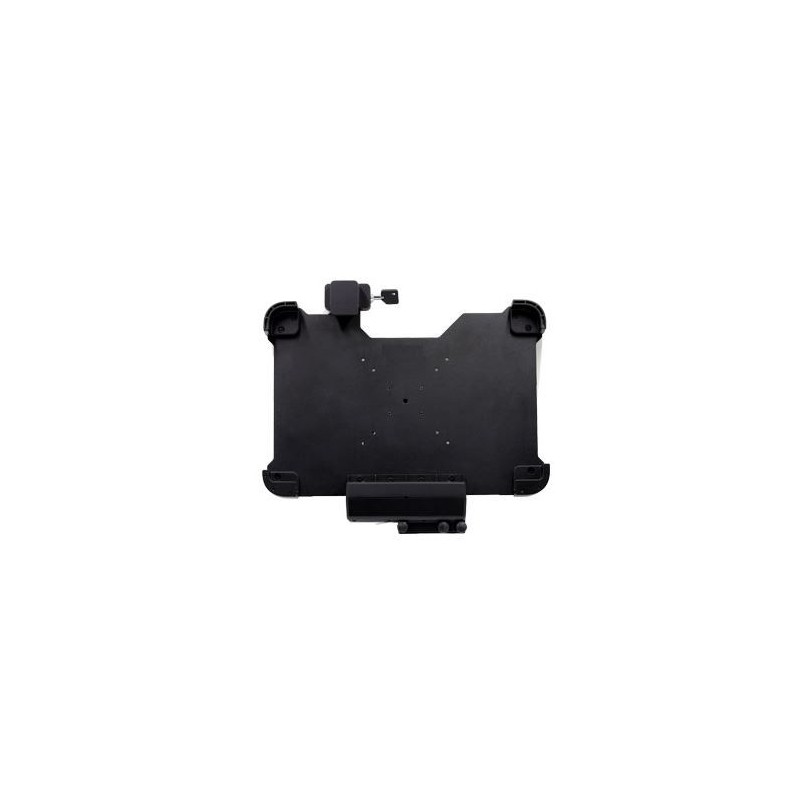

Optional Accessory for TABLET12.1 Docking station with vesa mount

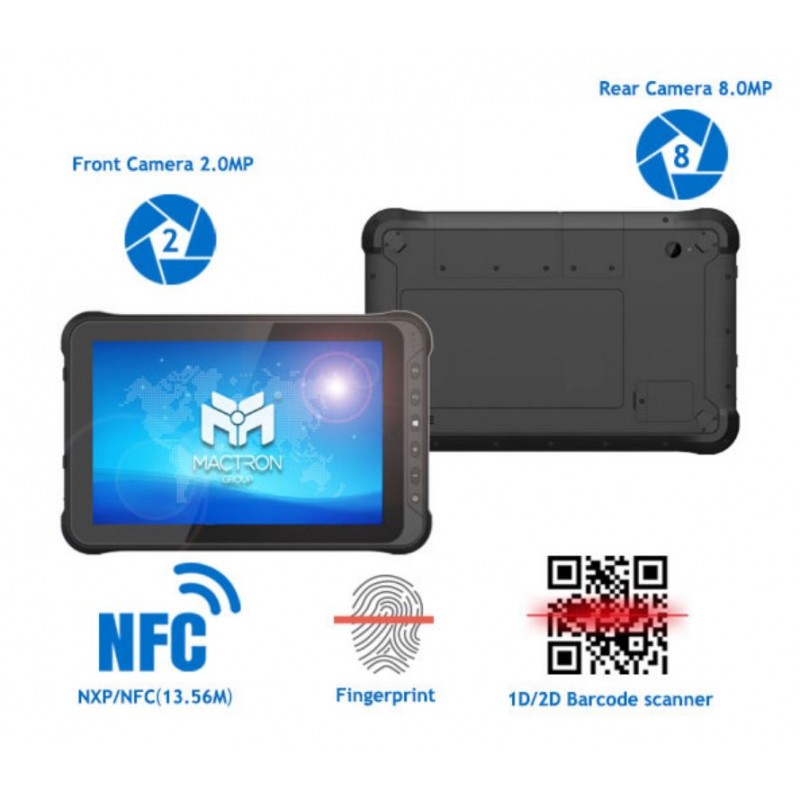

10.1" Mobile tablet - Windows

1280x800 (16:10)

700 nits

CPU Celeron N5100 Quad Core

Windows 11 support

RAM LPDDR4 8GB

SSD 128GB

1 x USB 3.0, USB-C

Bluetooth 5.0

Support Anti-Scratch Touch Panel

Built-in 13.56MHz RFID, NFC

Support 1D / 2D Barcode Scanner (Purchased as additional equipment)

4G, LTE, GPS (Purchased as additional equipment)

Fingerprint reader (Optional)

Front camera 5.0MP / Rear camera 8.0MP

IP65

Up to 6 hours on a single charge, * 6 hours (default 50% volume, default 200nit, play 1080HD video)

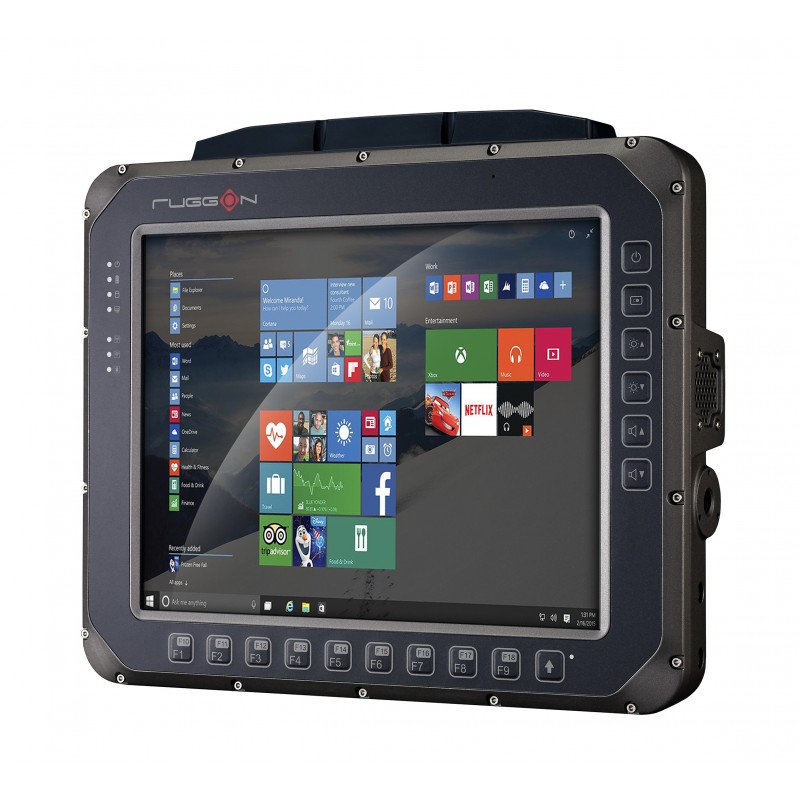

12" Robust Tablet PC with IP 66
Intel® Core™ i5-6300U 2.4GHz
4GB DDR3L RAM, upgradeable to 32GB
M.2 2280 SSD, SD SLOT
Windows 10 IoT Enterprise
built-in 3-axis sensor, dual speaker
1200 nits LED backlight
Resistive touch, support defroster function
9 x programmable button
2 x contrast adjustment button
2 x sound adjustment button
2 x RS232 (COM1 with power), RS-232/422/485
2 x USB 2.0 / 3.0, USB 2.0
1 x CAN bus (SAE J1939 / OBDI II supported)
1 x Audio jack
Vesa 75/100 mounting
Power supply 9-60V DC

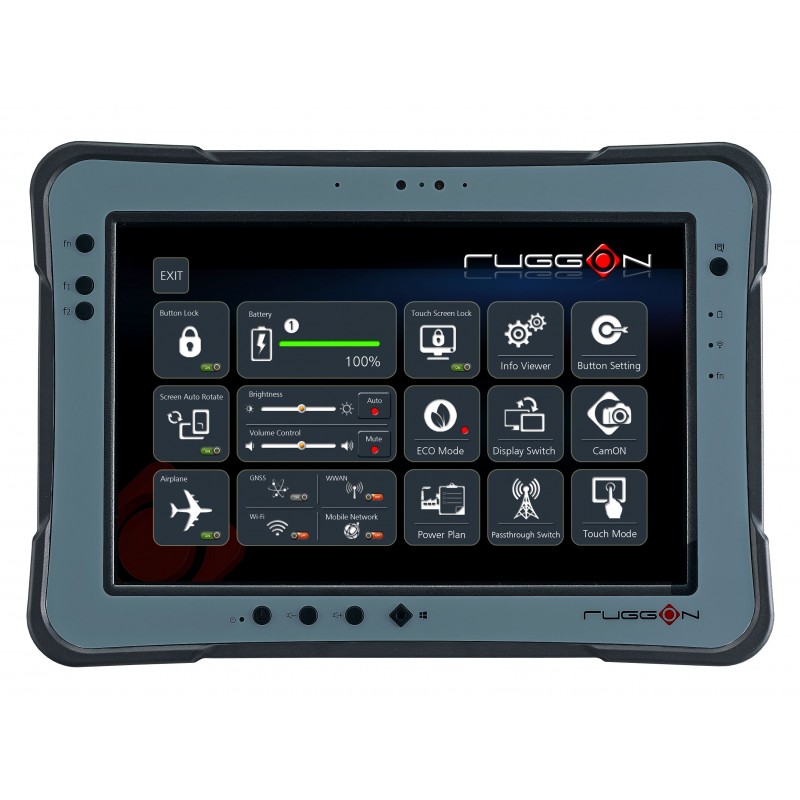

Gen. 13th Intel® Core™ i5-1335UE processor 1.3GHz
8GB DDR5 SDRAM, 128GB M.2 SSD
IP65, MIL-STD-810H
1000 nits sunlight readable (before touch), 1920x1200 Gorilla Glass
850 nits sunlight readable (after touch) with hyper dimming option
Capacitive multi-touch screen, glove touch, water rejection
GNSS, Wi-Fi 6E, Bluetooth and on order 5G LTE
Vibration, shock and 5’ drop resistance
2 megapixel front kamera, 8 megapixel back camera (LED flash)
1 x RS-232, 1 x USB-A 3.1, 1 x USB-C 3.1
1 x Nano SIM slot, 1 x docking connector
1 x RJ 45 gigabit ethernet
AC adapter 65W, 100-240V
Battery with 4500mAh
Windows 11 IoT Enterprise

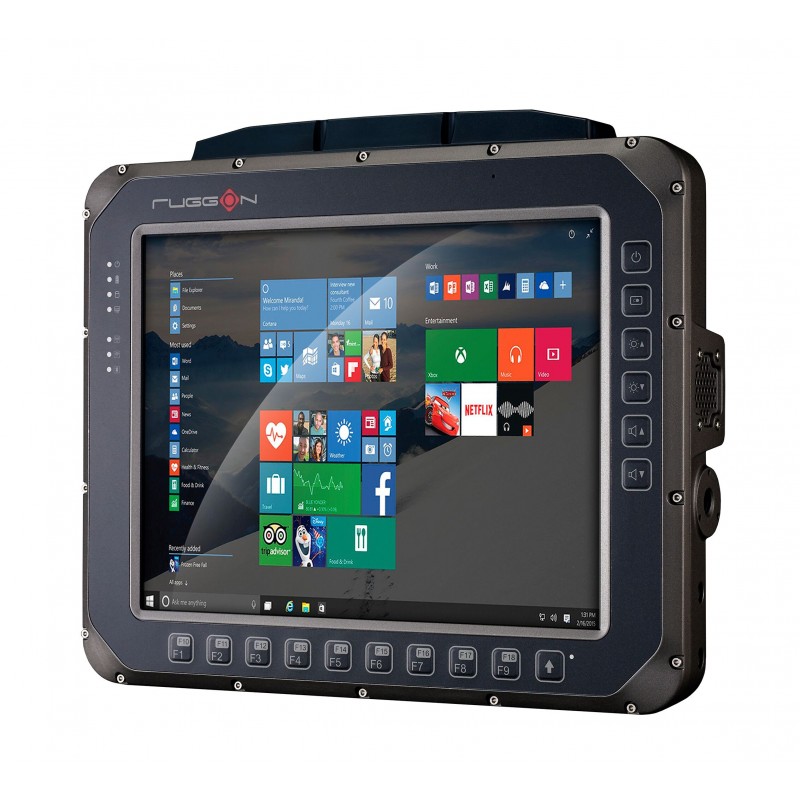

12" Robust Tablet PC with IP 66
Intel® Core™ 3955U 2GHz
4GB DDR3L RAM, upgradeable to 32GB
M.2 2280 SSD, SD SLOT
built-in 3-axis sensor, dual speaker
700 nits LED backlight
Resistive touch, support defroster function
9 x programmable button
2 x contrast adjustment button
2 x sound adjustment button
2 x RS232 (COM1 with power), RS-232/422/485
2 x USB 2.0 / 3.0, USB 2.0
1 x CAN bus (SAE J1939 / OBDI II supported)
1 x Audio jack
Vesa 75/100 mounting
Power supply 9-60V DC

Windows 10 IoT Enterprise

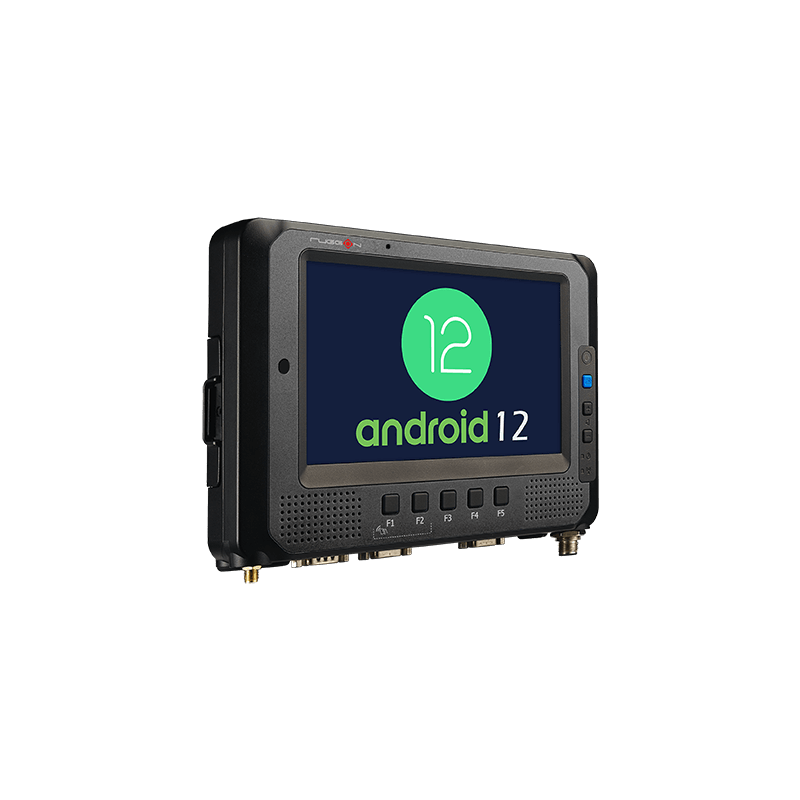

Qualcomm® Snapdragon™ 660 Octa-Core, 1.9GHz
4GB LPDDR4 SDRAM
32GB eMMC Storage
OS Support: Android 12
IP65, MIL-STD-810H
vibration, shock and 5 feet drop resistance
7 "WSVGA, 1024 x 600
Capacitive touch with Gorilla glass
850 nits
2 x USB-C 3.1

2x USB 2.0
1 x RS232
1 x Micro SD slot, 1 x Micro SIM slot
1 x Docking connector
1 x Gigabit Ethernet (RJ45)
Wi-Fi
Camera: 2MP front, 8MP backside with LED FLASH
AC adapter (65W, 100-240V AC, 50 / 60Hz)

9~36 VDC input

Ignition sense with delay on/off setting

UPS backup battery

Vehicle power protection (ISO7637-2)

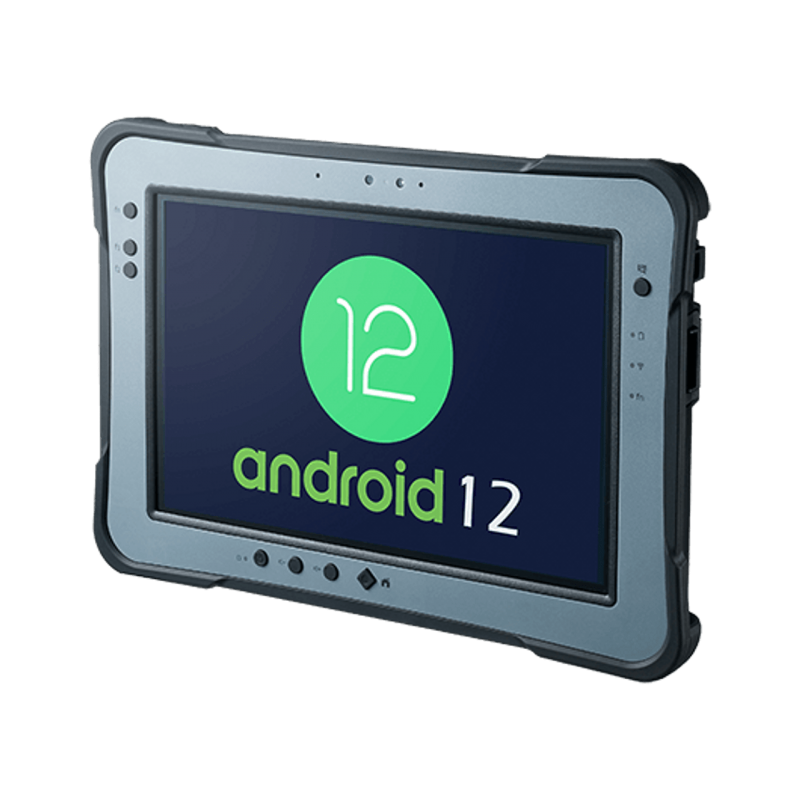

Qualcomm Snapdragon™ 660 1.9GHz
4GB RAM

64 GB eMMC
IP65, MIL-STD-810H
1000 nits sunlight readable display, 1920x1200 Gorilla Glass
GNSS, Wi-Fi, Bluetooth and optional 4G LTE
Capacitive touch (digitizer, touch gloves, palm detection)
Vibration, shock and 5 'drop resistance
2 megapixel front camera, 8 megapixel rear camera (LED flash ) 1 x RS-232, 1 x USB3.0
2 x Nano SIM slot
Optional RF pass-through connector for WLAN, GNSS, WWAN
1 x 12 pin docking connector
1 x RJ 45 gigabit ethernet
AC adapter (65W, 100-240V AC, 50 / 60Hz)
Battery with 4500mAh

Android Tablet

Intel® Atom™ E3815 1.46GHz
2GB DDR3L SODIMM; mSATA and Micro SD slot
500 nits with auto-dimming
Capacitive multi-touch (PCT)
5 x programmable buttons
2 x volume adjustment buttons
1 x RS-232, 1 x RS232/422/485
2 x USB (3.0, 2.0)
1 x Dual Micro SIM slot
1 x CAN bus (SAE J1939 supported)
1 x Gigabit Ethernet (RJ45)
IEC 60529 IP65 (except bottom I/O)
Vibration (during operation) : MIL-STD-810G, Method 514.7 c2/c3/c4
Shock (during operation) : MIL-STD-810G, 40G at 11ms Terminal / Sawtooth
-30°C to +60°C
9~36 VDC input
Vehicle power protection (ISO 7637-2)

Windows 10 IoT

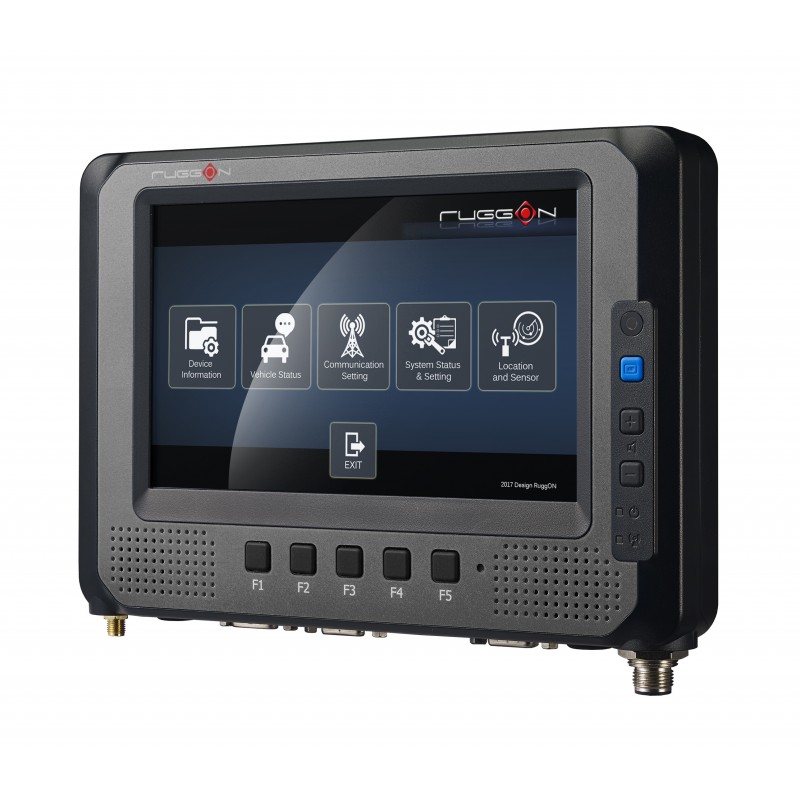

7 "Robust Tablet PC with IP65
Intel® Atom ™ E3815 1.46GHz
2GB DDR3L SODIMM
mSATA SSD, Micro SD slot
built-in 3-axis sensor, dual speaker
500 Nits LED Backlight
Capcitive Multi Touch
5x Programmable Button
2x Sound Adjustment Button
1X Contrast Adjustment Button
1 x RS232 (COM1 with Power)
1 x RS-232 / 422/485
1 x USB 2.0
1 x USB 3.0
1 x Dual Micro SIM slot
1 x CAN bus (SAE J1939)
1 x Audio jack
1 x 9-36V DC Input
Vehicle Power Protection (ISO7637-2)
Vesa 75/100 Mounting
