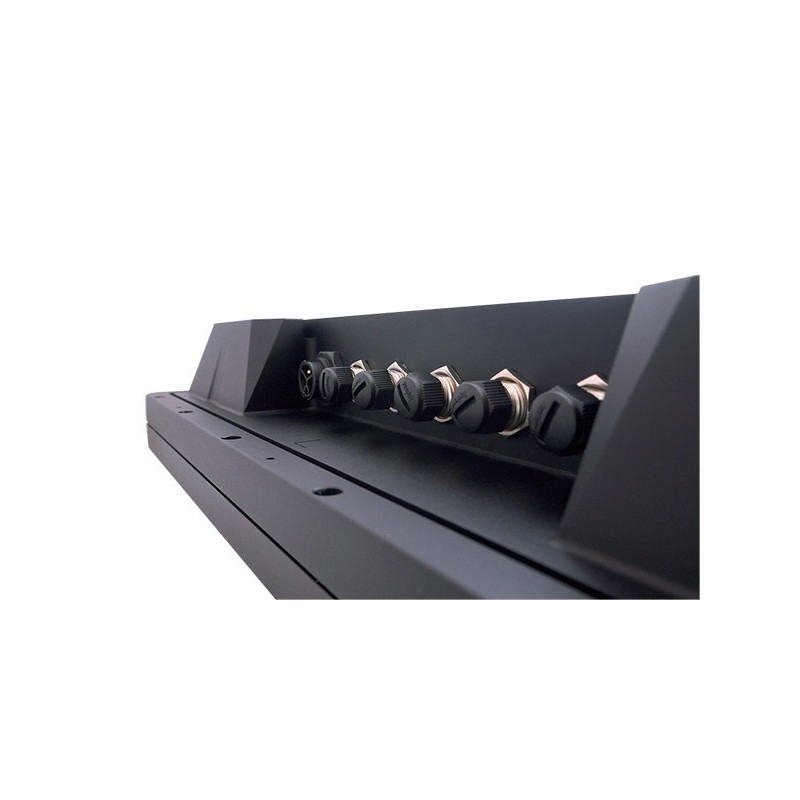

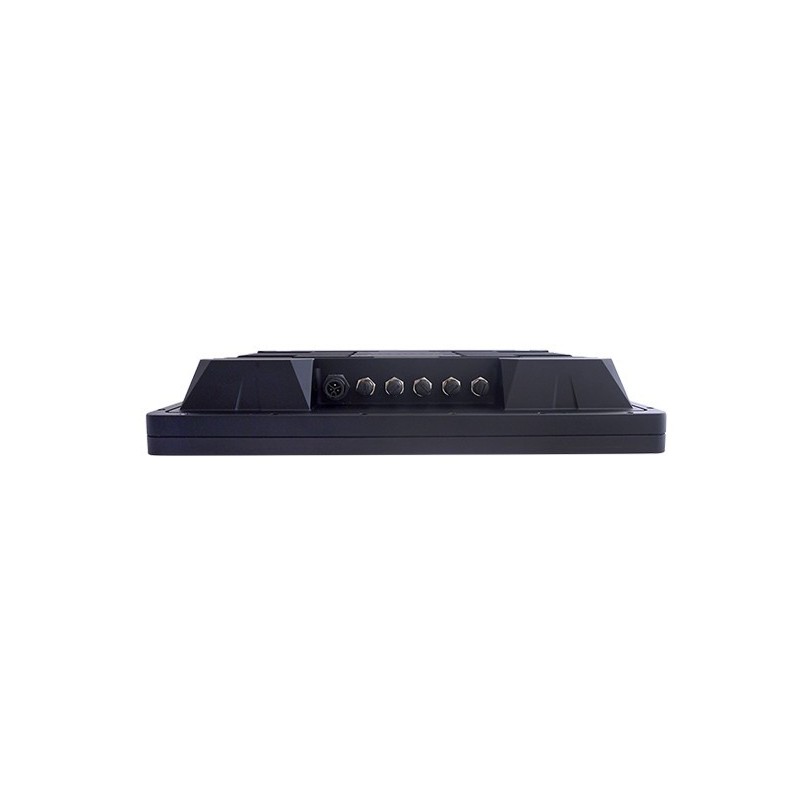

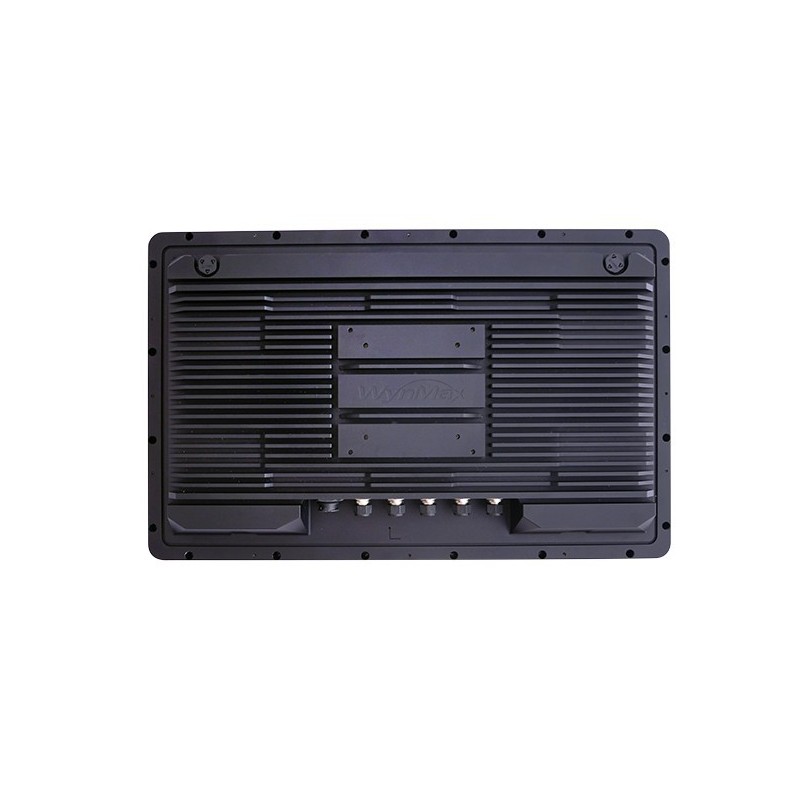

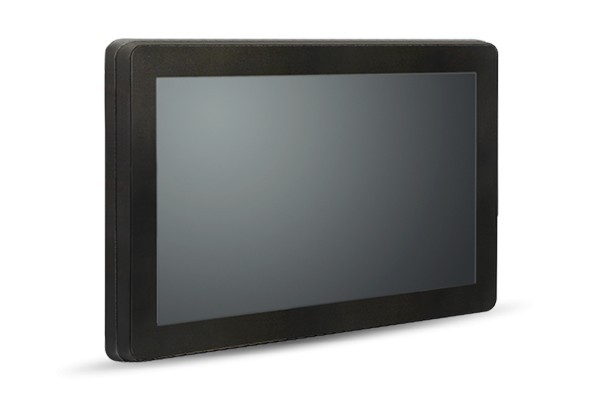

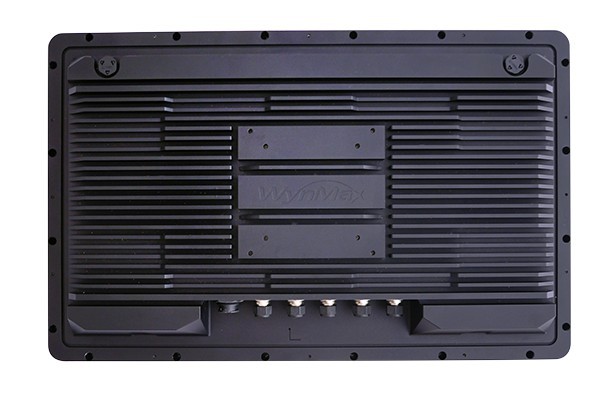

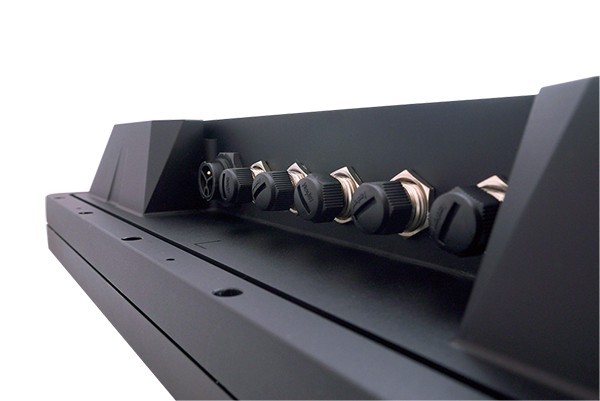

18.5 "Panel PC for Marine Use. IP68 All Pages, Wide Screen with Touch, High Brightness 1000nits for Sunlight

Barbone
18.5 "wide LCD, 1366 x 768, 1000nts
Fanless design
3rd Gen. I3 / I5 / I7 Intel® mobile processor support
Resistive touch screen
4 USB < br> 2 LAN
IP68
Wide range DC 15 ~ 35V input

Call +45 56 66 20 20 for price
Quantity
LÆG I KURV
Product number IPP18.5IX-IP68
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU 3rd Gen. Intel® mobile processor i3/i5/i7 NOT INCLUDED !
Chipset Intel® QM77 PCH
USB 4 x USB 2.0
Operating Temp. 0°C ~ 50°C
Farve Black standard, on request other colors
Ethernet 2 x Gigabit (1 x Intel® 82579LM, 1 x Intel® 82574L)
Forsyning DC 15 ~ 35V input, 3 pin IP68 protection connector
Hukommelse 2 x 204-pin DDR3 1066/1333MHz SDRAM; max. up to 16GB
IP-Tæthed IP68 all sides
LCD Display Type Wide 18.5" WXGA TFT LCD Resolution 1366 x 768 pixel Luminance/Brightness 1000 cd/m2 Color 16.2M colors Pixel Pitch (H/V) 0.3mm x 0.3mm Constrast Ratio 1000 : 1 (typ.) Viewing Angle (H/V) 170o/160o (typ.)
Luftfugtighed 0% ~ 90%
Lyd NO
Montering VESA/PANEL
Porte NO
Touch 5-wire resistive touch screen
Udvidelser 1 x Mini-PCIe (Half size), 1 x Mini-PCIe (Full size, share with mSATA)
Watchdog Yes
Weight 10kg

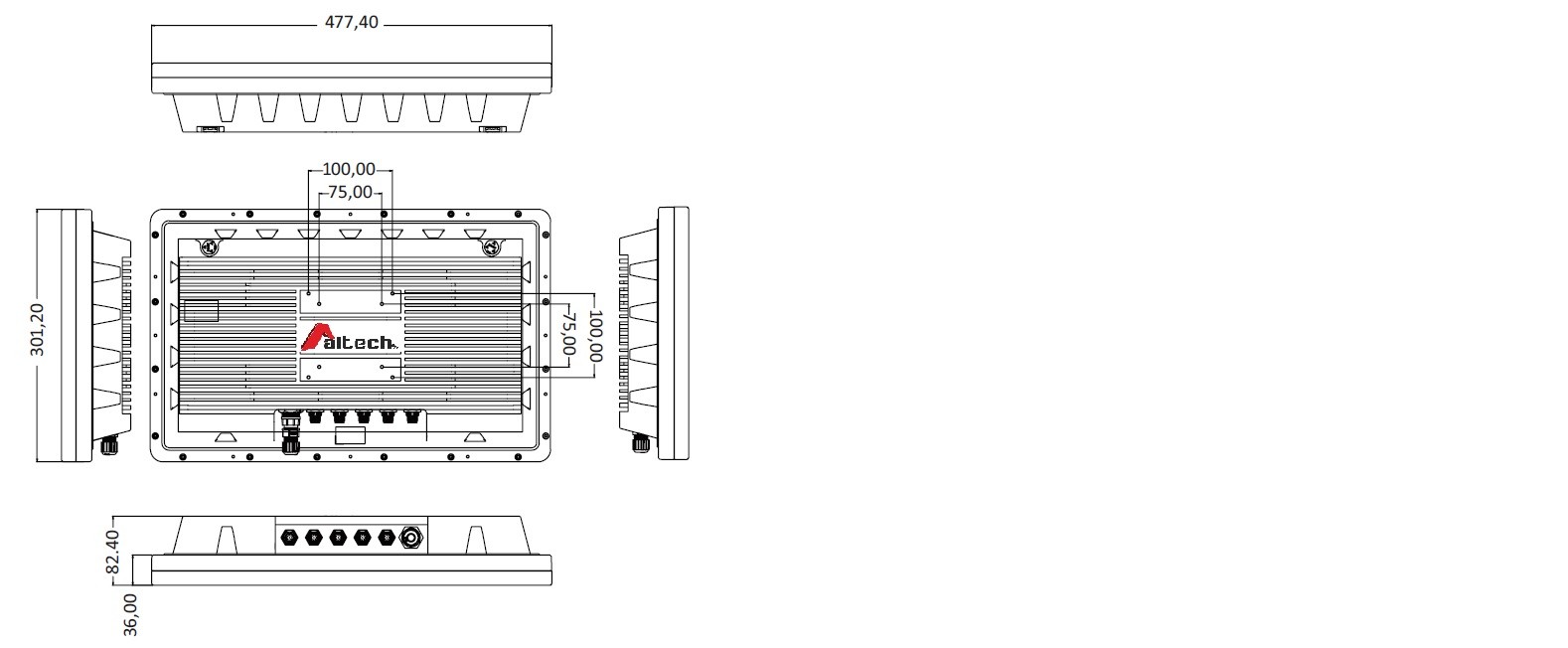

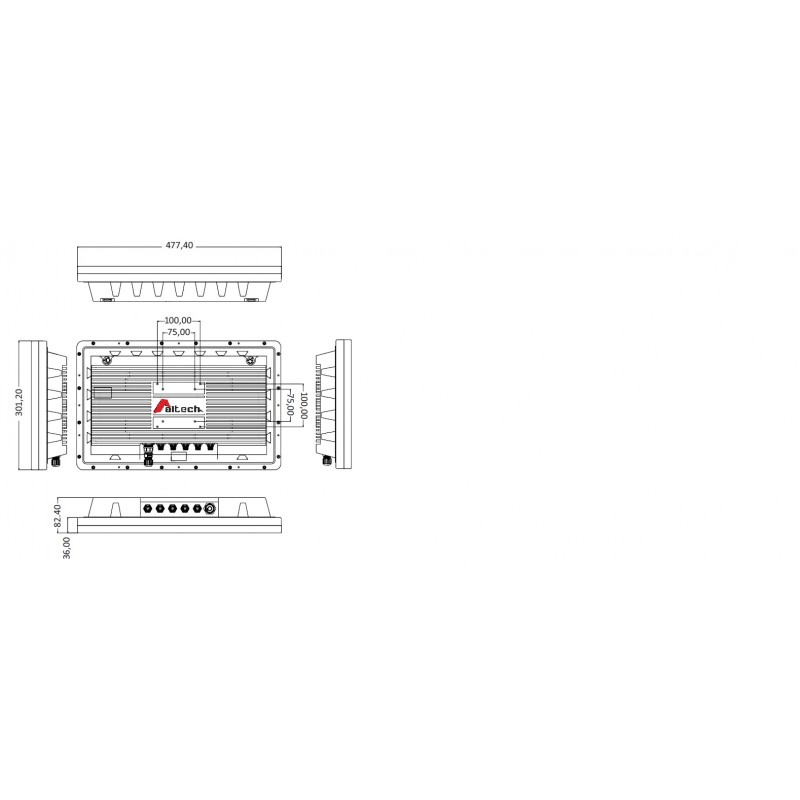

Dimensioner 477.3mm(W) x 82.4mm(D) x 301.2mm(H)

IP68 close panel PC, blah. good for marine use or industrial use where all sides must be IP68 tight.
Can be delivered complete with CPU I3 / I5 or I7 processor, RAM, SSD and OS installed.
Contact our sales department regarding. options.

Other models and sizes are offered.
