5000W Inverter for solar panels, solar inverter discontinued model resale!

5000W Solar inverter, til solpaneler/ solceller. Grid tied inverter
Indgangsspænding 200-500VDC
Udgangsspænding 230VAC
Frekvens 47-52 Hz

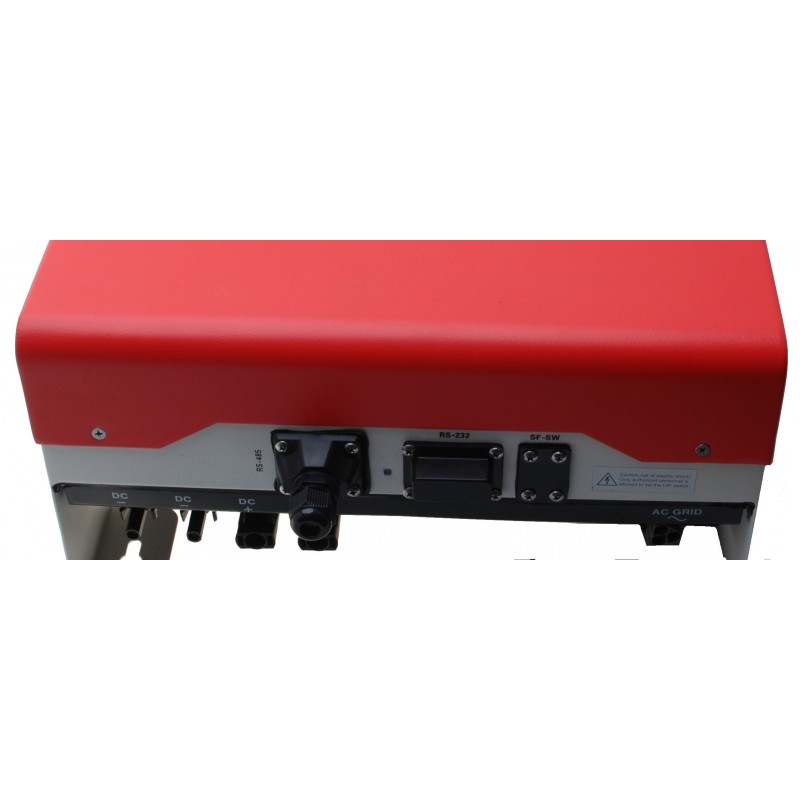

RS232/ RS485 interface

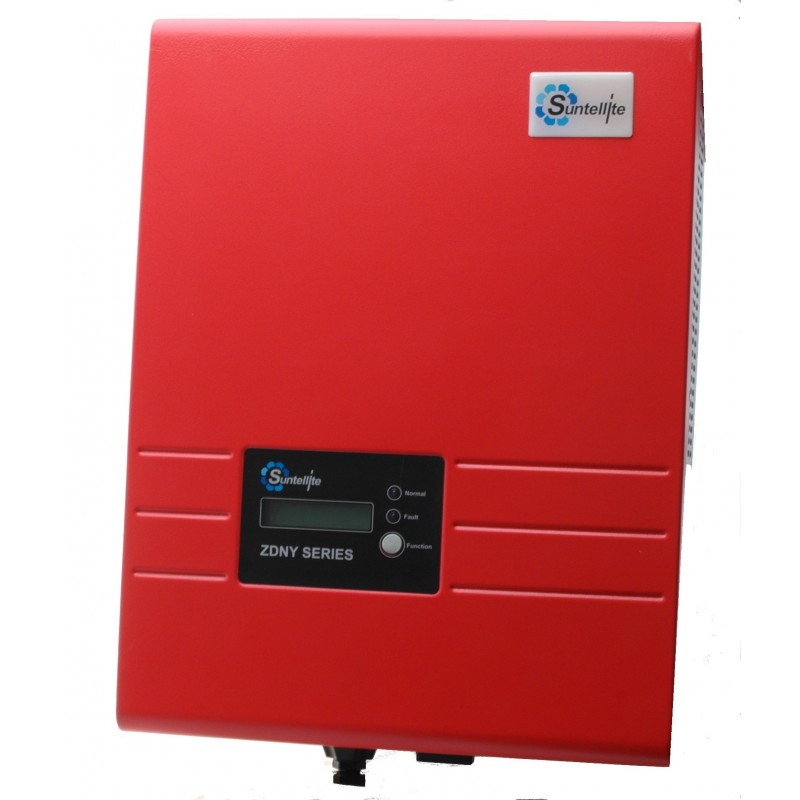

Brugervenlig betjening via LCD display (front)
IP65 tæt
Driftstemperatur -20-60°
Indbygget køler
19,4 kg

Call +45 56 66 20 20 for price
Quantity
This product is no longer available for sale.
LÆG I KURV
Product number CNV500V5000W
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -20-60°
Beskyttelse Protection for overvoltage, islanding, overload, overheating, etc.
Effekt Input up to 5200 W
Frekvens 47-52 Hz
Indgangsspænding 200-500 VDC
Interface RS232/485
Køling 1 x fan
LCD Backlight, 16 x 2 Character LCD
Udgangseffekt Up to 5000 W
Weight 19,4 kg
Dimensioner 329 x 433 x 180mm (W /H / D)

Inverteren konverterer DC spændingen fra solpaneler til AC spænding, så den kan bruges i almindelige elinstallationer.
