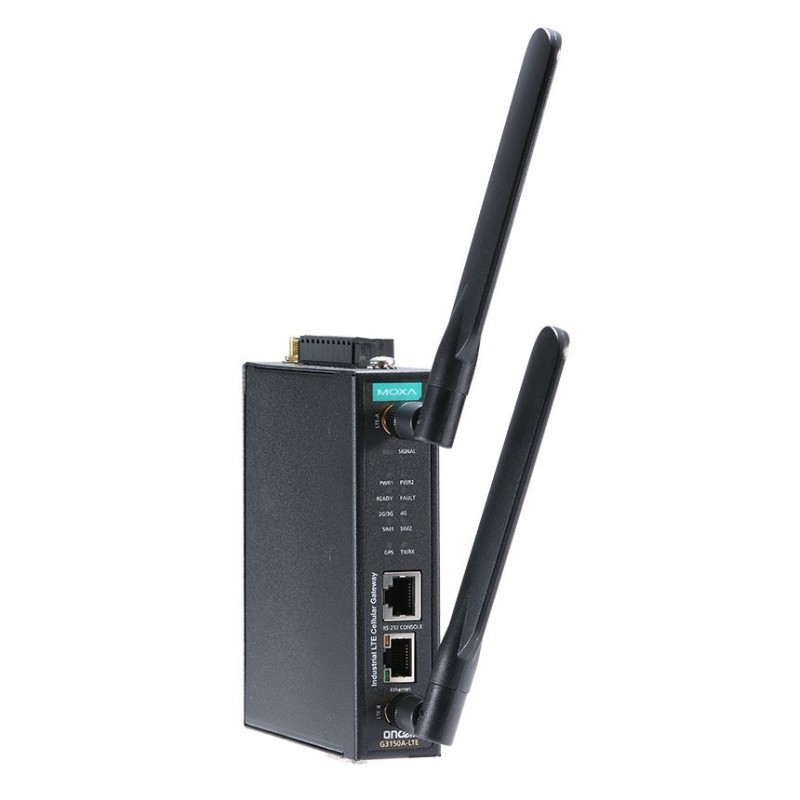

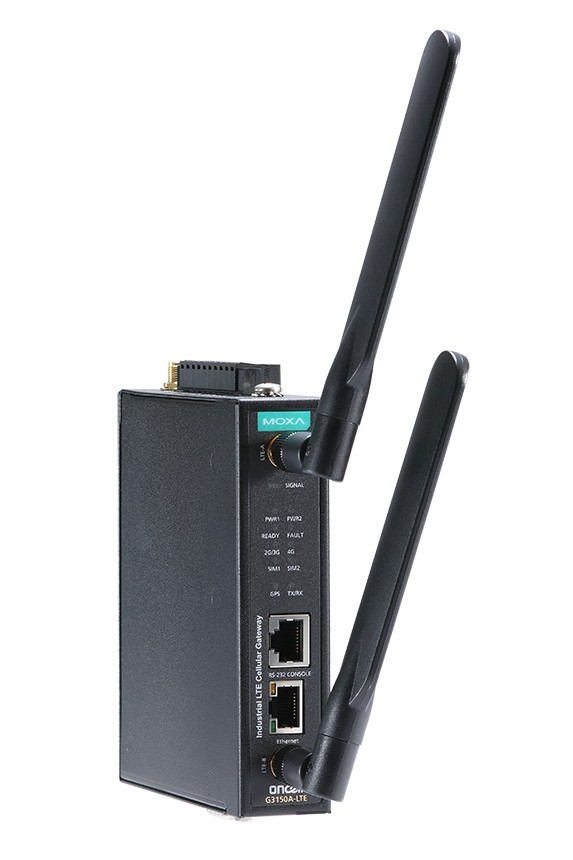

1 x Industrial LTE gateway (RS232 / 422/485) - MOXA OnCell G3150A-LTE-T

1 port industrial LTE Gateway, RS232 / 422/485, -30-70 ° C, MOXA OnCell G3150A-LTE-T

1 port LTE serial to Ethernet gateway / modem, RS232 / 422/485

GSM / GPRS / EDGE / UMTS / HSPA / LTE
Supports VPN and virtual comport
Operating temperature -30 -70 ° C
IP30
Supplied via the 12-48 VDC
DIN rail mounting (bracket supplied)

9,222.40 SEK
Excl. VAT
Quantity
This product is no longer available for sale.
LÆG I KURV
Product number -ETH1SER-GSM+LTE+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -30 to 70°C
Andet RS-232 TxD, RxD, RTS, CTS, DTR, DSR, GND RS-422 Tx+, Tx-, Rx+, Rx-, GND RS-485-4w Tx+, Tx-, Rx+, Rx-, GND RS-485-2w Data+, Data-, GND
Baudrate 75 bps to 921.6 kbps
Firewall NAT, port forwarding, IP/MAC/Port filtering
Forsyning 12 to 48 VDC
I/O I/O interface Alarm Contact 1 relay output with current carrying capacity of 1 A @ 24 VDC Digital Inputs 2 electrically isolated inputs• +13 to +30 V for state “1” • +3 to -30 V for state “0”
Interface Antenna Connectors: 2 SMA female, MIMO for LTE GNSS: 1 SMA (female), GPS (1575.42 MHz), GLONASS (1602 MHz) Console Port: RS-232 (RJ45). Ground Screw: M5. Reset Button: Power Reset
Materiale Housing Metal, providing IP30 protection
Netværk LAN: Number of Ports 1 Speed 10/100 Mbps, auto MDI/MDIX Connector 8-pin RJ45
Protokol ICMP, DDNS, TCP/IP, UDP, DHCP, Telnet, DNS, SNMP, HTTP, HTTPS, SMTP, SNTP, ARP
Standarder GSM/GPRS/EDGE/UMTS/HSPA/LTE
Stik Number of Ports 1 Serial Standards RS-232/422/485, software selectable Connector DB9 male
Weight 492 g
Dimensioner 126 x 30 x 107.5 mm

1 ports LTE seriel til ethernet gateway/ modem, RS232/422/485
