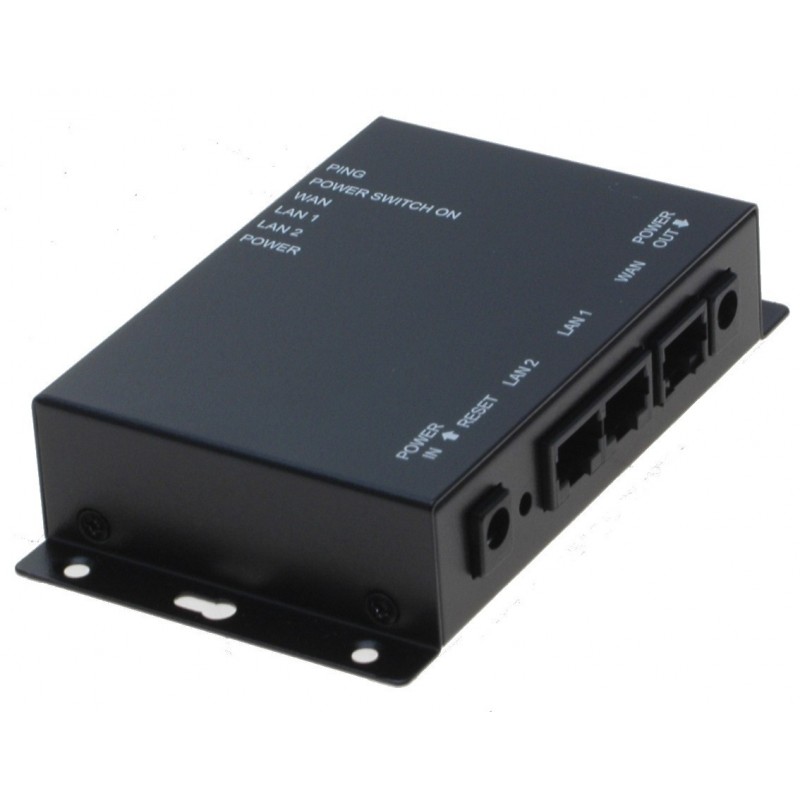

Remote control on and off DC voltage via the network - "IP Ping Watchdog" for auto reset of equipment - 12VDC / 2A

Name: Remote control on and off DC voltage via the network - "IP Ping Watchdog" for auto reset of equipment - 12VDC / 2A
Brand: Binär Teknik AB
SKU: NPOWER1
Price: 2950.4 SEK
Availability: Discontinued

Remote control of the DC voltage
2 x LAN and 1 x WAN port - network switch
Power supplied from 12VDC - supplied
Output voltage 5VDC or 12VDC / 2Amp
2 x DC cables with Jack 5.5 / 2.5mm and 3.1 / 1.3mm of 1.0m
2 x CAT5E UTP network cable of 1.0m

2,950.40 SEK

Excl. VAT

Quantity

This product is no longer available for sale.

Product number NPOWER1

Get Volume Offer DOWNLOADS

Ask a question

Download PDF

Specifications

Operating Temp.	-40C to +85C
Forsyning	Dual power 5V/12V input & output. If power input to unit is 5V, it will provide 5V output to target device. If power input to unit is 12V, it will provide 12V output to target device.
Interface	• Power in, power out • LAN 1, LAN 2, WAN port • RESET
Kabel	2 x DC cables w/ Jack 5,5/2,5mm and 3,1/1,3mm (1,0m) 2 x Cat5e UTP cables (1,0m)
LED	For: PING • Power switch on • WAN • LAN1 • LAN2 • POWER
Materiale	Metal housing
Strømforsyning	12VDC 2A
Weight	0.2kg
Dimensioner	120 x 70 x 25 mm

Automatic or manual on / off function with password protection.
Select 5 x Ping IP address. If Ping fails, turn off the device output a brief moment and turn on the power
other connected device power can be 12V 2a.
