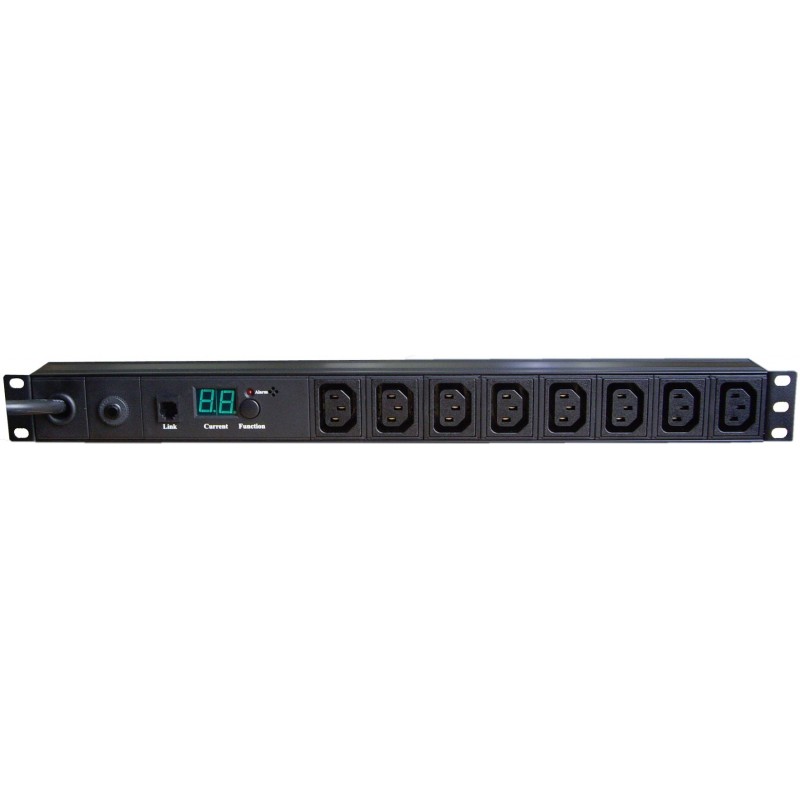

8 Port PDU Slave device for NPower-MST +. Monitoring and turning on and off via LAN and Internet

Multi-band 4G LTE Cat.1 controller, logger and alarm

Setup via USB, SMS and HTTP API

USB setup - use USB cable with Mini B male

2 digital “dry contacts”. High on contact

4 analog inputs, 0 - 10VDC or 4-20mA input (10bit)

4 relay outputs, COM, NO and NC

1-Wire input for up to 8 Teracom sensors

1 x RS485 for max. 8 MODBUS RTU sensors

Data logger with 70,000 loggings

Upload data to HTTP/HTTPS Post in XML/JSON

SMS alarm and Email alarm for 5 recipients

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

10 to 28VDC, 370mA @ 12VDC - optional PSU

Dimensions: 158 x 119 x 34 mm

Weight: 470g

Temperature: -20 - +55°C

ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module

Open board til smart temperatur- eller fugt måling and styring
Password beskyttet Web baseret konfiguration og kontrol
1 x digital input med “dry contact” og “logic level” mode
1 x analog input fra 0 til 60VDC
1 relæ output med NO/NC kontakter
1-Wire input til 1 temperature eller fugtmåler
SNMP v.1 support
SNMP traps ved alarm
E-mail udsendelse ved alarm
SMTP med godkendelse (SSL/TLS er ikke supporteret)
HTTP og XML API kommandoer
Remote FTP firmware update.

GSM/LTE alarm - 4G

Configuration via USB (Windows program) or SMS

2 x digital inputs with "dry contact" or "logic level" mode

2 x analog inputs from 0 to 60VDC, 10 bits

2 x relay outputs with NO/NC contacts

1-Wire interface for 4 Teracom temperature and humidity sensors

Input can be navigated with alarm text etc.

SMS alarm - up to 5 numbers

Email alert - up to 5 email recipients, SMTP with TLS support

1 relay can be activated with calls from up to 100 phone numbers

Push mode – XML data is sent via HTTP Post to a remote server. Response from server may contain relay setup.

MQTT 3.1.1 support

Firmware update "over the air"

Supply voltage: 8 - 28VDC, 2Watt - optional PSU

Dimensions: 109 x 65 x 32 mm

Weight: 152g

Mini vertical level switch / swim switch
Assembly: Vertical
contact output: Direct load
Cable length: 30 cm
Operating temperature: -20 ° C to + 80 ° C
AC voltage Max: 130V < Br> DC voltage Max: 180V
Max current: 700mA

GSM/3G/4G LTE

2 x digital input, compatible dry contact and wet contact, supports EOL connection;

2 x relay outputs (240VAC@3A)

One relay output can be turned on/off by sending an SMS text

The second relay output can be turned on for 4 minutes if inputs are activated

Supports input status recovery, external power failure alarm via SMS texts

Must be programmed with USB cable to PC

9~36VDC supply voltage and power source output for external device

Power supply (adapter) included

Up to 3 users can receive alarm and daily report SMS

Up to 5 users can receive alarm calls - call + SMS

Free SMS APP

Rechargeable backup battery and power monitoring alarm

Metal enclosure, IP30

Operating temperature: -10 - +70°C

Dimensions: 70 x 88 x 30 mm

Wall installation and DIN

Whip antenna with magnetic base, 3m cable included

8 Port Networked PDU with Individual On / Off
19 "Rack Mount, 1U
User Interface via Web Browser with Password
Scheduled on / off per port
Programmable Sequential Power Up
8 x IEC C13 outputs, max. 10A - front mounted plug
2 x RJ45 Inputs for temperature and temperature / humidity sensor with alarm

1x Seriel Connection for control
8 x Watchdog with ping of each connected PC
SNMP Get / traps and e- mail support
Supports Iphone and Android

Intelligent 8 ports Power Distribution Unit
Justerbar sekventiel tænd / sluk
Samlet strømovervågning
Samlet spændingsindgang
Outputovervågning
Total brugt kWh
Effektfaktorgenkendelse
Driftstemperatur: Op til +55°C
8 x låsbar IEC-C13 netudtag
120 - 240VAC
Styr op til 3 PDU slaver fra en master
1 x C20 16Amp
Sensor for temperatur- og fugtighedsalarm
Alarm for vand via infrarød sensor
Røgdetektor
Automatiske alarmmeddelelser
