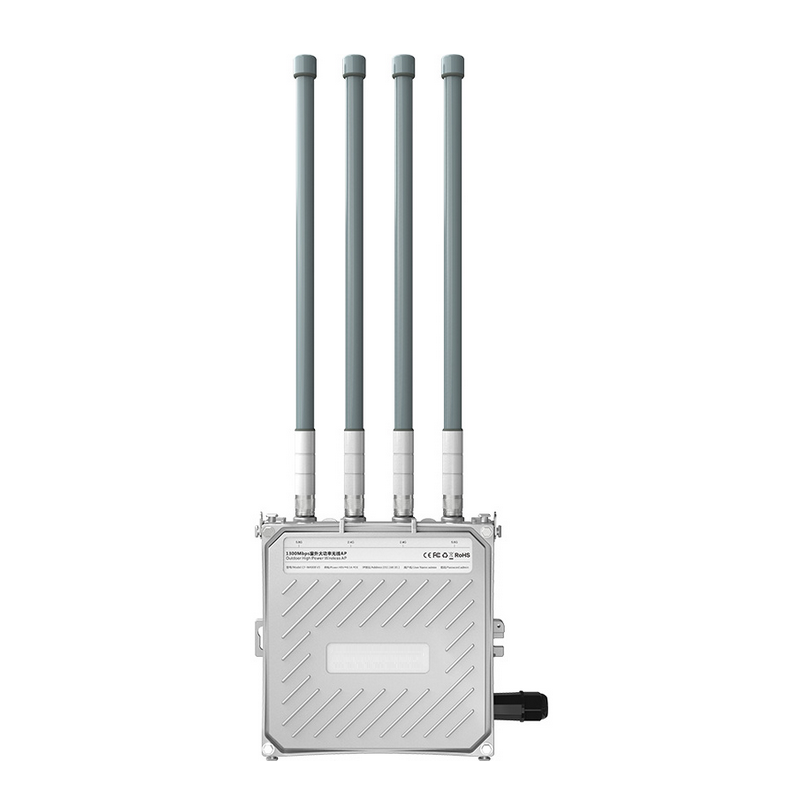

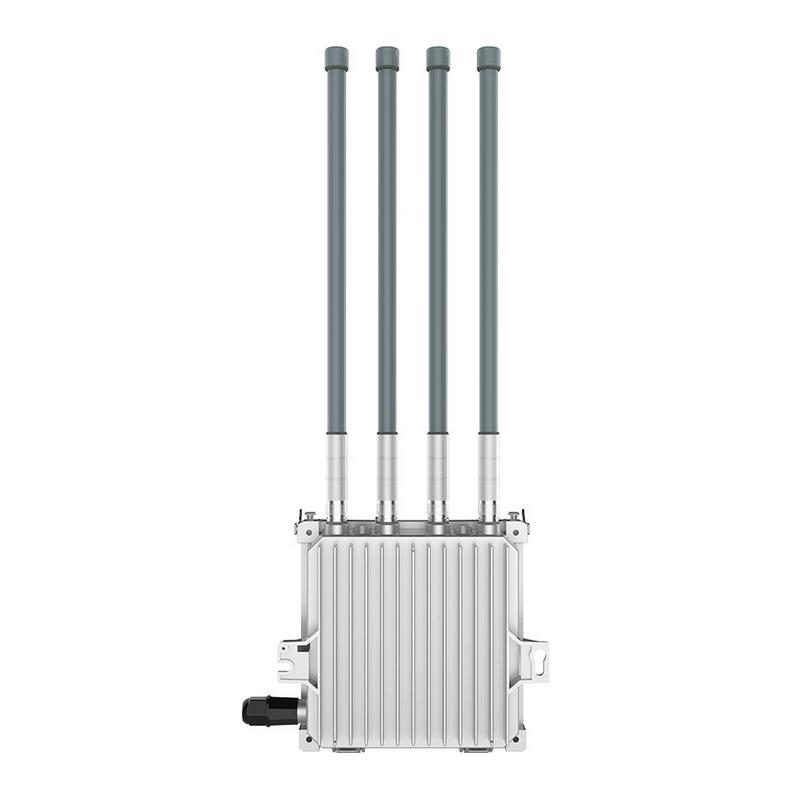

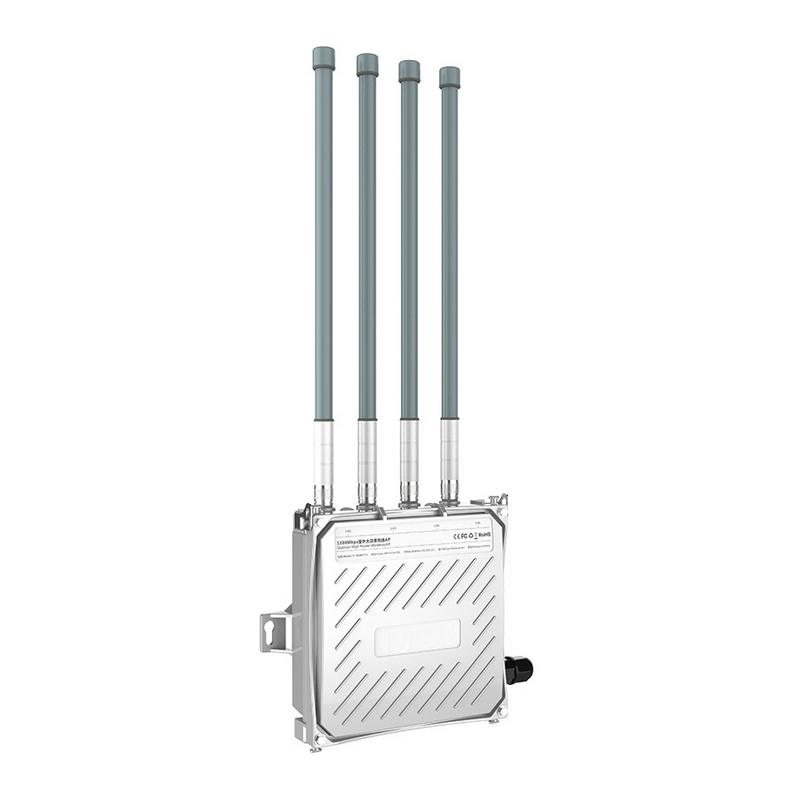

1300Mbit outdoor Dual Band CPE Access Point, Repeater, Bridge. 2.4 / 5GHz, 500mW, 1 x RJ45 WAN port. PoE, -40 - +65°C

Quelcomm, QCA9563+QCA9886+QCA8337 Chip, 720MHz CPU; DDR2 128MB, PA: 2.4G SE25676L, 5,8G SKY85728-11
With "Watchdog" for "restart" and "Self Repair"
Access Point, Bridge, Client
4 x N-female, rod antennas 360 degrees omni-directional included
Antenna length: 528mm
Dual Band: 2.4 GHz (450 Mbps), 5 GHz (867 Mbps)
IEEE802.11b/g/n/ac
Speed: Up to 1300 Mbps
Transmit power: 500mW - Adjustable
RJ45 ports: 1 x 10/100 / 1000 Mbps RJ45 WAN port
IP67 - Die-cast aluminum housing
Dimensions: 310x255x100mm
Pole-mounted
Power supply via PoE or supplied 230V adapter
Working temperature -40

4,480.00 SEK
Excl. VAT
Quantity
This product is no longer available for sale.
Product number WLAN-AP1300U
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

LAN 1*10/100/1000Mbps WAN RJ45 Ethernet Port, PoE supported
Operating Temp. -40 C~55C
Antenne 4x 8dBi Detachable Antennas
Approval ISO/CE/FCC/ROHS
Forsyning Power Supply: 802.3af/802.3at POE Power Supply(0-100m);
IP-Tæthed IP67
Luftfugtighed 10%~90%RH
Montering Pole-mounted
Signaler Output Power (Max): 500mW (27dBm); Receiving Sensitivity (Max): -96dBm; Frequency: 5.8GHz: 5.18-5.825GHz;2.4GHz : 2.412GHz-2.472GHz;
Strømforbrug < 24W
WiFi sendeeffekt 500mW(27dBm)
Dimensioner 310x255x100mm

Dual band outdoor Wifi Access Point with great transmitter power. 4 pcs. N-female for antennas. Robust cast aluminum housing and accompanying mast bracket.
With 1200 Mbit, this product will cope with the vast majority of demanding tasks.
