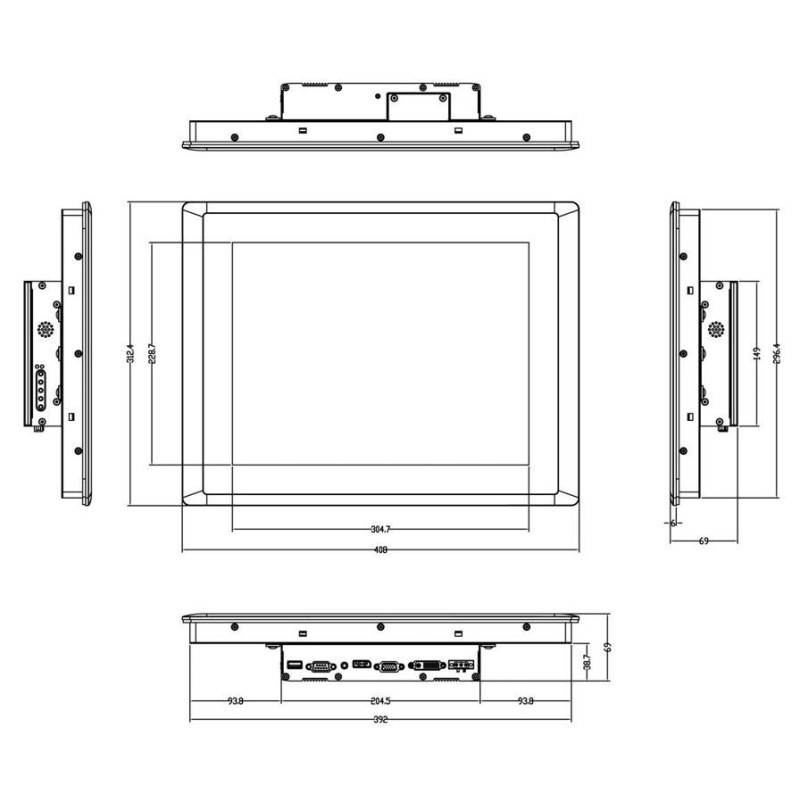

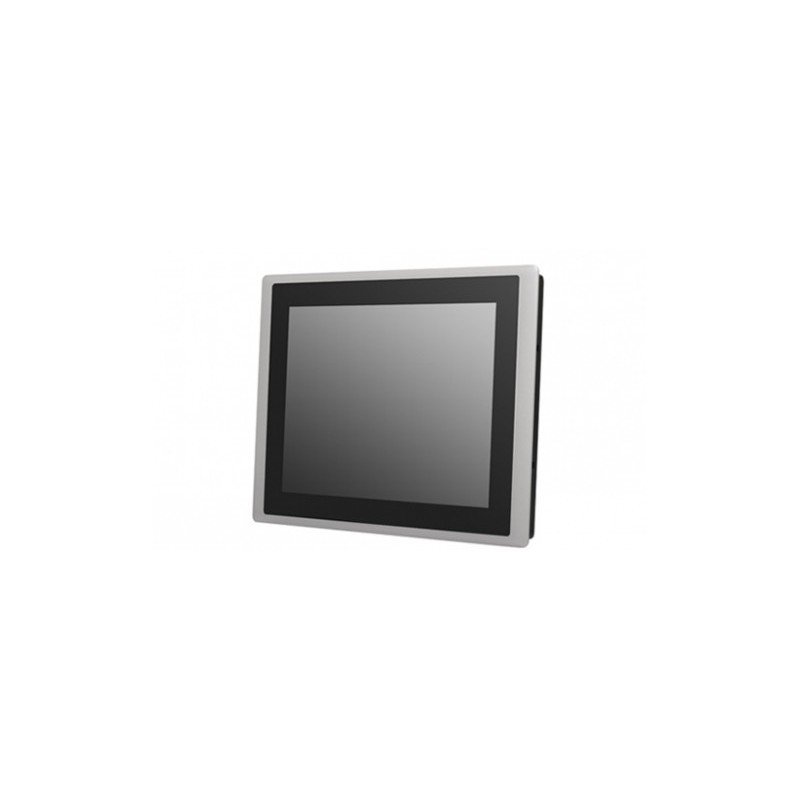

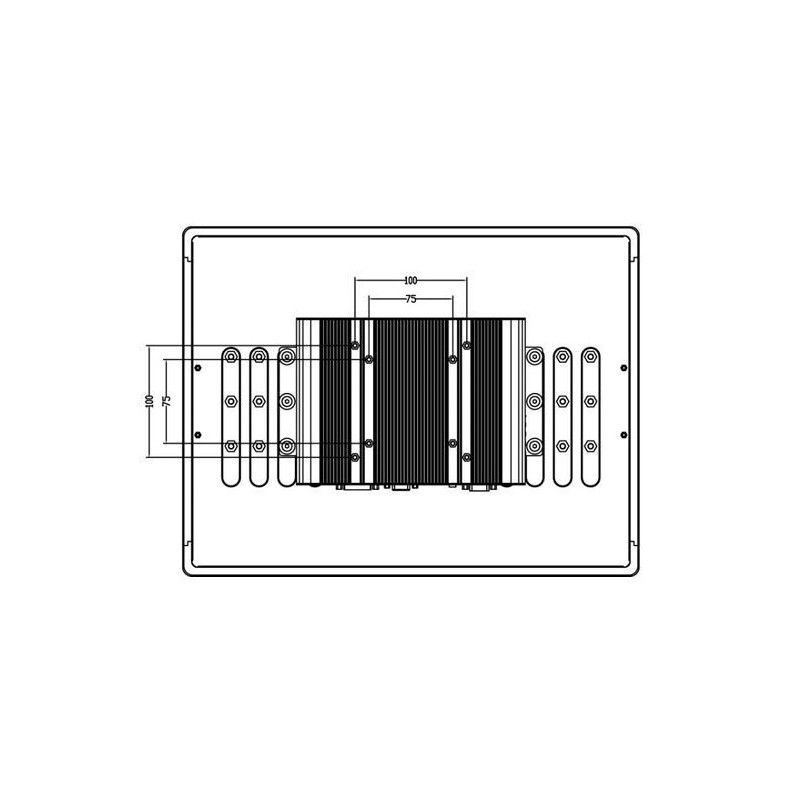

15" Monitor TFT-LCD, Resistive Touch, IP65 Front, VGA, DVI-D, DisplayPort, 9~48VDC

21.5" TFT 16:9
Metal chassis
Control panel is behind the front
IP65 only on the front
Resolution: 1920x1080
10-point PCAP Touch
Nits 1000cd/m² high brightness
Supports multiple video input interfaces: HDMI 1.4b, VGA, AV
2 speakers
Supports HDMI 4K30p, 2160p 24/25/30, 1080p 24/25/30/50/60 Hz
Supports Windows XP/7/8/8.1/10, Android, Linux and MAC OS (touch driver)
Front frame dimensions: 556 x 344.5 mm
Depth: 48.2 mm
Cutout dimensions: 540 x 330 mm
Mounting clip included
12-24VDC (≤37W (15V)) - PSU included
CANNOT STAND DIRECT SUNSHINE! (requires optical bonding)

15" 1024x768

4:3

Resistive Touch

Contrast 1500:1

High brightness: 300cd/m2. (1000nits model available)

HDMI, VGA, DVI, A/V inputs (BNC)

Viewing angle: 170/170 (H/V)

Metal housing

VESA & rear mounting methods

12VDC <16Watt

-20℃~60℃

Dimensions: 402 x 289 x 45 normal

Dimensions: 400 x 279 x 44 mm (open frame)

10.1 "TFT panel
Controls Module
VGA, HDMI
50pin TTL interface
AV Interface
Remote control, push buttons and Controls Cable
DC5-12V 5.5mm Jack Connection
Resolution 1024x600
235 (W) x 132 (H) mm

12.1” Stainless Steel Display
standard 450/500 nits OPTION: 1000nits
Oprtion: Optical Bonding for UV protection
True Flat Front Bezel Design and Grade 304 Stainless Steel Enclosure
(Grade 316 for Option)
IP66/IP69K Rated with M12 Connectors
Option! Resistive Touch, Projected Capacitive Touch, and Glass
Touch Interface USB
Touch on/off Button on the Side Edge for Hygienic Cleaning
VESA mount 75x75, OPTION: Yoke mount
0~50°C / -20~60°C (option)
Power input 9~36Vdc (1xM12 3-pin Connector) 8W/12W (high nits display)
Size 335x365x53mm

10.1" TFT 1280x800 (16:10)
Front panel IP66 Standard / IP69K Option
Aluminum cabinet
VGA, DVI, HDMI and DP Input
Supply voltage: DC 9 ~ 36V
Contrast : 800:1
Brightness: 350 Nits Standard / 1000 Nits Option
Touch Via USB: Projected Capacitive Standard / Resistive Option / No Touch Option
Touch Via RS232: Option
VESA 100 and Panel Mount
Dimensions: 285 x 189 x 48.9mm
Weight: 1.9 kg
Operating temperature: 0 ~ +50°C Standard / -20 ~ +60°C Option

19" TFT touch screen
With foot and VESA mount
VGA, HDMI, BNC
1280 x 1024 - 5:4 format
Resistive Touch resistive (USB)
Power supply: 12VDC (supplied)
OS SUPPORT: DOS / Win 9X (95, 98) / ME / CE / NT / XP / 7 / 8 / 10
Please note that the data may change continuously due to the rare model. Contact sales for special requirements.

15" 1600nits Open Frame Monitor for installation.
15" TFT LCD, panel
15" sunlight readable, high brightness (1,600 nits)
Resolution: 1024 x 768
LED backlight
High contrast ratio (1000:1)
Wide temperature range (-20°C~70°C)
12VDC
Low power consumption
BL MTBF: 70,000 hours

19" TFT SXGA
5:4 LCD with PCAP Touch
50,000 HRS LED Backlight Life
1x VGA, 1X DVI-D, 1x DisplayPort
Resolution Up to 1280 x 1024 (SXGA)
Up to 1600 Nits Brightness
Designed with Aluminum Die-Cast Frame
IP65 Compatible Front Panel
Convertible Display System (CDS) Supported
9~48VDC via 3-pin Terminal Block
