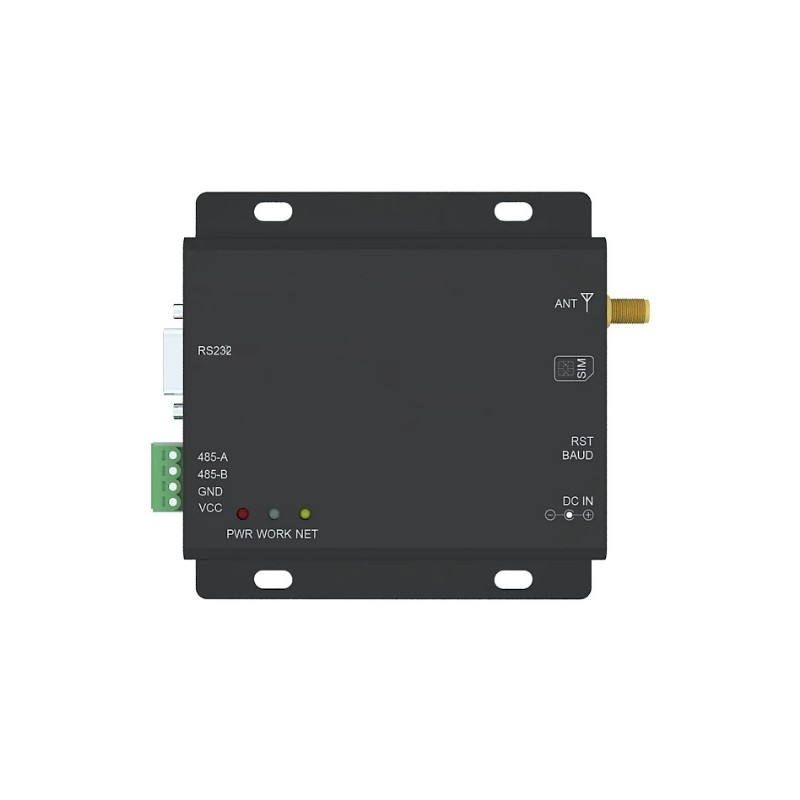

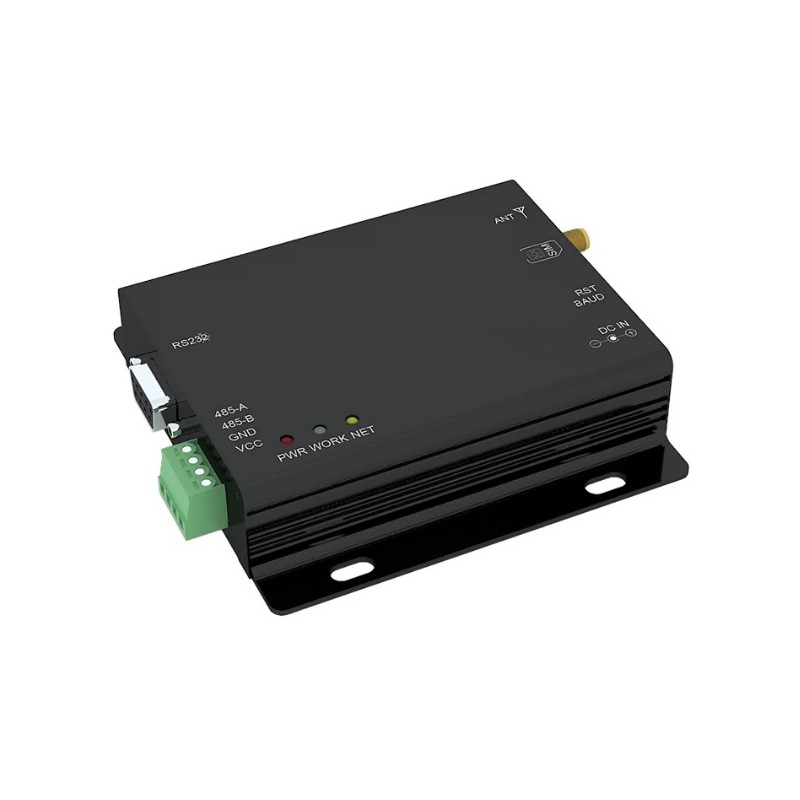

4G Module LTE RS232 RS485 Modbus RTU TCP LTE-FDD WCDMA GSM Wireless Transparent Transceiver Modem

AT Commands Communication
Bandwidth 1.4/3/5/10/15/20MHz
LTE-FDD：B1/B3/B7/B8/B20/B28A
WCDMA：B1/B8
GSM：B3/B8
Input DC 8V-28V
working temperature -30℃-70℃

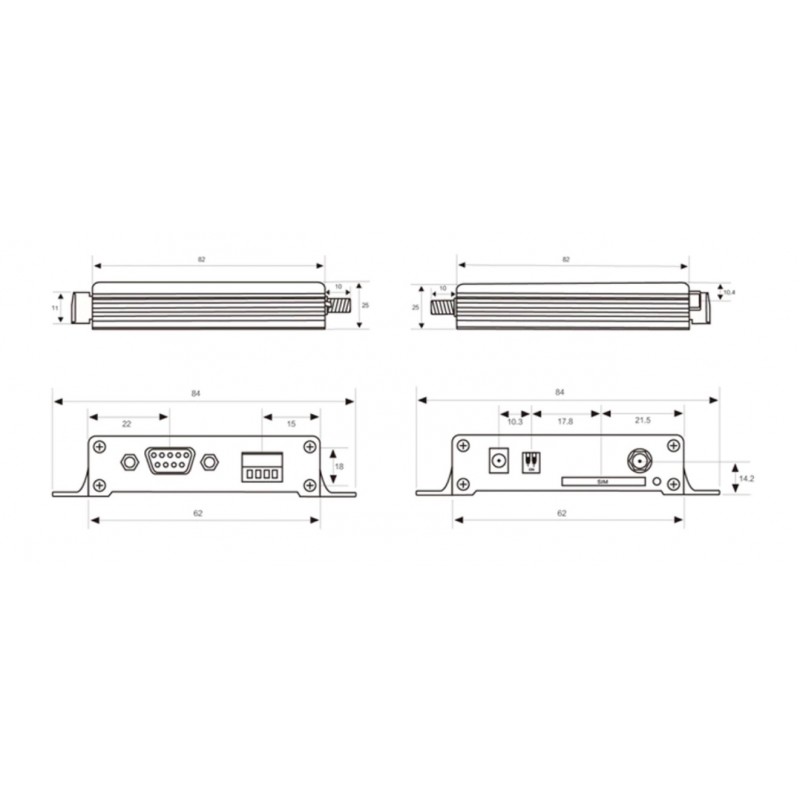

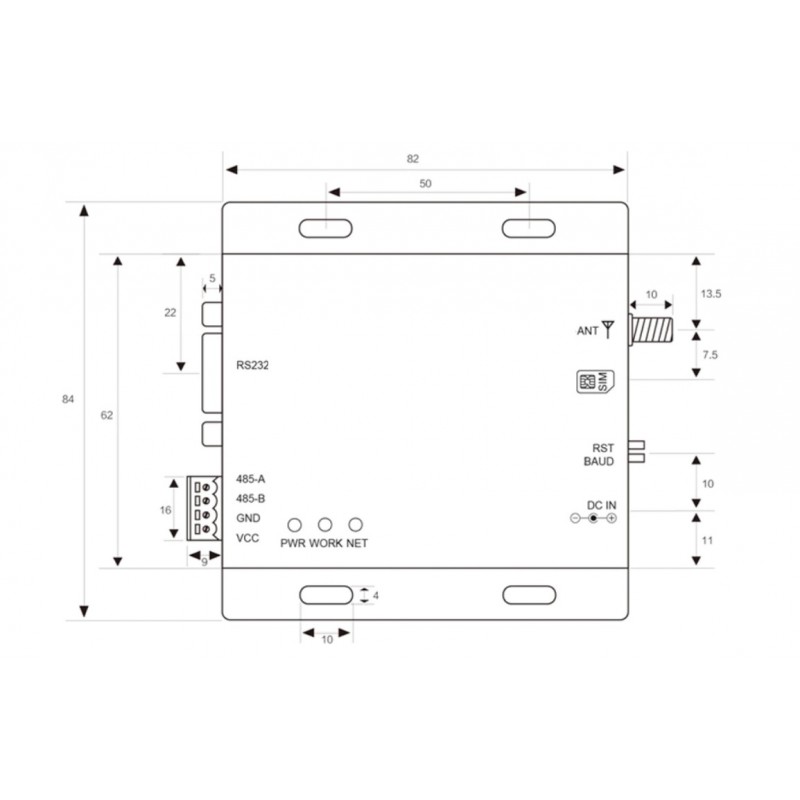

Dimensions 82 × 84 × 24mm
Max upstream rate 50Mbps
Max downstream rate 150Mbps
RS485/RS232

2,080.00 SEK
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number MOD-GSM-4G
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Operating Temp. -30℃- +70℃
Antenne SMA
Baudrate Max 921600bps，default 115200bps
Frekvens 1.4/3/5/10/15/20MHz
Porte RS485 / RS232
Protokol TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTP S/SMTP/MMS/FTPS/ SMTPS/SSL/FILE
Strømforbrug 20mA idle
Strømforsyning DC 8V~28V
Dimensioner 82×84×24mm

Frequency

LTE-FDD：B1/B3/B7/B8/B20/B28A

WCDMA：B1/B8

GSM：B3/B8

LTE characteristic

Support max. of 3GPP R8 non-CA Cat 4 FDD and TDD Support 1.4MHz~20MHz , Downstream support： MIMO LTE-FDD: Max downstream rate 150Mbps, Max upstream rate50Mbps

WCDMA characteristic

WCDMA: Max downstream rate 384Kbps， Max upstream rate 384Kbps

GSM characteristic

GPRS: Max downstream rate 107Kbps，Max upstream rate 85.6Kbps

EDGE: Max downstream rate 296Kbps，Max upstream rate 236.8Kbps

Network protocolcharacteristic

TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/NITZ/CMUX/HTTP

S/SMTP/MMS/FTPS/

SMTPS/SSL/FILE 协 议

PAP (Password Authentication Protocol) and CHAP

(ChallengeHandshake Authentication Protocol)

Antenna

SMA

Data interface

RS485 / RS232

Baud rate

Max 921600bps，default 115200bps

Transmittingpower

Class 4 (33dBm±2dB) for GSM900
Class 1 (30dBm±2dB) for DCS1800
Class E2 (27dBm±3dB) for GSM900 8-PSK
Class E2 (26dBm±3dB) for DCS1800 8-PSK
Class 3 (24dBm+2/-1dB) for CDMA BC0
Class 3 (24dBm+1/-3dB) for WCDMA bands
Class 2 (24dBm+1/-3dB) for TD-SCDMA bands
Class 3 (23dBm±2dB) for LTE-FDD bands
Class 3 (23dBm±2dB) for LTE-TDD bands
FDD B1: -101.5dBm (10M)

FDD B3: -101.5dBm (10M)
FDD B7: -99.5dBm (10M)
FDD B8: -101dBm (10M)
FDD B20: -102.5dBm (10M)
FDD B28A: -102dBm (10M)
WCDMA B1: -110dBm
WCDMA B8: -110.5Bm
GSM 3: -109dBm
GSM 8: -109dBm

Consumption（Typical）

11uA @ power off
1.8mA @LTE sleep(PF=128)
1.5mA @LTE sleep(PF=256)
20mA @idle

Bandwidth

1.4/3/5/10/15/20MHz

Operating temperature

-30℃- +70℃ extending to -40℃~+85℃

Operating voltage

DC 8V~28V

Size

82×84×24mm

RS485/RS232

Andre produkter i samme kategori:

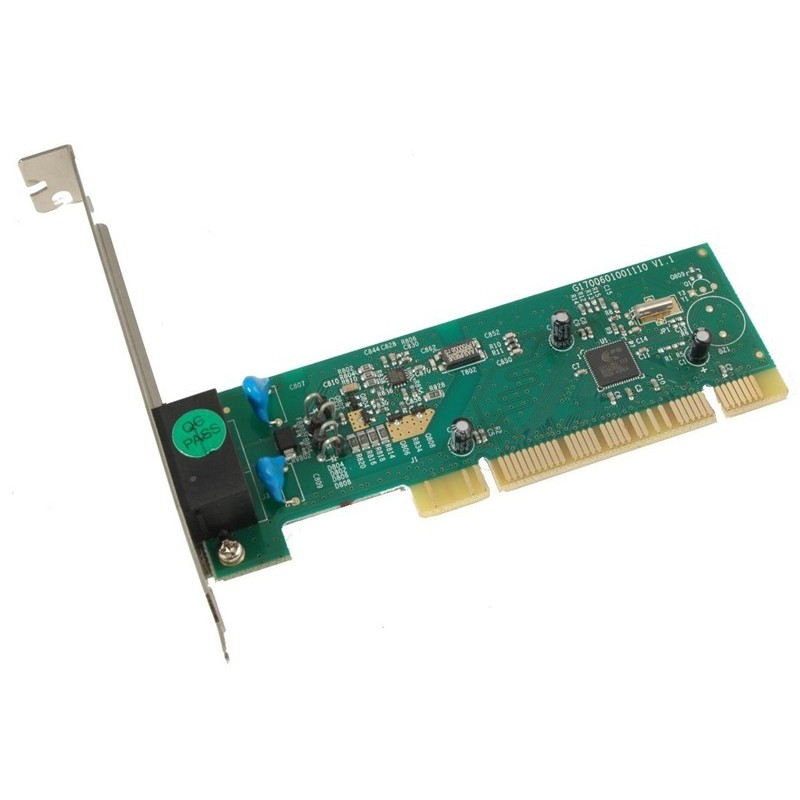

Analog 56K Internal modem for PCI - for data transfer
Internal 56K modem for PCI EOL last in stock

Analogue modem for PCI bus.

684.80 SEK
Item Number: MOD-K56INT
Physically in stock
ADD TO CART
Quick view

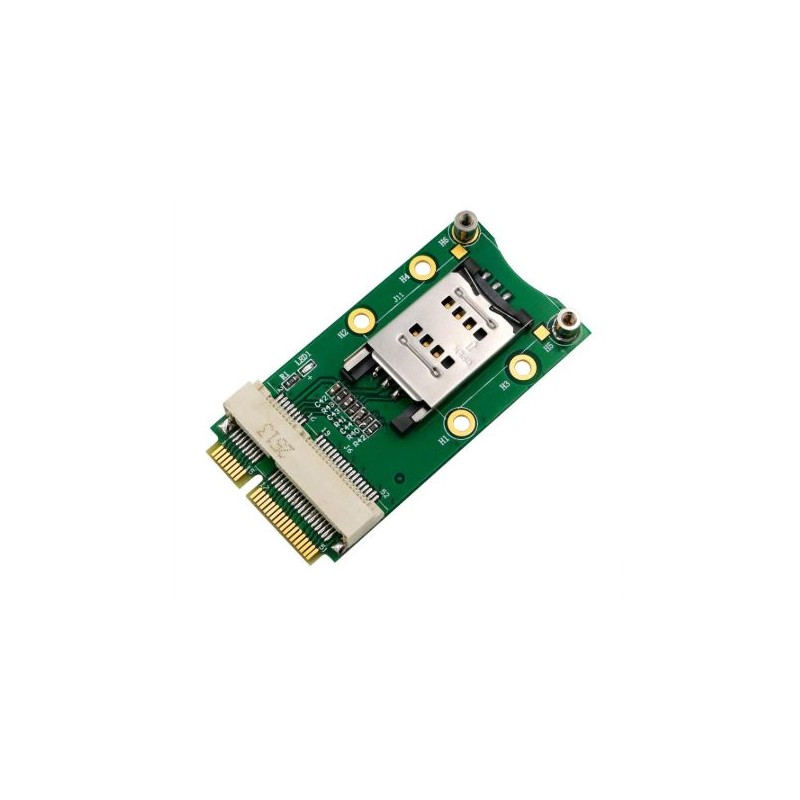

Mini PCI-E Adapter with SIM card slot for 3G / 4G, LTE WWAN, GPS cards, Mini PCI-e Adapter
SIM card interface for Mini PCIe 3G / 4G LTE WWAN, GPS maps

SIM Card socket for 3G / 4G
Mini PCIe Kirke both full and half size mPCIe slot
1 x SIM socket for 3G / 4G
Supports USB interface of the mini PCI-E Cards, 2G GSM, GPRS, 3G, CDMA, WLAN, WWLAN, HSPA mODEM, GPS, 4G WiMAX, LTE, Mini Card two desktop PC.
Dimensions: 60 x 30 mm

392.00 SEK
Item Number: GSM-3GSOCKET-L
Physically in stock
ADD TO CART
Quick view

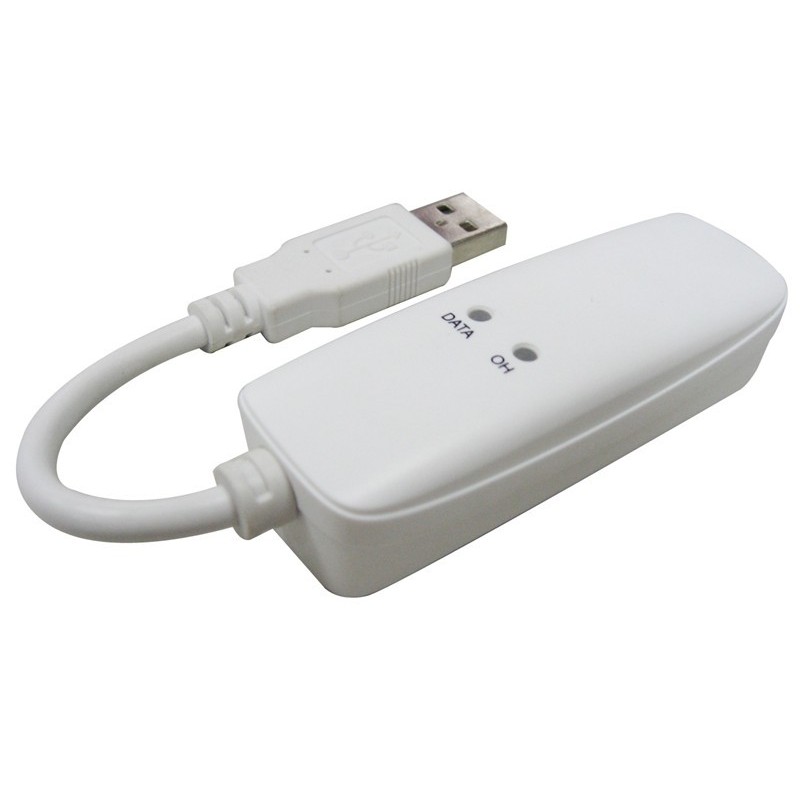

External 56K modem for USB, For data and fax use over analog telephone line
External 56K modem for USB, For data and fax use over the telephone network EOL last pcs. in stock

56K USB modem
1 x USB
1 x RJ11
Plug & Play
Downstream speed 56kbps
Upstream op til 33.6kbps
OS support: Windows XP 32/64, Vista 32/64, Win7 32/64, Win10, Mac OS10

320.00 SEK
Item Number: MODEM-USB56K
Physically in stock
ADD TO CART
Quick view

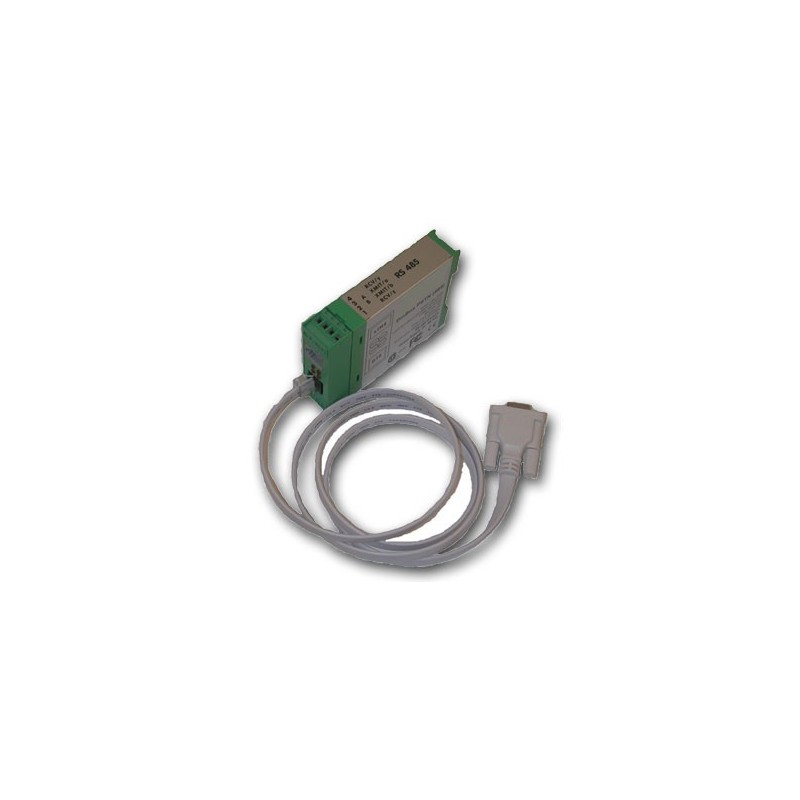

Analogt 56K modem til RS232 / RS485 seriel portforModems
Analogt 56K modem til RS232 / RS485 seriel port

Eksternt 56K modem til seriel port.
Vælg mellem RS232 og RS485
Industritype til DIN skinne
10 - 40 VDC - strømforsyning tilkøbes

5,308.80 SEK
Item Number: MOD-K56DIN
ADD TO CART
Quick view
4 x Modem, 56kbps, FAX, PCIE
MULTI-4MP/PCIE 4 x Modem, 56kbps, FAX, PCIE

Please note this product is EOL and of older vintage. We only recommend it to users who have experience with old analogue model/telephone technology.

If you don't have experience with the older technology, don't jump into it, that's our recommendation.

4,800.00 SEK
Item Number: MULTI4MP-PCIE
Physically in stock
ADD TO CART
Quick view

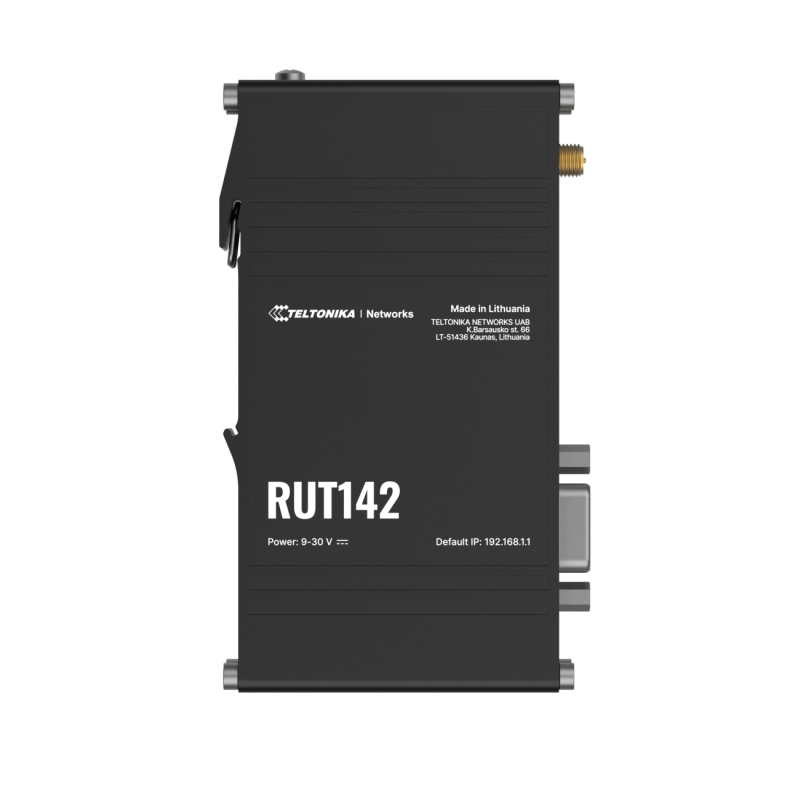

Industrial RS232 Router with Wi-Fi 4 and 2x Ethernet
Industrial RS232 Router with Wi-Fi 4 and 2x Ethernet

Industrial RS232 router

2 x 10/100 Mbps Ethernet

RS232 serial port, DB9

Wi-Fi 4 access point / STA

Modbus, DNP3, OPC UA

VPN: OpenVPN, IPsec

WireGuard VPN support

Firewall, VLAN, QoS

9–30 VDC input, pass. PoE

DIN-rail mounting bracket

Aluminium housing, IP30

Operating temp -40–75 °C

Call +45 56 66 20 20 for price
Item Number: ROUTER4G-RS232-142
ADD TO CART
Quick view

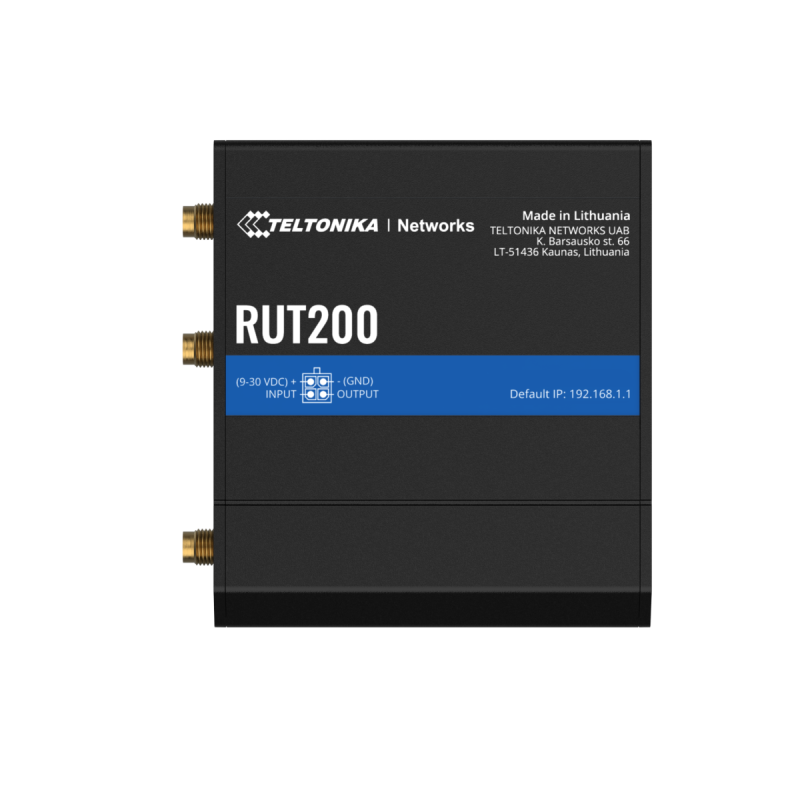

Industrial 4G LTE Router with Wi-Fi and 2x Ethernet
